Summary of Contents for Yazoo/Kees KIKW48150

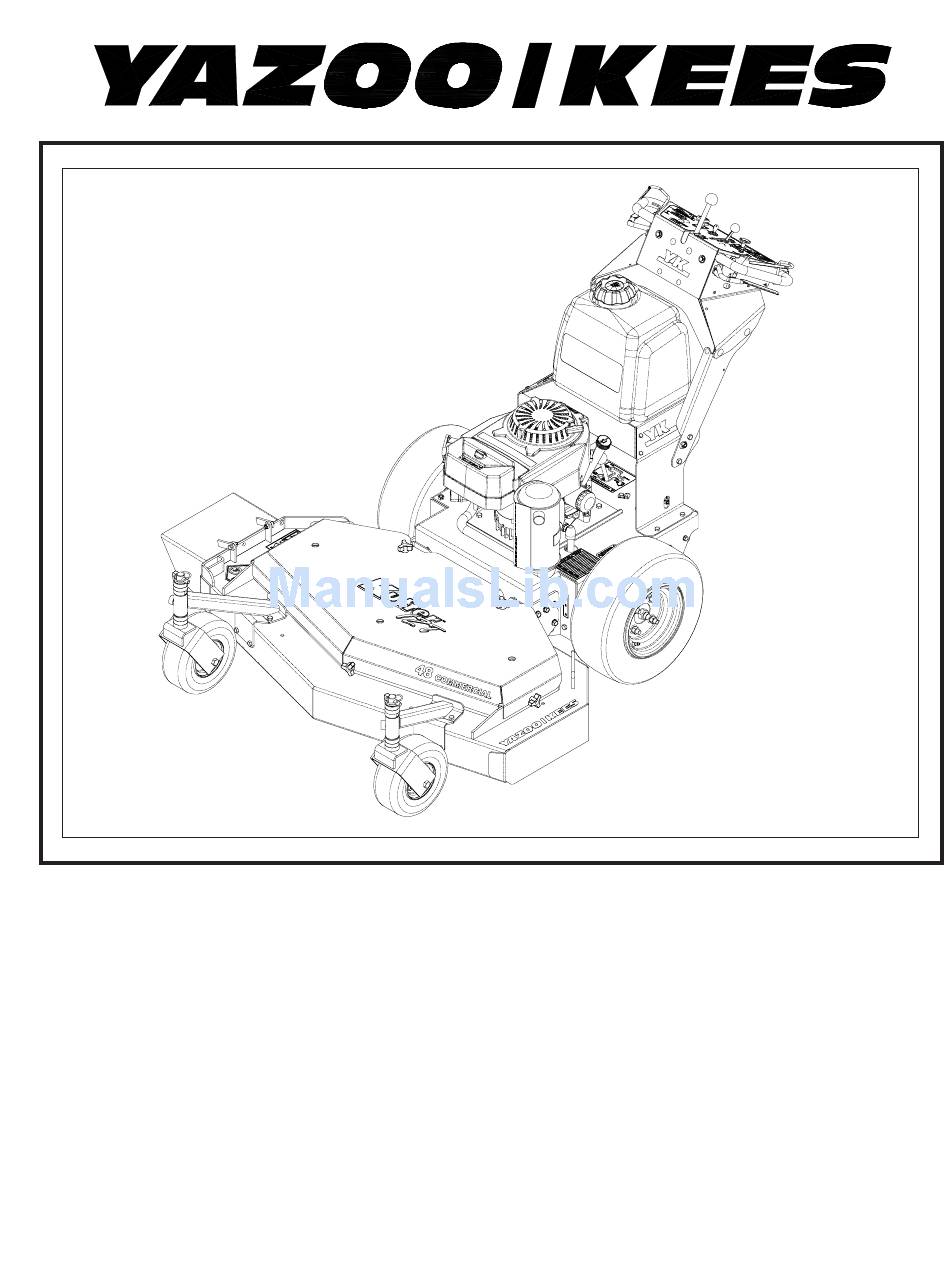

Page 1
Parts manual Models: KIKW36150 KIKW48150 KIKW48170 MANUAL NO. 110568 REV. 05 (09/15/04)
Page 2
MODEL NUMBER _______________________________ SERIAL NUMBER _______________________________ DATE PURCHASED _____________________________ DEALER ADDRESS _____________________________ NOTES: ©2004 Yazoo/Kees Power Equipment. All rights reserved. Beatrice, NE. Printed in U.S.A.
Page 3: Table Of Contents
CONTENTS POWER UNIT ... 4-5 INTERGRADED ZEROTURN TRANSAXLE (IZT) ... 6-7 HANDLE ASSEMBLY ... 8-9 15 HP & 17 HP ENGINES ... 10-11 CASTER ASSEMBLY ... 12-13 36” DECK ASSEMBLY ... 14-15 48” DECK ASSEMBLY ... 16-17 NOTE: ALL FASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.
Page 4: Power Unit
POWER UNIT 21 33 REF. REF.
Page 5
ITEM PART NO. QTY. 1 ... 110571 ... 1 ... REAR DECK W/ ... DECALS 2 ... 109102 ... 1 ... SKID PLATE, RIGHT 3 ... 109101 ... 1 ... SKID PLATE, LEFT 4 ... 109026 ... 1 ... NUT PLATE, LEFT 5 ...
Page 6: Intergraded Zeroturn
(Intergraded Zeroturn Transaxle)
Page 7
(Intergraded Zeroturn Transaxle) ITEM PART NO. QTY. 1 ... 111018 ... 1 ... IZT, LEFT (AFTER SERIAL NO. 042627905) ... 109000 ... 1 ... IZT, LEFT (BEFORE SERIAL NO. 042627905) 2 ... 111019 ... 1 ... IZT, RIGHT (AFTER SERIAL NO. 042627905) ...
Page 8: Handle Assembly
HANDLE ASSEMBLY...
Page 9
HANDLE ASSEMBLY ITEM PART NO. QTY. 1 ... 110577 ... 1 ... HANDLE W/DECALS 2 ... 109594 ... 1 ... DRIVE LEVER, LEFT 3 ... 109593 ... 1 ... DRIVE LEVER, RIGHT 4 ... 109120 ... 2 ... SUPPORT ... BRACKET 5 ...
Page 10: Hp & 17 Hp Engines
15 HP and 17 HP ENGINE KAWASAKI...
Page 11
15 HP and 17 HP ENGINE KAWASAKI ITEM PART NO. QTY. DESCRIPTION 1 ... 109639 ... 1 ... PULLEY 2 ... 101995 ... 1 ... KEY, 1/4” SQ. X 1 1/8” 3 ... 108266 ... 1 ... WASHER, 3/8 INTERNAL TOOTH 4 ...
Page 12: Caster Assembly
CASTER ASSEMBLY...
Page 13
CASTER ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 1 ... 110581 ... 1 ... CASTER ARM W/BUSHINGS 2 ... 109062 ... 1 ... CASTER FORK 3 ... 104556 ... 1 ... WHEEL ASSEMBLY 4 ... 101905 ... 1 ... TIRE 5 ... 104618 ... 1 ... RIM 6 ...
Page 14: 36" Deck Assembly
36” DECK ASSEMBLY LARGER OFFSET HUB MUST BE TO THE TOP THIS SURFACE SITS ON TOP OF SPINDLE REF.
Page 15: Deck Assembly
25 ... 109051 ... 1 ... DECK SLIDE, LEFT 26 ... 913010 ... 1 ... DECAL, CPSC 27 ... 105746 ... 1 ... DECAL, EURO ... SEVERING 28 ... 103420 ... 1 ... DECAL, YAZOO/KEES 29 ... 101537 ... 1 ... DECAL, 36 DESCRIPTION ITEM PART NO.
Page 16: 48" Deck Assembly
48” DECK ASSEMBLY LARGER OFFSET HUB MUST BE TO THE TOP THIS SURFACE SITS ON TOP OF SPINDLE REF.
Page 17: Deck Assembly
24 ... 976998 ... 3 ... ZERK 25 ... 102063 ... 1 ... DECAL, ... COMMERCIAL 26 ... 103420 ... 1 ... DECAL, YAZOO/KEES 27 ... 105746 ... 1 ... DECAL, EURO ... SEVERING 28 ... 913010 ... 1 ... DECAL, CPSC 29 ...
