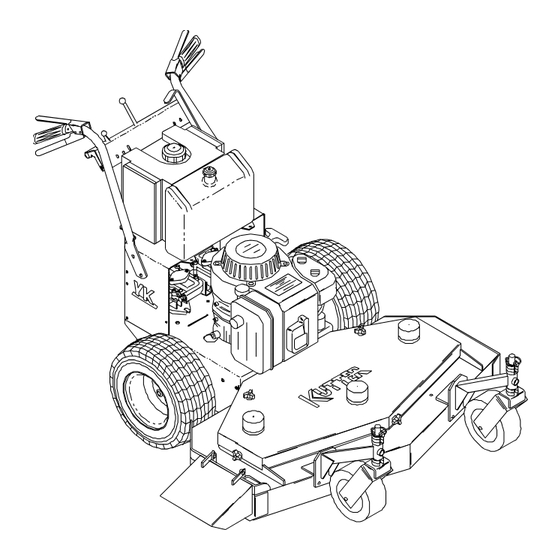

Operator's Manual for
MODELS: KHKW36140
KHKW48170
Professional Quality Lawn Care Equipment
since 1945
Thank you for buying a YAZOO/KEES! Before operating your new mower, read, understand
and follow the important safety instructions and the other instructions contained in this manual.
Lawnmowers and all power equipment, can be potentially dangerous if used improperly.
SAFETY REQUIRES GOOD JUDGEMENT, CAREFUL USE IN ACCORDANCE WITH
INSTRUCTIONS AND COMMON SENSE.
MANUAL 102221 REV. 02(06/28/00)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KHKW36140, KHKW48170 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yazoo/Kees KHKW36140, KHKW48170

Summary of Contents for Yazoo/Kees KHKW36140, KHKW48170

  • Page 1 Professional Quality Lawn Care Equipment since 1945 Thank you for buying a YAZOO/KEES! Before operating your new mower, read, understand and follow the important safety instructions and the other instructions contained in this manual. Lawnmowers and all power equipment, can be potentially dangerous if used improperly.
  • Page 2 Congratulations on the purchase of your Yazoo/Kees mower. This manual has been pre- pared for the owners and operators of the Hydro Kutter™ 36" and 48" commercial mowers. Read, understand and follow the saftey and operating instructions. Failure to follow cautious operating practices can result in serious injury to the operator or other persons.

  • Page 3: Setup And Adjustments

    SAFETY: 1. Training 2. Preparation 3. Operation 4. Transportation 5. Maintenance SETUP AND ADJUSTMENTS: 1. Cutting height 2. Motion control linkage 3. Reverse spring detent 4. Blade belts 5. Engine belt guides 6. Pump belt 7. Safety interlock system OPERATING INSTRUCTIONS: 1.

  • Page 4: Operation

    SAFETY TRAINING: 1. Read this manual carefully and question your dealer if something is not clear. 2. Be thoroughly familiar with the controls and proper use of the equipment. 3. Never allow children, teenagers, or people unfamiliar with these instructions to use the mower.

  • Page 5: Maintenance

    5. Have your mower inspected and serviced each year by an authorized Yazoo/Kees dealer. 6. Use only authentic Yazoo/Kees replacement parts to insure the safety and quality of your mower is maintained. 7. Safety decals should be replaced if they are missing or illegible. Decals can be purchased from your Yazoo/Kees dealer.
  • Page 6 d. Reinstall the bottom two bolts on both sides.(A tapered punch may be needed to help align the holes.) e. Retighten all four bolts both sides and remove jack. 5. Using the chart(on page 7), find the correct number of spacers to be placed under the caster swivel.(see fig.

  • Page 7: Motion Control Adjustment

    CUTTING HEIGHT ADJUSTMENT CHART USE ONLY 4 BLADE SPACERS MAXIMUM MOTION CONTROL ADJUSTMENT 1. This adjustment must be made with the drive wheels rotating. Raise rear of the unit and block it up so the wheels are free to rotate. CAUTION: Keep hands, feet and clothing away from rotaing tires.

  • Page 8: Reverse Spring Detent Adjustment

    8. Turn the short linkage the proper direction in the swivel, so that when the thumb latch is engaged the wheel doesn’t turn(or it is in neutral). Reinstall the hairpins and repeat on other side. (see fig. 3) 9. After these adjustments have been made it will be necessary to adjust the reverse detent.(See reverse spring detent adjustment) REVERSE SPRING DETENT ADJUSTMENT 1.

  • Page 9: Blade Drive Belt Adjustment

    BLADE DRIVE BELT ADJUSTMENT 1. Before performing adjustments on blade belt, turn the mower off and disconnect spark plug wire or wires. 2. Remove front deck belt shield. 3. Loosen nut on turnbuckle. 4. Set belt tension when blade engagement lever is in the engaged position. 5.

  • Page 10: Engine Belt Guides

    1. Before performing adjustments on belt guides, turn the mower off and disconnect spark plug wire or wires. 2. Belt guides under the engine should be adjusted as shown in figure 6. 1. Before performing adjustments on pump belt, turn the mower off and disconnect spark plug wire or wires.
  • Page 11 OPERATING INSTRUCTIONS CONTROLS: 1. Be thoroughly familiar with all controls their function and how to operate them before operating the mower. 2. Control levers: Located on each side of the handle control direction of movement. The left lever controls the flow of oil from the left hydro pump to the left wheel motor. The right lever controls the flow of oil from the right hydro pump to the right wheel motor.

  • Page 12: Starting And Operation

    STARTING AND OPERATION: 1. Making sure the blades are disengaged, ground speed lever in neutral, the thumb latches locked, and the fuel valve on. 2. Adjust throttle to choke (if needed) turn key to on position. 3. Pull start the engine. Once the engine is running adjust the throttle. 4.
  • Page 13 Clean around the filter and the drain plug on the bottom side of the tank. Remove the filter and allow any oil to drain from the filter head. Then replace with new filter. Use only Yazoo/Kees p/n 102606, filter which has a bypass valve and the correct micron filter. Remove one of the hydraulic lines from the bottom of the tank and allow the tank to drain, reinstall the hydraulic line.
  • Page 14 CUTTER HOUSING SPINDLE ASSEMBLYS The cutter housing assembly is designed with a slip fit inner race and pulley. The sole purpose of the setscrew in the pulley is to hold the housing assembly together. The setscrew is not ment to secure the pulley. The pulley is secured by pinching the pulley to the inner race of the bearings using the blade bolt and nut.

  • Page 15: Troubleshooting

    PROBLEM Engine won’t start Mower will not move or moves slowly or hard Blades won’t engage Uneven cut Cut is ragged Mower moves when in neutral position Mower pulls left or right When a problem occurs, do not overlook the simple causes. TROUBLE SHOOTING POSSIBLE CAUSES 1.

  • Page 16: Service Record

    SERVICE RECORD DESCRIPTION OF WORK DONE SERVICE DONE BY DATE...
  • Page 17 Peerless model 700 transmissions (first ninety days warranted by Peerless, remainder by Yazoo/Kees). In the event that any Yazoo/Kees Product warranted hereunder shall be defective or fail to conform with this limited warranty, Yazoo/Kees shall, subject to the provisions hereof, pay for, or provide labor and materials for, the repair or replacement of such defective Yazoo/ Kees Product.
  • Page 18 AGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. This warranty is not subject to change or modification by anyone, including Yazoo/Kees dealers or distributors, and no Yazoo/Kees dealer or distributor is authorized to make any representations on behalf of Yazoo/Kees Power Equipment.

This manual is also suitable for:

Khkw48170

Table of Contents

Save PDF
