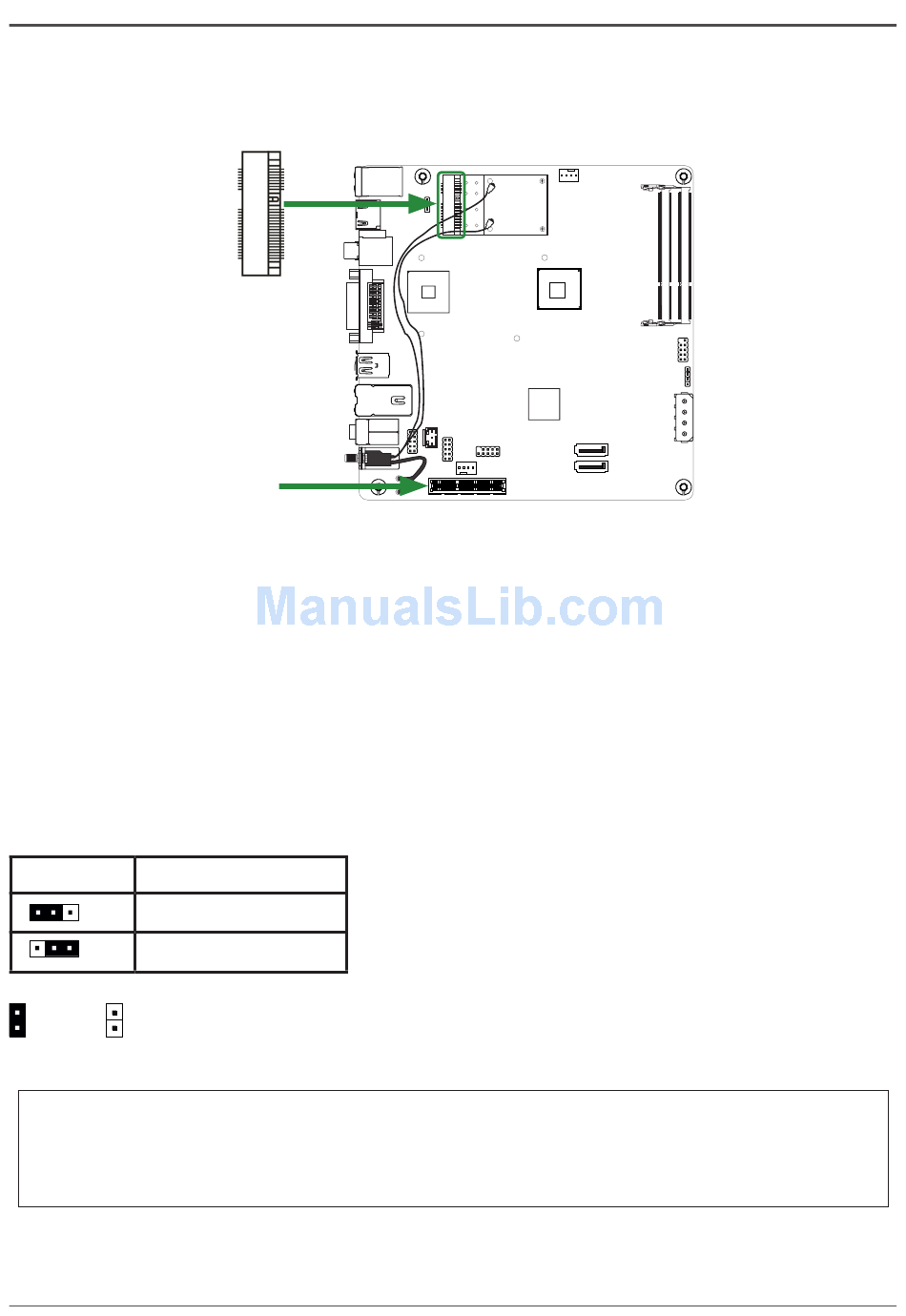

Expansion slots

The motherboard contains two expansion slots, including one Mini PCIe slot and one PCIe x4
slot.
Mini PCI Express Slot-Mini_PCIEX1
There is one Mini PCI Express slot, reserved for the WiFi Module.
PCI Express x4 Slot-PCIE1
There is one PCI Express x4 slot providing single lane signal, which accommodates less band-
width intensive devices, such as LAN card, sound card, etc.

Jumper Settings

This chapter explains how to configure the motherboard's hardware. Before using your
computer, make sure all jumpers and DRAM modules are set correctly. Refer to this section
whenever in doubt.
CMOS Clear Jumper-JP1
JP1
1-2* Normal*
1
1 2-3 CMOS Clear
Close Open
If you want to clear the system configuration, use the JP1 (Clear CMOS Jumper) to clear data.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. If the CPU is frequency multiplier locked, no CPU speed change will be seen even if the
frequency multiplier setting in CMOS setup is changed.
1 2
51 52
Mini_PCIEX1
PCIE1
Selection
* = Default setting.
Hardware Installation
17
