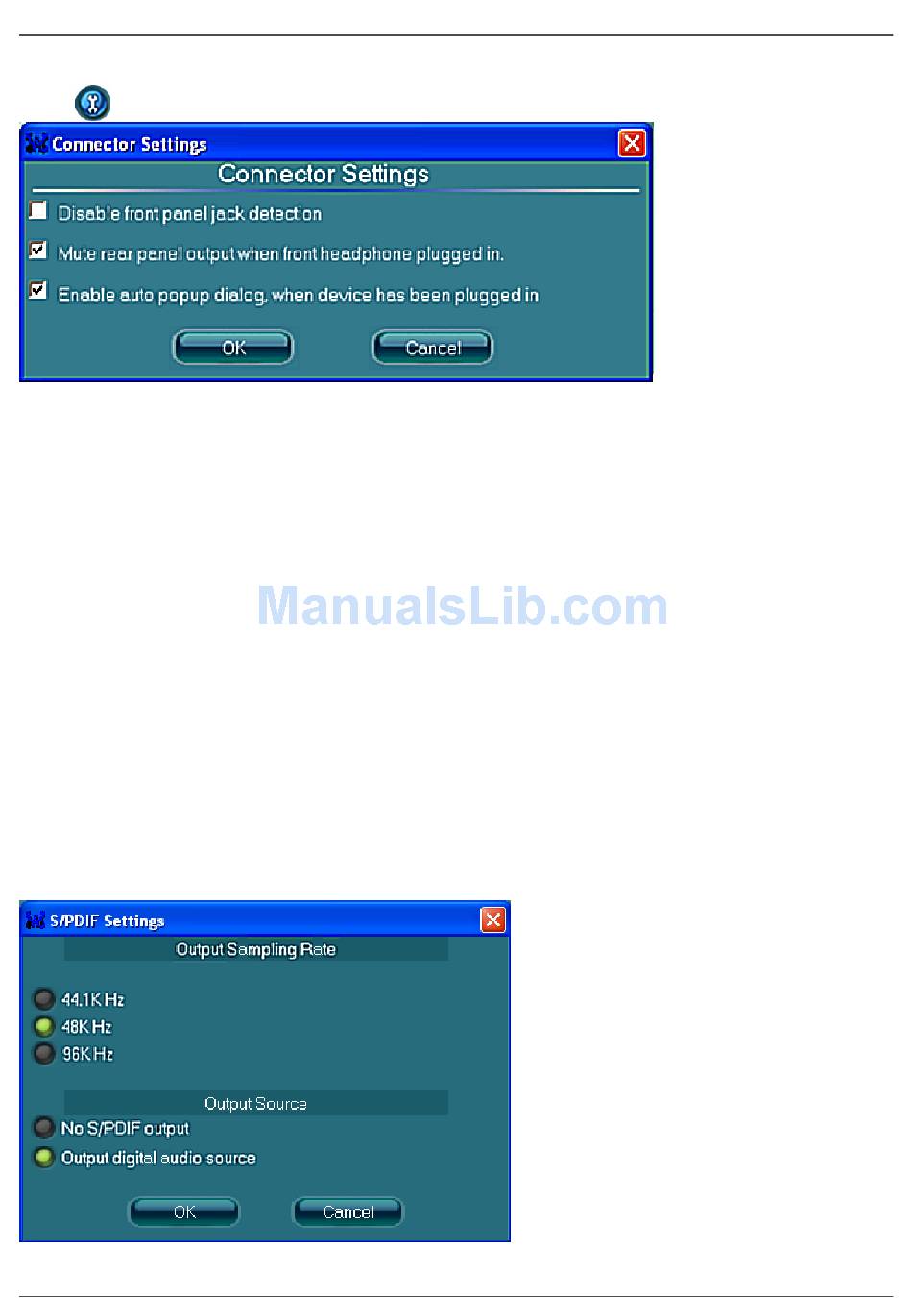

Connector Settings

Click to access connector settings
Mute rear panel when front headphone plugged in
√
Once this option is checked, when front headphone is plugged, the music that is
playing from the back panel, will be stopped.
Disable front panel jack detection (option)
√
Did not find any function on front panel jacks?
Please check if front jacks on your system are so-called AC'97 jacks. If so,
please check this item to disable front panel jack detection.
Enable auto popup dialogue, when device has been plugged in.
√
Once this item checked, the dialog "Connected device" would automatically pop up
when device plugged in.
S/PDIF
Short for Sony/Philips Digital Interface, a standard audio file transfer format. S/PDIF
allows the transfer of digital audio signals from one device to another without having
to be converted first to an analog format. Maintaining the viability of a digital signal
prevents the quality of the signal from degrading when it is converted to analog.
40
