Intel
NM10-ITX series Motherboard
®

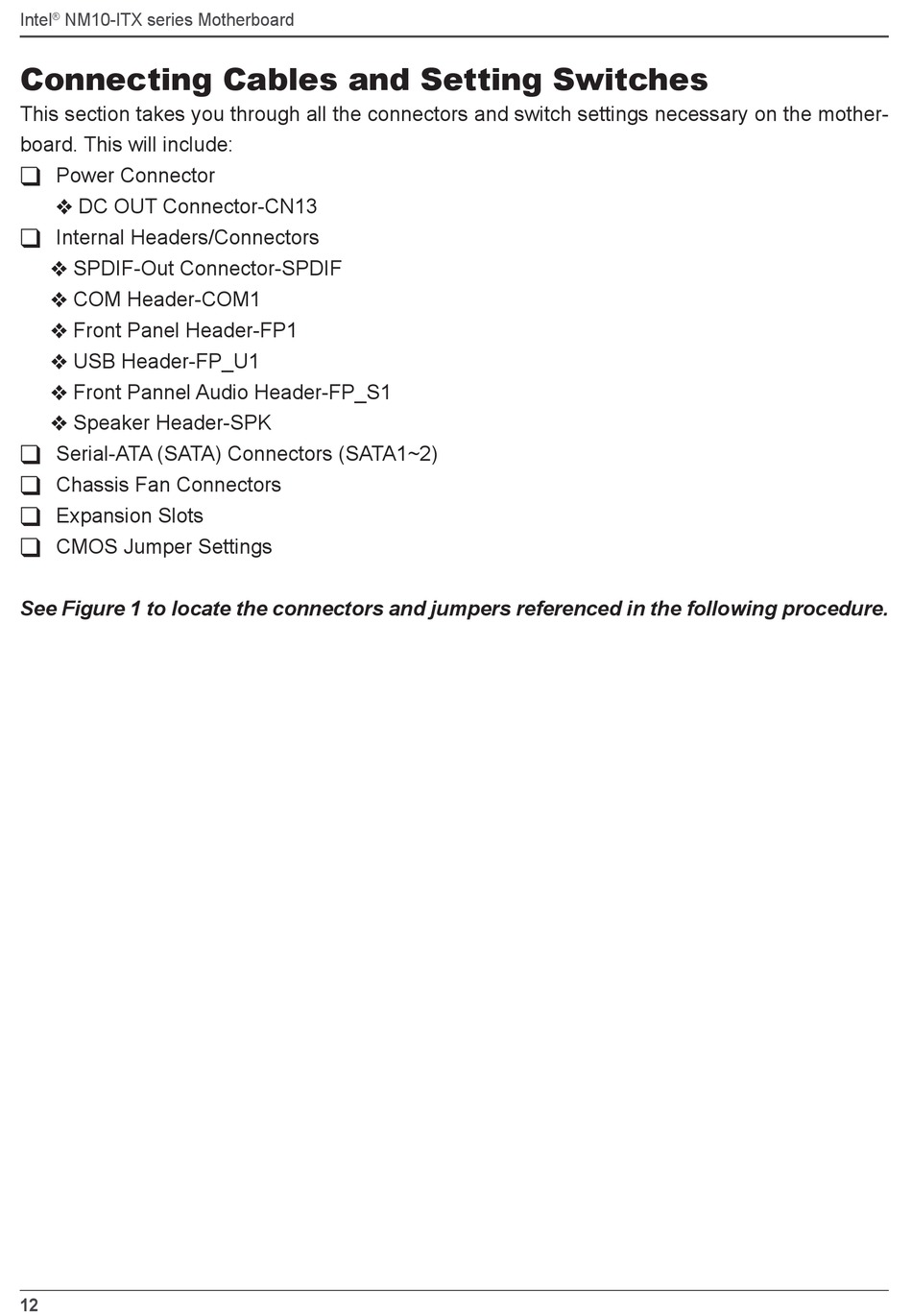

Connecting Cables and Setting Switches
This section takes you through all the connectors and switch settings necessary on the mother-
board. This will include:
q Power Connector
v DC OUT Connector-CN13
q Internal Headers/Connectors
v SPDIF-Out Connector-SPDIF
v COM Header-COM1
v Front Panel Header-FP1
v USB Header-FP_U1
v Front Pannel Audio Header-FP_S1
v Speaker Header-SPK
q Serial-ATA (SATA) Connectors (SATA1~2)
q Chassis Fan Connectors
q Expansion Slots
q CMOS Jumper Settings
See Figure 1 to locate the connectors and jumpers referenced in the following procedure.
12
