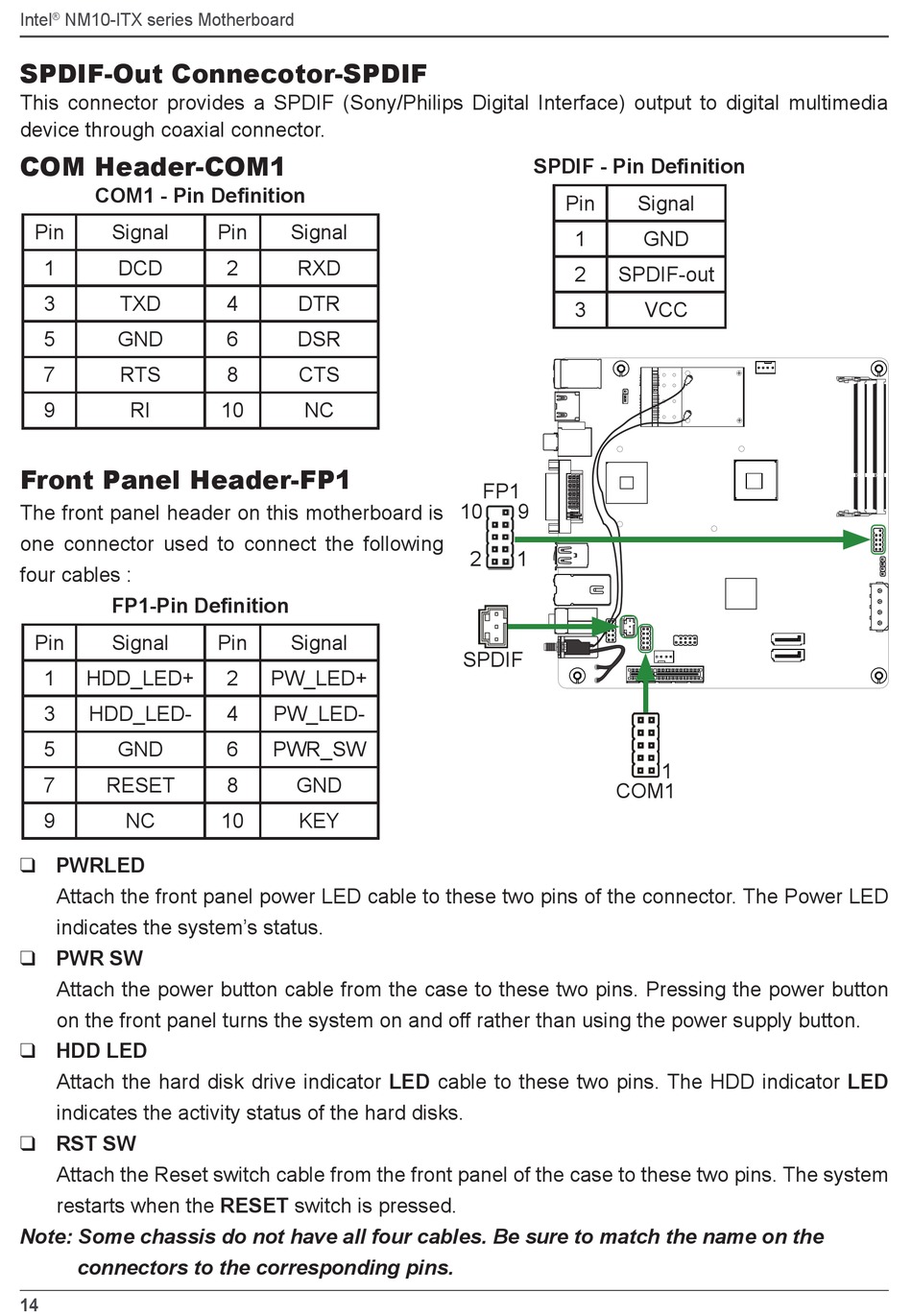

SPDIF-Out Connecotor-SPDIF
This connector provides a SPDIF (Sony/Philips Digital Interface) output to digital multimedia
device through coaxial connector.

COM Header-COM1

COM1 - Pin Definition
Pin Signal
1 DCD
3 TXD
5 GND
7 RTS
9 RI

Front Panel Header-FP1

The front panel header on this motherboard is
one connector used to connect the following
four cables :
FP1-Pin Definition
Pin Signal
1 HDD_LED+
3 HDD_LED-
5 GND
7 RESET
9 NC
q PWRLED
Attach the front panel power LED cable to these two pins of the connector. The Power LED
indicates the system's status.
q PWR SW
Attach the power button cable from the case to these two pins. Pressing the power button
on the front panel turns the system on and off rather than using the power supply button.
q HDD LED
Attach the hard disk drive indicator LED cable to these two pins. The HDD indicator LED
indicates the activity status of the hard disks.
q RST SW
Attach the Reset switch cable from the front panel of the case to these two pins. The system
restarts when the RESET switch is pressed.
Note: Some chassis do not have all four cables. Be sure to match the name on the
connectors to the corresponding pins.
14
Pin Signal
2 RXD
4 DTR
6 DSR
8 CTS
10 NC
Pin Signal
2 PW_LED+
4 PW_LED-
6 PWR_SW
8 GND
10 KEY
SPDIF - Pin Definition
Pin
1
2 SPDIF-out
3
FP1
10 9
2 1
SPDIF
COM1
Signal
GND
VCC
1
