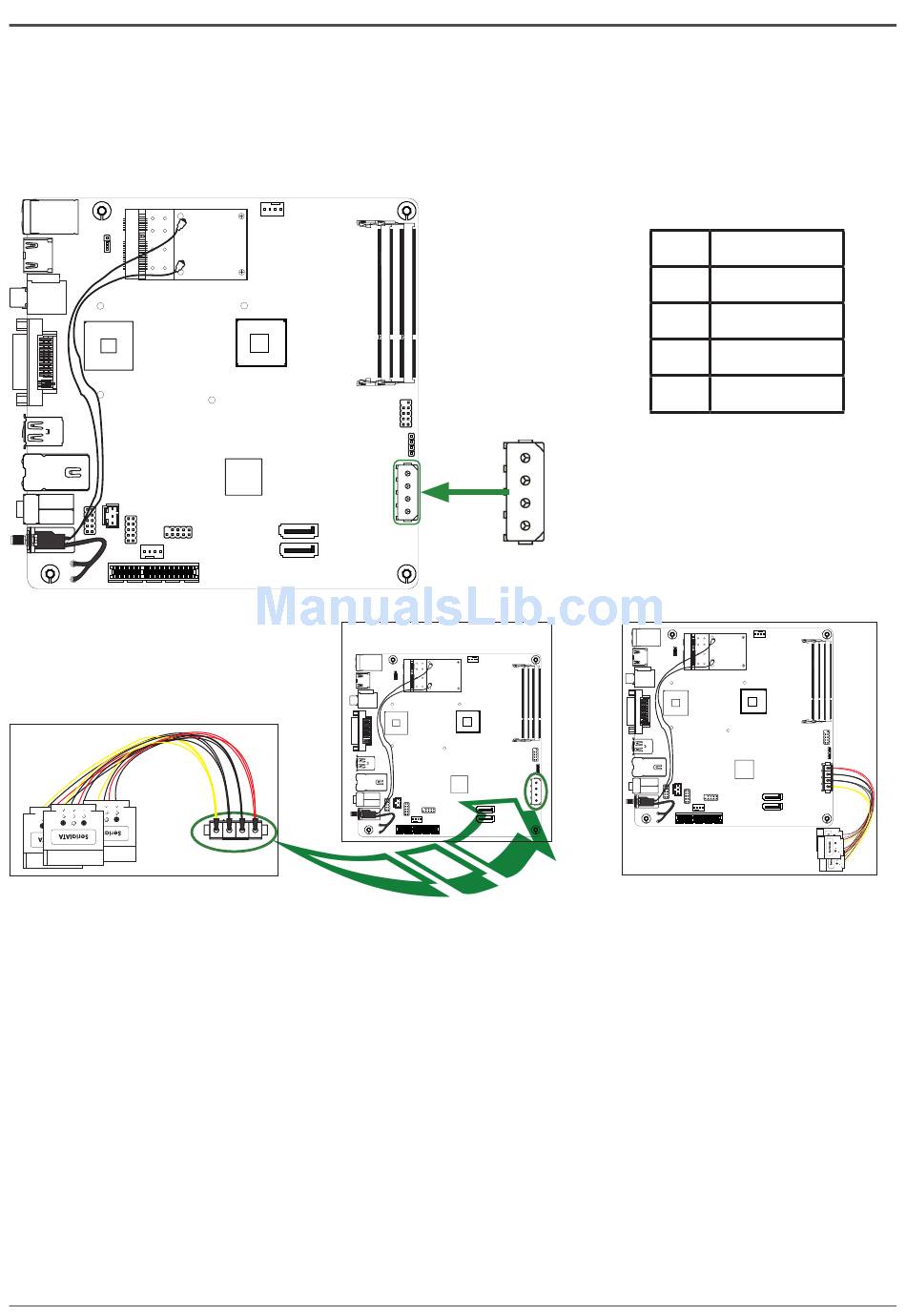

DC OUT Connector-CN13
This motherboard can supply the power to SATA devices with a SATA power cable.
Users can plug a SATA power cable (as picture 7) to the DC out connector (as picture
8). Picture 9 is the final image.
1
7
CN13-Pin Difinition
PIN
1
CN13
8
9
Hardware Installation
Assignment
1
12V
2
GND
3
GND
4
5V
13
