Speaker Header-Spk; Fan Connectors; Serial-Ata (Sata) Connectors (Sata1~2) - Zotac IONITX-U series User Manual

Intel NM10-ITX series Motherboard
®
Control
Sense
+12V
GND

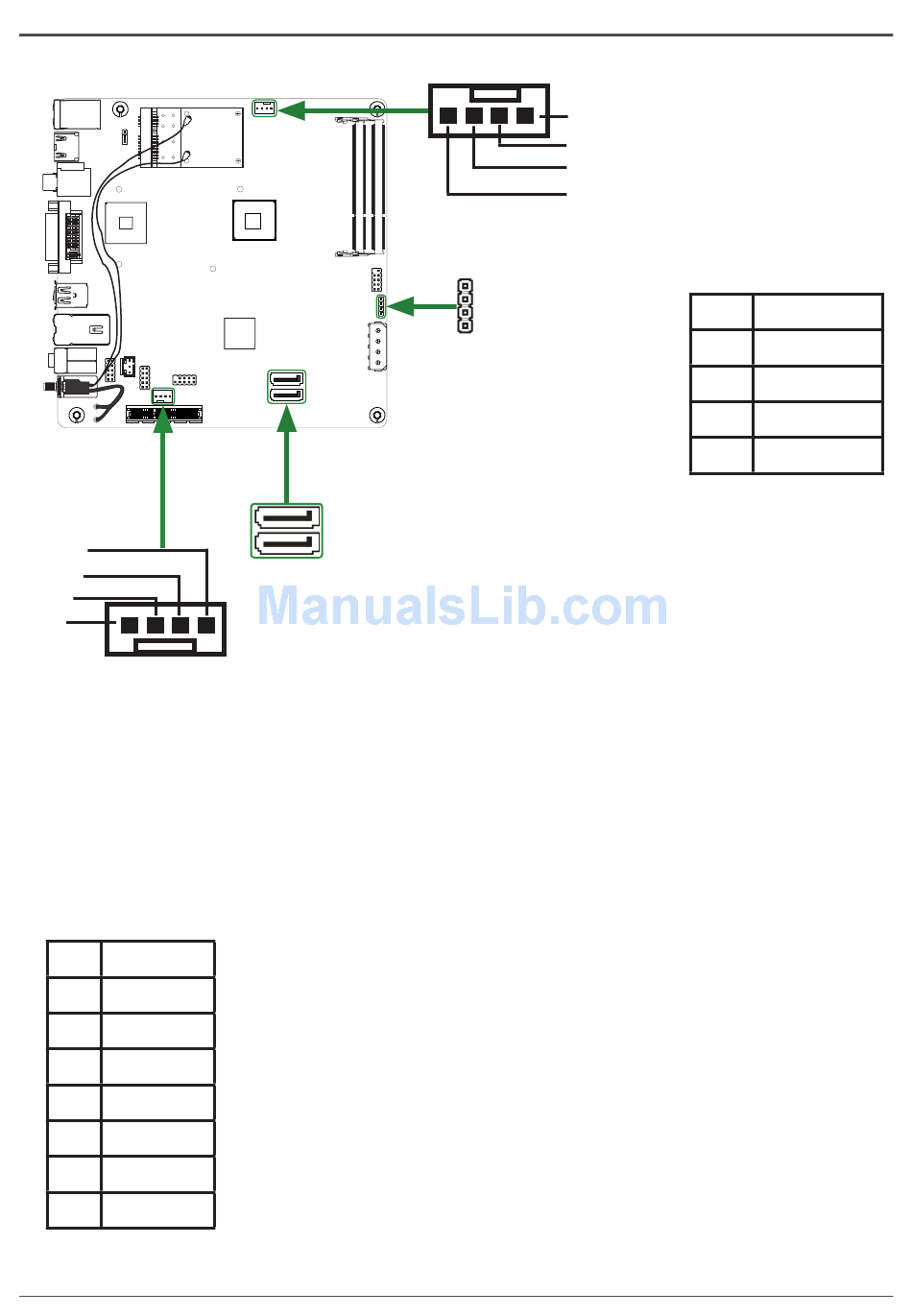

System FAN Connector
Serial-ATA (SATA) Connectors (SATA-1~2)
The Serial ATA connector is used to connect the Serial ATA device to the motherboard. These
connectors support the thin Serial ATA cables for primary storage devices. The current Serial ATA
interface allows up to 300 MB/s data transfer rate. There are two serial ATA connectors on the
motherboard that support AHCI configuration.
SATA-Pin Definition
Pin Signal
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
16
CPU FAN Connector
1
SPK
SATA-2
SATA-1
GND
+12V
Sense
Control

Speaker Header-SPK

SPK-Pin Definition
PIN
1
2
3
4

Fan Connectors

There are two fan connectors on
the motherboard, including system
fan connector-SYS_FAN and CPU
fan connector-CPU_FAN.
Assignment
VCC
NC
NC
SPK-
