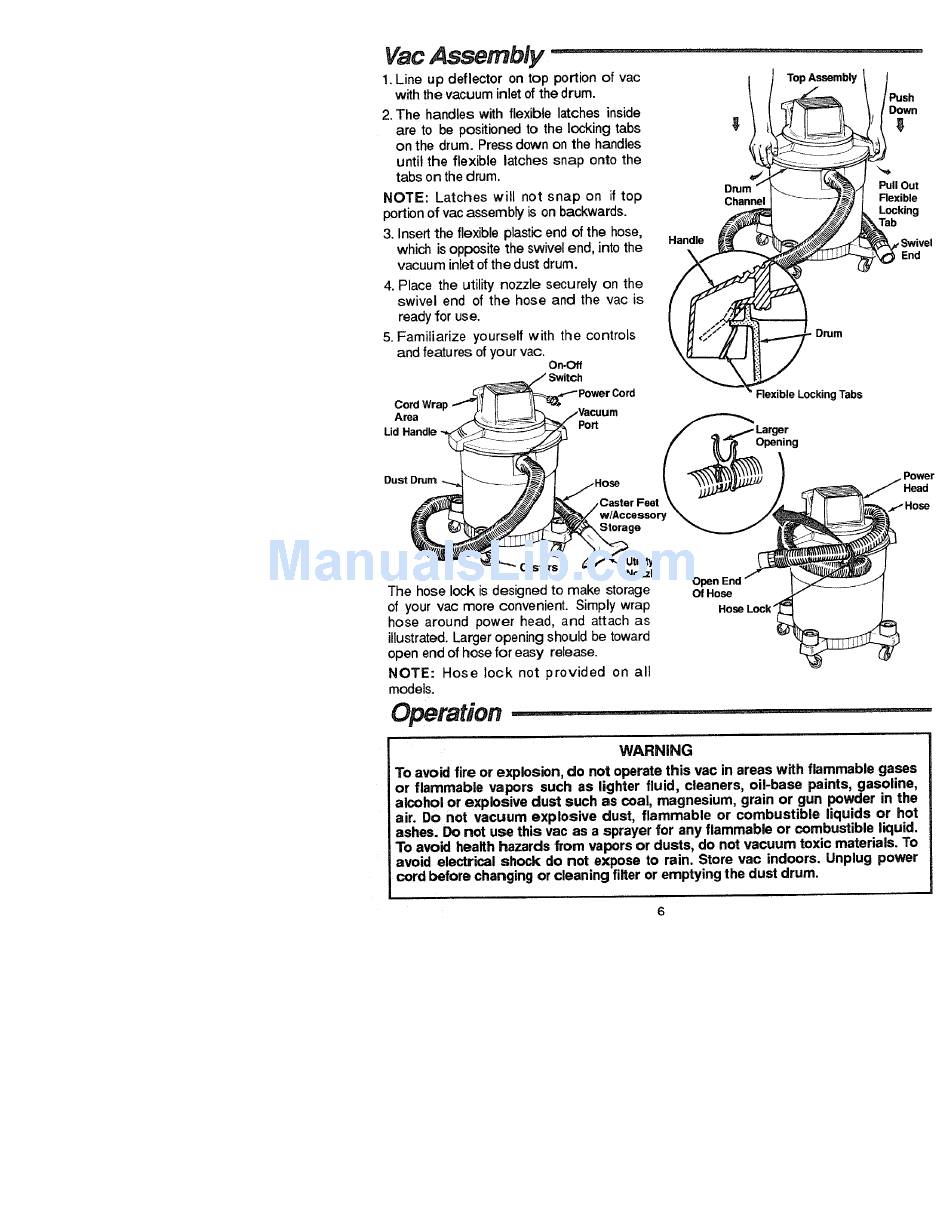

Vac AssembOy
...........................
1. Line up deflector on top portion of vac
with the vacuum inlet of the drum.
2. The handles with flexible latches inside
are to be positioned to the locking tabs
on the drum. Press down on the handles
until the flexible latches snap onto the
tabs on the drum.
NOTE:
Latches
will not snap on if top
portion of vac assembly is on backwards.
3. Insert the flexible plastic end of the hose,
which _ opposite the swJveJend, Jnto the
vacuum inlet of the dust drum.
4. Place the utility nozzle securely on the
swivel end of the hose and the vac is
ready for use.
5. Familiarize
yourself with the controls
and features of your vac.
On-Off
Cord Wrap
Area
Drum
Channel
Handle
TopAseem/_/
Do
_
Drum
Rexible Locking Tabs
Pull (
Flexil
Lock
Tab
Opening
Dust Drum
Casters
Nozzle
Open
The hose lock is designed to make storage
of Hose
of your vac more convenient.
Simply wrap
HoseLock"
hose around power head, and attach as
illustrated. Larger opening should be toward
open end of hose for easy release.
NOTE:
Hose lock not provided
on all
models.
Operation ...................................
WARNING
To avoid fire or explosion,do not operatethis vac in areas with flammable gas
or flammable vapors such as lighter fluid, cleaners, oil-base paints, gasolir
alcohol or explosive dust such as coal, magnesium, grain or gun powder in t
air. Do not vacuum explosive dust, flammable or combustible liquids or h
ashes. Do not use this vac as a sprayer for any flammable or combustible liqu
To avoid health hazards from vaporsor dusts, do not vacuum toxic materials.
avoid electrical shock do not expose to rain. Store vac indoors. Unplug pow
cord before changingor cleaning filter or emptyingthe dust drum.
