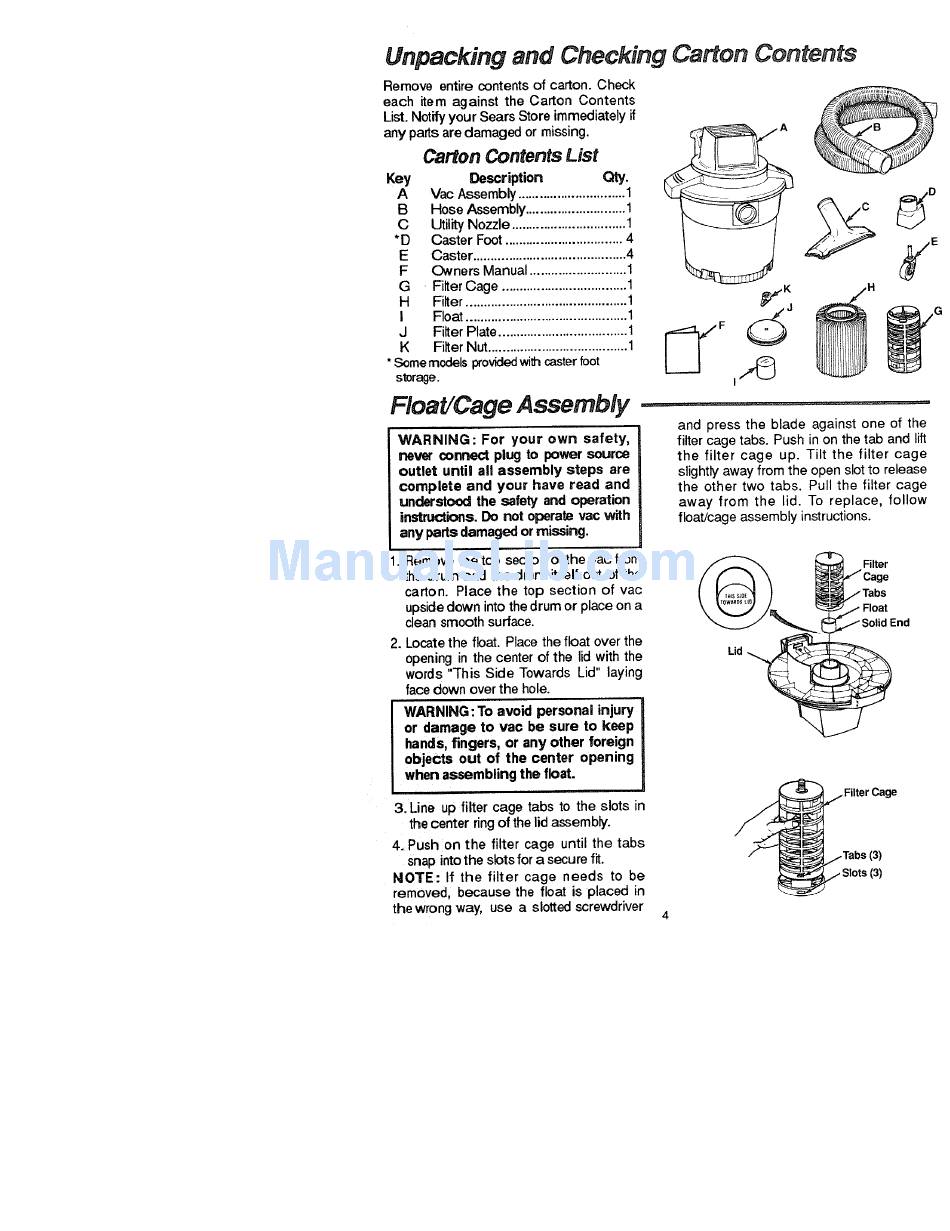

Unpacking and Checking Carton Contents
Remove entire contents of carton. Check
each item against the Carton Contents
List. Notify your Sears Store immediately if
any parts are damaged or missing.
Carton Contents List
Key
Description
Qty.
A
Vac Assembly .............................. 1
B
Hose Assembly ............................ 1
C
UtilityNozzle ................................ 1
*D
Caster Foot ................................. 4
E
Caster ........................................... 4
F
Owners Manual ........................... 1
G
Filter Cage ................................... 1
H
Filter............................................. 1
I
Float ............................................. 1
J
Filter Plate .................................... 1
K
Filter Nut....................................... 1
* Some models provided withcasterfoot
storage.
Float/Cage Assembly
WARNING:
For your own safety,
never connect plug to power source
outlet until all assembly steps are
complete and your have read and
understood the safety and operation
instructions. Do not operate vac with
any pads damaged or missing.
V K
i
and press the blade against one of t
filter cage tabs. Push in on the tab and
the filter cage up. Tilt the filter ca
slightly away from the open slot to rele_
the other two tabs. Pull the filter ca
away from the lid. To replace,
foil
float/cage assembly instructions.
• Remove the top section of the vac from
the drum and the drum itself out of the
carton.
Place the top section of vac
upside down into the drum or place on a
dean smooth surface.
2. Locate the float. Place the float over the
opening in the center of the lid with the
words "This Side Towards Lid" laying
face down over the hole.
WARNING: To avoid personal injury
or damage to vac be sure to keep
hands, fingers, or any other foreign
objects out of the center opening
when assembling the float.
__
_
Filter
Cage
_.,,
Tabs
_j//_
_Roat
Lid
3. Line up filter cage tabs to the slots in
the center ring of the lid assembly.
4. Push on the filter cage until the tabs
snap into the slots for a secure fit.
MOTE:
If the filter
cage needs to be
removed,
because the float is placed in
the wrong way, use a slotted screwdriver
(3)
