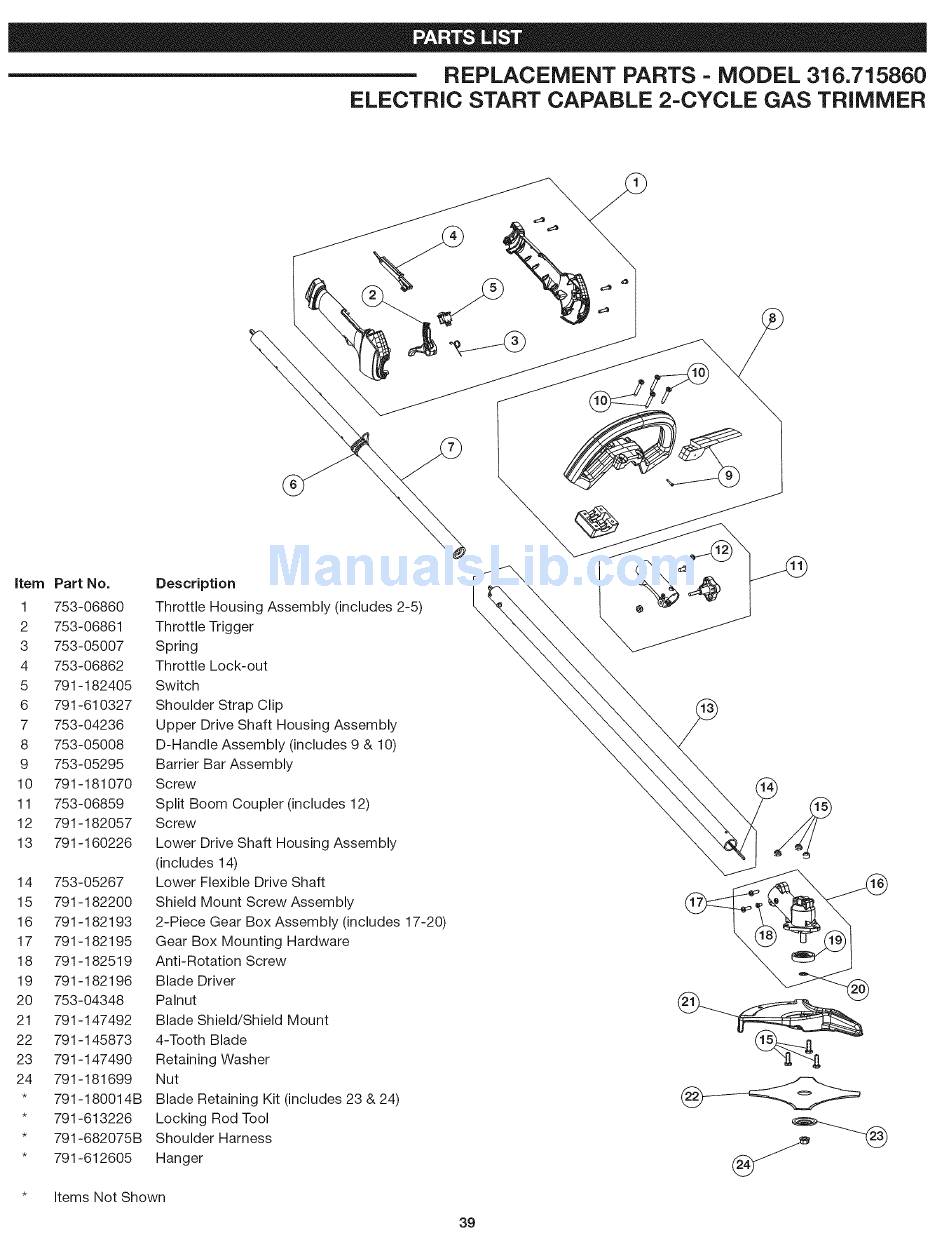

REPLACEMENT
PARTS - MODEL 316.715860
ELECTRIC
START CAPABLE 2-CYCLE
GAS TRIMMER
item Part No.
1
753-06860
2
753-06861
3
753-05007
4
753-06862
5
791-182405
6
791-610327
7
753-04236
8
753-05008
9
753-05295
10
791-181070
11
753-06859
12
791-182057
13
791-160226
14
753-05267
15
791-182200
16
791-182193
17
791-182195
18
791-182519
19
791-182196
20
753-04348
21
791-147492
22
791-145873
23
791-147490
24
791-181699
*
791-180014B
*
791-613226
*
791-682075B
*
791-612605
Description
Throttle Housing Assembly (includes 2-5)
Throttle Trigger
Spring
Throttle Lock-out
Switch
Shoulder Strap Clip
Upper Drive Shaft Housing Assembly
D-Handle Assembly (includes 9 & 10)
Barrier Bar Assembly
Screw
Split Boom Coupler (includes 12)
Screw
Lower Drive Shaft Housing Assembly
(includes 14)
Lower Flexible Drive Shaft
Shield Mount Screw Assembly
2-Piece Gear Box Assembly (includes 17-20)
Gear Box Mounting Hardware
Anti-Rotation
Screw
Blade Driver
Palnut
Blade Shield/Shield Mount
4-Tooth Blade
Retaining Washer
Nut
Blade Retaining Kit (includes 23 & 24)
Locking Rod Tool
Shoulder Harness
Hanger
Items Not Shown
39
