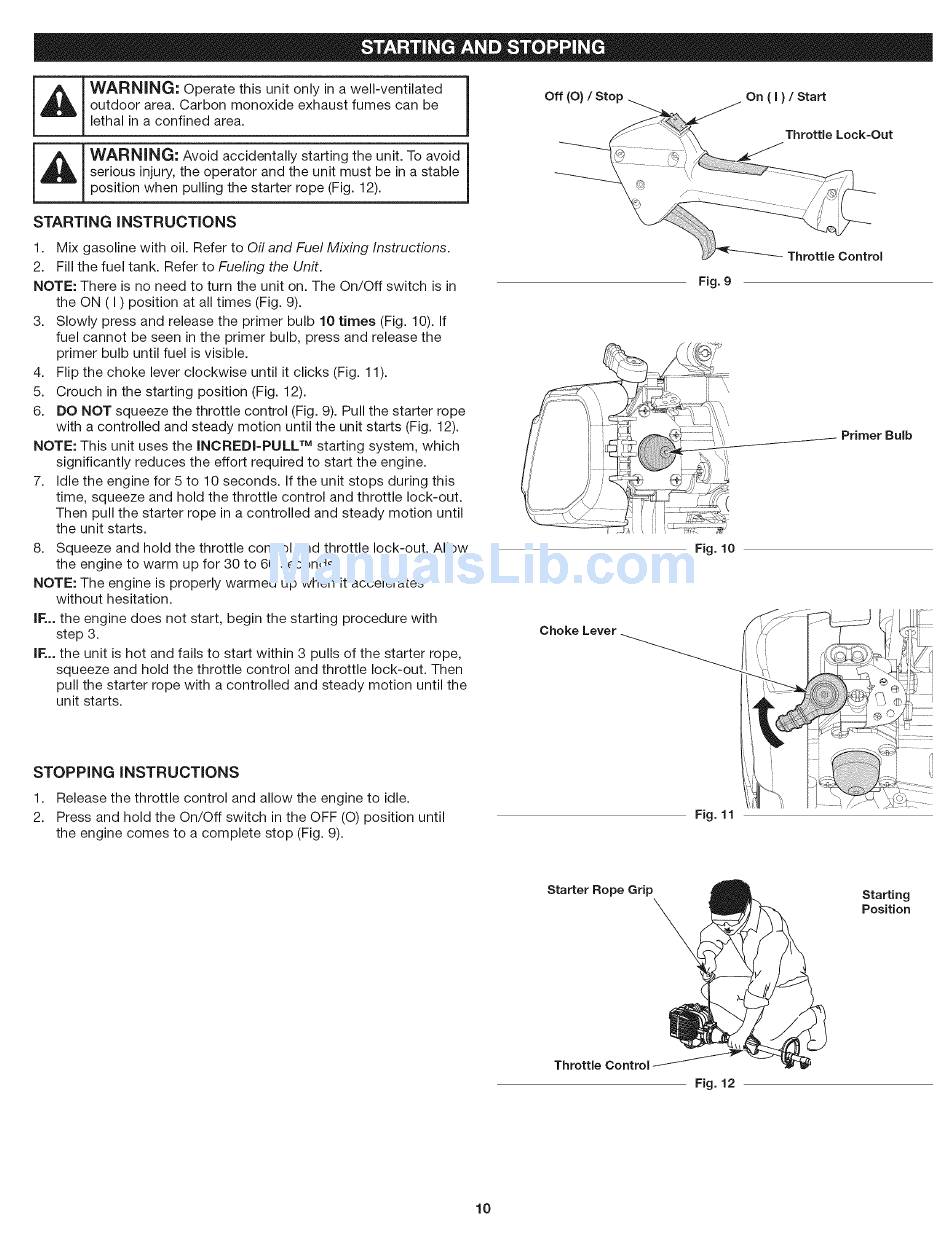

Starting And Stopping - Craftsman Speed start 316.715860 Operator's Manual

2-cycle electric start capable bushwacker brushcutter
Hide thumbs

Advertisement

Table of Contents
I_lib
I WARNING:
Operate this unit only in a well-ventilated
!
outdoor area. Carbon monoxide exhaust fumes can be
lethal in a confined area.
[__J
ARNING:
Avoid accidentally starting the unit. To avoid I
serious injury, the operator and the unit must be in a stable
J
position when pulling the starter rope (Fig. 12).
STARTING
INSTRUCTIONS
1. Mix gasoline with oil. Refer to Oil and Fuel Mixing Instructions.
2. Fill the fuel tank. Refer to Fueling the Unit.
NOTE: There is no need to turn the unit on. The On/Off switch is in
the ON (I) position at all times (Fig. 9).
3. Slowly press and release the primer bulb 10 times (Fig. 10). If
fuel cannot be seen in the primer bulb, press and release the
primer bulb until fuel is visible.
4. Flip the choke lever clockwise until it clicks (Fig. 11).
5. Crouch in the starting position (Fig. 12).
6. DO NOT squeeze the throttle control (Fig. 9). Pull the starter rope
with a controlled and steady motion until the unit starts (Fig. 12).
NOTE: This unit uses the INCREDI-PULL
TM
starting system, which
significantly
reduces the effort required to start the engine.
7. Idle the engine for 5 to 10 seconds. If the unit stops during this
time, squeeze and hold the throttle control and throttle lock-out.
Then pull the starter rope in a controlled and steady motion until
the unit starts.
8. Squeeze and hold the throttle control and throttle lock-out. Allow
the engine to warm up for 30 to 60 seconds.
NOTE: The engine is properly warmed up when it accelerates
without hesitation.
iF... the engine does not start, begin the starting procedure with
step 3.
IF... the unit is hot and fails to start within 3 pulls of the starter rope,
squeeze and hold the throttle control and throttle lock-out. Then
pull the starter rope with a controlled and steady motion until the
unit starts.
STOPPING
iNSTRUCTiONS
1. Release the throttle control and allow the engine to idle.
2. Press and hold the On/Off switch in the OFF (O) position until
the engine comes to a complete stop (Fig. 9).
Fig. 9
S
Fig. 10
Primer Bulb
Choke Lever
Fig. 11
Starter Rope Grip
Starting
Position
Throttle
Control
Fig. 12
10
