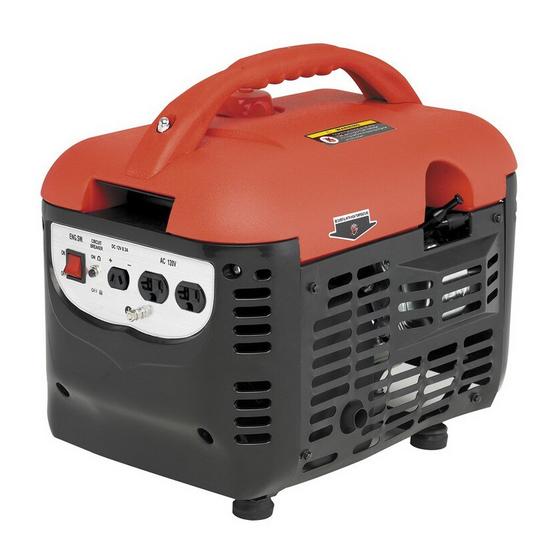

2000 watt generator
Hide thumbs Also See for APG3010:

Advertisement

Quick Links

Download this manual
©WB@_S
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the APG3010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for All-Power APG3010

Summary of Contents for All-Power APG3010

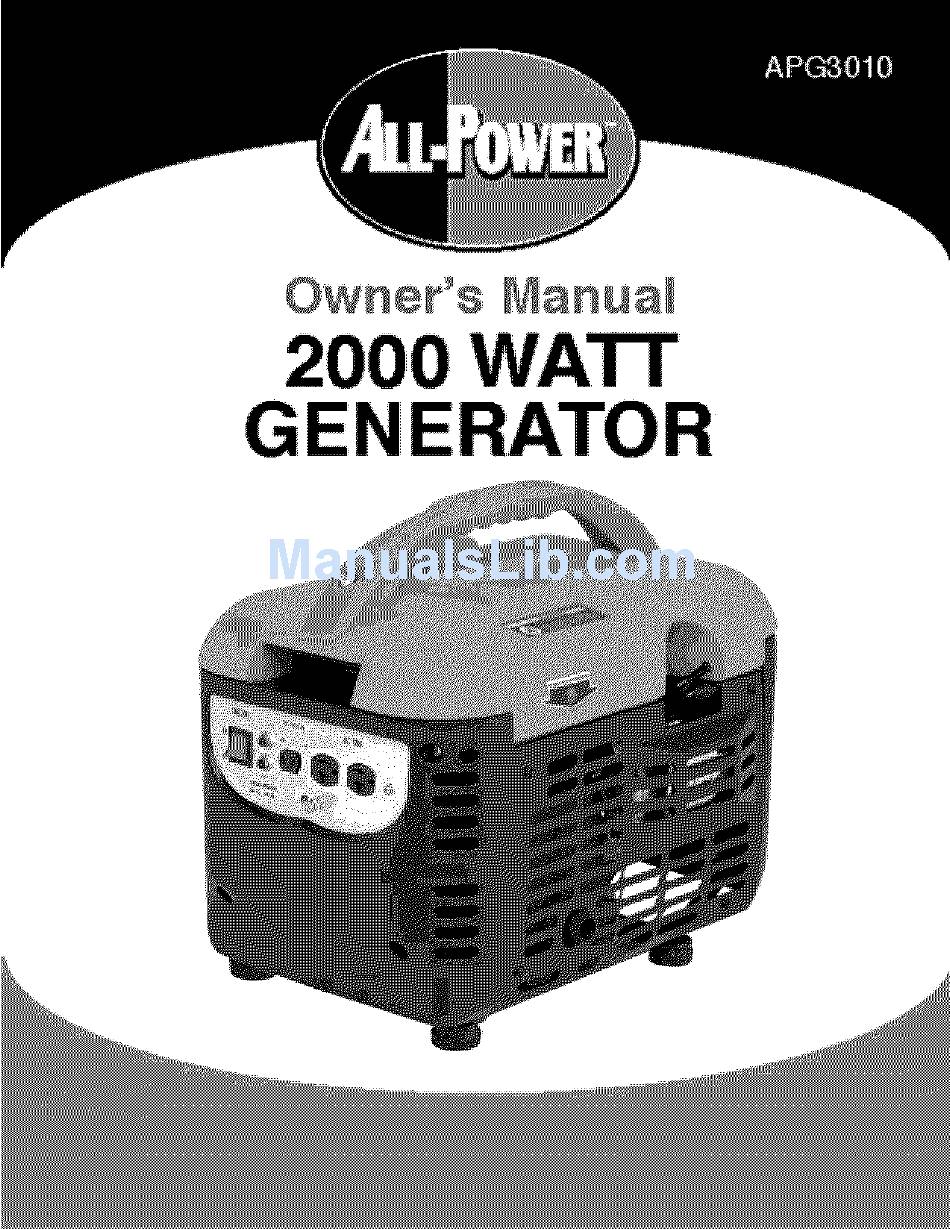

  • Page 1 ©WB@_S Manual...
  • Page 2 2000W Generator Table of Contents Topic Page Limited Warranty Safety Guidelines General Precautions Battery Assembly Operation Inspection, Oleanin_ and Maintenance Installation Specifications General Parts Listings WARNING! READ AND UNDERSTAND ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL...
  • Page 3 Owner's Manual Limited Warranty All-Power America warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this warranty are free from defects in material and workmanship for one year from the date of purchase.
  • Page 4 2000W Generator Limited Warranty (cont'd) TH!S WARRANTY DOES NOT COVER: • Merchandise sold as reconditioned, used as rental equipment, or floor or display models. • Merchandise that has become damaged or inoperative because of ordinary wear, misuse, cold, heat, rain, excessive humidity, freeze damage, use of improper chemicals,...
  • Page 5 Owner's Manual Safety Guidelines - Definitions This manual contains important information that you need to know and understand in order to protect YOUR SAFETY and to PREVENT EQUIPMENT PROBLEMS. The following symbols help you recognize this information. Please read the manual and pay attention to these sections.
  • Page 6 2000W Generator General Precautions WARNING! FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT SEVERE INJURY OR DEATH. AUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN ALSO RESULT IN DAMAGE TO THE TOOL AND/OR THE ITEM YOU ARE WORKING Carbon Monoxide When this tool is running, ensure that the area is well ventilated.
  • Page 7 Owner's Manual General Precautions (cont'd) Gasoline and Oil (cont'd) • Do not smoke, or allow sparks, flames or other sources of ignition around the engine and fuel tank. Fuet vapors are explosive. • Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections...
  • Page 8 2000W Generator General Precautions (cont'd) Work Area • Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
  • Page 9 Owner's Manual General Precautions (cont'd) Electrical Safety (cont'd) • All connections and conduits from the generator to the load must only be installed by trained licensed electricians, and in compliance with all relevant local, state, and federal electrical codes and standards, and other regulations where applicable.
  • Page 10 2000W Generator General Precautions (cont'd) Personal Safety (cont'd) • Avoid accidental starting. Make sure the power switch is in its "OFF" position, and disconnect the spark plug wire when not in use. • Remove adjusting keys or wrenches before turning the generator on.
  • Page 11 (cont'd) Servicing Maintain labels and name plates on the generator and engine. These carry important information. If unreadable or missing, contact All Power America immediately for a replacement. Generator service must be performed only qualified repair personnel. Service or maintenance...
  • Page 12 2000W Generator General Precautions (cont'd) Installation (cont'd) • If the generator is installed outdoors, it must be weatherproofed and should be soundproofed. should not be run outdoors without protection to the generator and wiring conduit. • The generator weighs 621bs. Two or more people should assist when moving or lifting this product.
  • Page 13 Owner's Manual General Precautions (cont'd) Mechanical (cont'd) • Do not operate the generator with safety guards removed. While the generator is running, do not attempt to reach around the safety guard for maintenance or any other reason. • Keep hands, arms, long hair, loose clothing, and jewelry away from moving...
  • Page 14 2000W Generator General Precautions (cont'd) Extension Cord If an extension cord (not included) is used, make sure to use only UL approved cords having correct gauge and length according to the following table: Nameplate Amps (@ Cord Lengths full load) 0'-50' 50'-100' 100'-150'...
  • Page 15 Owner's Manual Battery This product does not need a battery.
  • Page 16 2000W Generator Assembly Lug nuts -- Handle 2-Lugs 1. Place handle in pre-installed bolts. 2. Screw in lug nuts & tighten till secured.
  • Page 17 Owner's Manual NOTE: THE PARTS LISTED ABOVE AR_ HELPFUL FOR LOCATING THE CONTROLS MENTIC NED BELOW_ CAUTION: PRIOR TO FIRST USING THE GENERATOR, THE ENGINE _UST BE FILLED HIGH QUALITY SAE 10W-30 GRADE ENGINE O_L TO _ UNSCREW AND REMOVE THE ENGINE'S OIL DIPSTICK LOCATED...
  • Page 18 2O00W Generator Operation (cont'd) Starting ,e_i_ d_v CB_ 3. Di_een_ec_ a_ie _ 4 ODe# t_e, _e_ valve t_ the _0_ p_,it_#. 5 C4#se me c_;e Fi@ 2} 5 TUrn ¢n@#e switch _n (s_ _t_. 3) Fig, 2 8 ReDea_ s[_ 7 u_t e_i_÷...
  • Page 19 Owner's Manual Operation (cont'd) Powering 120 Volt AC Tools And Equipment: 1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity (120V/AO (_ 13.75 AMPs) is adequate to supply all electrical loads that the unit will power.
  • Page 20 2000W Generator Operation (cont'd) Powering 12 Volt DC tools and Equipment: 1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity (12V/DO @ 8.3 AMPs) is adequate to supply all electrical loads that the unit will power.
  • Page 21 Owner's Manual Inspection, Cleaning, and Maintenance WARNING! ALWAYS MAKE SURE THE ENGINE POWER SWITCH IS IN ITS AND ALLOW SUFFICIENT TIME FOR THE ENGINE AND GENERATOR OFF" POSITION. DISCONNECT THE SPARK PLUG WIRE FROM THE ENGINE. COMPLETELY COOL BEFORE PERFORMING ANY INSPECTIONS, MAINTENANCE, OR CLEANING.
  • Page 22 2000W Generator Installation GENERATOR'S RATED VOLTAGE, WATTAGE AND AMPERAGE CAPACITY (120V@-13.75AMPs) OTE: PRIOR TO POWERING IS ADEQUATE TOOLS TO SUPPLY AND EQUIPMENT ALL ELECTRICAL MAKE SURE THE LOADS THAT THE UNIT WILL POWER. IF POWERING EXCEEDS THE GENERATOR'S CAPACITY, IT MAY BE NECCESSARY TO GROUP ONE OR MORE OF THE TOOLS...
  • Page 23 Owner's Manual Installation (cont'd) Supporting and Mounting Mount the generator on a concrete slab capable of supporting the weight of the generator. slab must extend on all sides beyond the frame by at least one foot. Contact a cement contractor for stab specifications if necessary.
  • Page 24 2000W Generator Specifications AC electrical Current Output 120V @ 13.75Amps, 60Hz Continous/rated Wattage 1,650 Peak Wattage 2,000 Outlet two 120V AC, 3-prong grounded DO electrical Current Output 12V/DC @ 8.3A Gasoline engine Horsepower Type 4-stroke gasoline engine Displacement 119cc Oil capacity 0.6 liters EPA approved Fuel...
  • Page 25 Owner's Manual General Parts Listing...
  • Page 26 2000W Generator General Parts Listing (cont'd) APA Part No. Part. No Description APG 3010-01-LF 41221 Muffler pane APG 3010-02-LF GB5787-86 Bolt M6-12 APG 3010-03-LF 12310/168F Cylinder head cover assembly APG 3010-04-LF 12312/168F Gasket, cylinder head cover APG 3010-05-LF 20651/168F Air duct APG 3010-06 -LF 14250/1P64FV Pusher...
  • Page 27 Owner's Manual General Parts Listing (cont'd) APA Part No. Part. No Description APG 3010-24-LF GB41-86 Nut M8 APG 3010-25-LF 18625 Heat insulation APG 3010-26-LF 34200/168F Spark plug 6RTCU APG 3010-27-LF 26420 Support panel assembly APG 3010-28-LF GB6177-86 Nut M6 APG 3010-29-LF 26331 Re_ulatin_ APG 3010-30-LF...
  • Page 28 2000W Generator General Parts Listing (cont'd) APA Part No. Part. No Description APG 3010-47-LF 16148/168F Choke switch APG 3010-48-LF 16280 Throttle unit APG 3010-49-LF 16422/168F Spring, mixture adjustment screw APG 3010-50-LF 16425/168F Mixture adjustment screw APG 3010-51-LF 16421/168F Idle adiustment screw...
  • Page 29 Owner's Manual General Parts Listing (cont'd) APA Part No. Part. No Description APG 3010-52-LF 16332/168F Choke stem APG 3010-53-LF 16331/168F Choke APG 3010-54-LF 16330/168 Choke unit APG 3010-55-LF 16250 Mixture chamber body APG 3010-56-LF 16251 Main nozzle APG 3010-57-LF 16240/168F Float needle APG 3010-58-LF 16254...
  • Page 30 2000W Generator General Parts Listing (cont'd) APA Part No. Part, No Description APG 3010-75-LF GBl19-86 set pin-87 6 2-19 APG 3010-76-LF 41162 support panel APG 3010-77-LF 11212/I68F Drain plug APG 3010-78-LF 11213/168F Washer APG 3010-79-LF GB276-89 Bearing 62/22 APG 3010-80-LF 13190 Oil seal, crankshaft APG 3010-81-LF...
  • Page 31 Owner's Manual General Parts Listing (cont'd) APA Part No, ParL No Description APG 3010-98-LF 2_,111 Drive gear APG 3010-99-LF 13111 Crankshaft APG 3010-I00-LF 14211 Timing driving gear ARG 3010-101-LF 13110 Crankshaft assembly APG 3010-102-LF 13131 Connectina...
  • Page 32 2000W Generator General Parts Listing (cont'd) APA Part No. Part. No Description APG 3010-103-LF 13132 Connecting rod cover APG 3010-104-LF 13133/1P64FV Bolt APG 3010-105-LF 13130 Connecting A PG 3010 -106 -LF 13222/1 P64 FV Piston pin circlip APG 3010-107-LF 13211 Piston APG 3010-108-LF 13221/1P64FV...
  • Page 33 Owner's Manual General Parts Listing (cont'd) APA Part No. Part. No Description APG 3010-129- LF 31134 was her APG 3010-130-LF 41160 Generator support panel APG 3010-131-LF GB6177-86 Nut M6 APG 3010-132-LF 42130 Bottom rubber APG 3010-133-LF GB5787-86 Bolt M6-25 APG 3010-134- LF 31411 Stab/, venerator APG 3010-135-LF...
  • Page 34 2000W Generator General Parts Listing (cont'd) APA Part No. Part. No Description AAPG 3010-154-LF GB5787-86 Screw M6 25 APG 3010-155-LF 34410/168F Engine stop cable APG 3010-156-LF 34510/168F ignition coil APG 3010-157-LF 34310/168F Spark plug cap APG 3010-158-LF 34500/168F I,qnition coil assembly APG 3010-159-LF 27500 Flywheel...
  • Page 35 Owner's Manual General Parts Listing (cont'd) APA Part No. Part. No Description APG 3010-181-LF 17101 Air cleaner side pane assembly APG 3010-182-LF 17111 Air cleaner cover panel APG 3010-183-LF GB818-85 Pan screw M3-6 APG 3010-184-LF 19715/168F Grommet APG 3010-185-LF GB5787-86 Bolt M6-40 APG 3010-186-LF GB6177-86...
