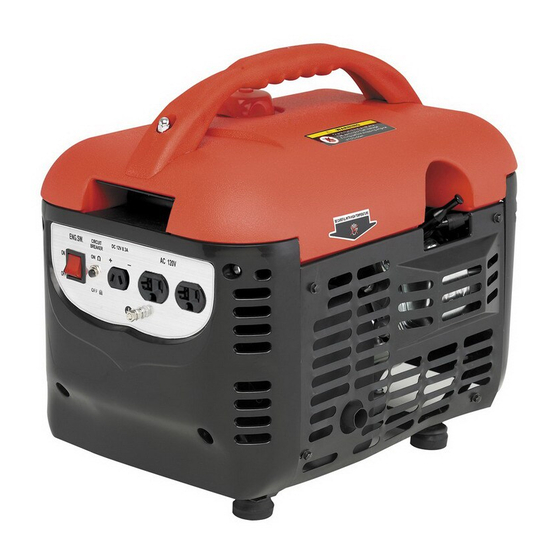

All-Power APG3010 Owner's Manual

2000w generator
Hide thumbs Also See for APG3010:
Table of Contents

Advertisement

Quick Links

Meijer.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APG3010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for All-Power APG3010

Summary of Contents for All-Power APG3010

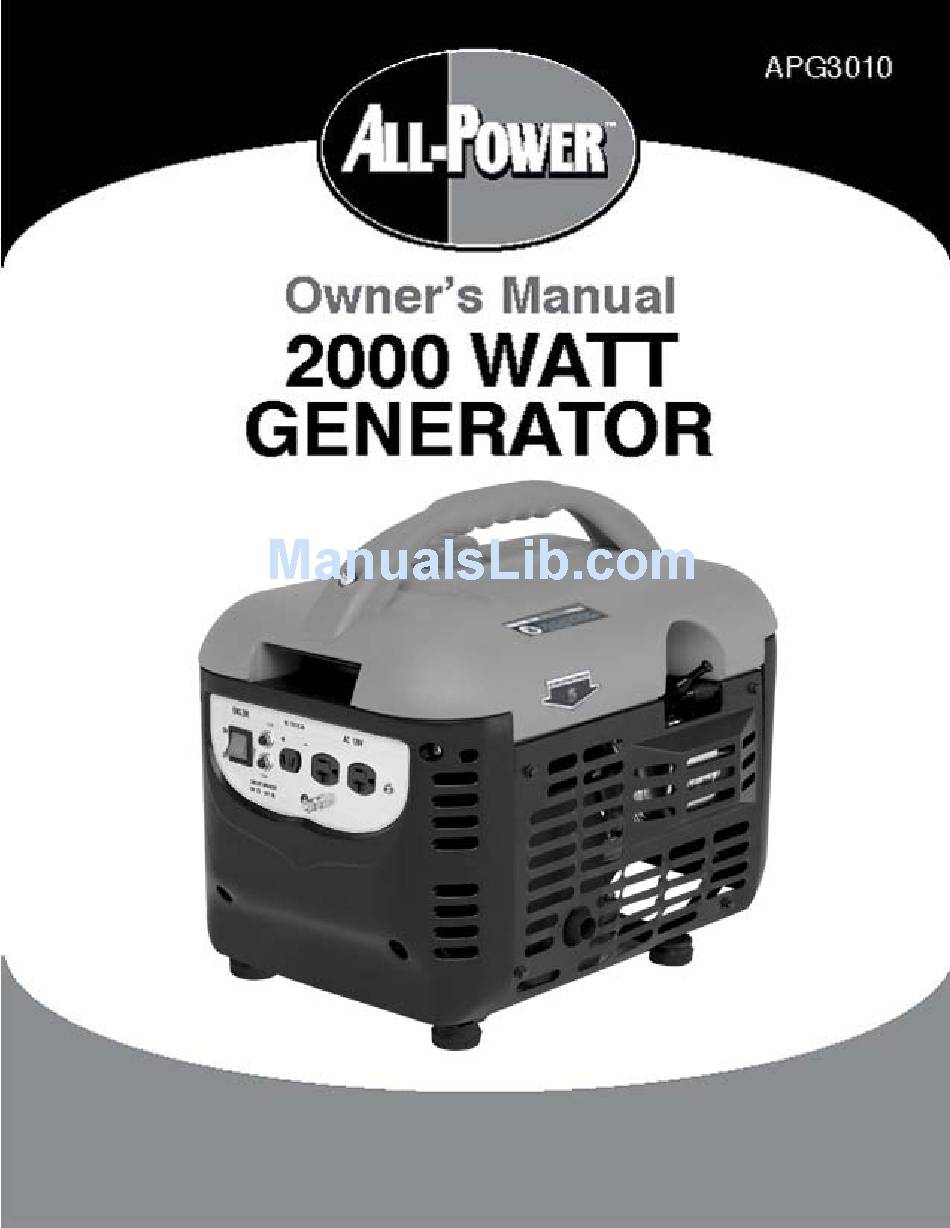

  • Page 1 Meijer.com...

  • Page 2: Table Of Contents

    Meijer.com 2000W Generator Topic Page Limited Warranty Safety Guidelines General Precautions Battery Assembly Operation Inspection, Cleaning and Maintenance Installation Specifications General Parts Listings WARNING! READ AND UNDERSTAND ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL INJURY, PROPERTY DAMAGE, AND/ OR VOIDING OF YOUR WARRANTY.

  • Page 3: Limited Warranty

    Service will be schelduled according to the normal work flow and business hours at the service center location, and the availibility of replacement parts. All decisions of All-Power America with regard to this limited warranty shall be final.
  • Page 4 • Expendable parts or accessories supplied with the product which are expected to become inoperative or unusable after a reasonable period of use. • Merchandise sold by All-Power America which has been manufactured by and identified as the product of another company, such as gasoline engines. The product manufacturer’s warranty, if any, will apply.

  • Page 5: Safety Guidelines

    Meijer.com Owner’s Manual Safety Guidelines - Definitions This manual contains important information that you need to know and understand in order to protect YOUR SAFETY and to PREVENT EQUIPMENT PROBLEMS. The following symbols help you recognize this information. Please read the manual and pay attention to these sections. Save These Important Safety Instructions! Read and understand all of these safety instructions.

  • Page 6: General Precautions

    Meijer.com 2000W Generator General Precautions WARNING! FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN SEVERE INJURY OR DEATH. CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN ALSO RESULT IN DAMAGE TO THE TOOL AND/OR THE ITEM YOU ARE WORKING Carbon Monoxide When this tool is running, ensure that the area is well ventilated.

  • Page 7: Hot Components

    Meijer.com Owner’s Manual General Precautions (cont’d) Gasoline and Oil (cont’d) • Do not smoke, or allow sparks, flames or other sources of ignition around the engine and fuel tank. Fuel vapors are explosive. • Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections to avoid sparking or arcing.

  • Page 8: Work Area

    Meijer.com 2000W Generator General Precautions (cont’d) Work Area • Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.

  • Page 9: Personal Safety

    Meijer.com Owner’s Manual General Precautions (cont’d) Electrical Safety (cont’d) • All connections and conduits from the generator to the load must only be installed by trained and licensed electricians, and in compliance with all relevant local, state, and federal electrical codes and standards, and other regulations where applicable.

  • Page 10: Generator Use And Care

    Meijer.com 2000W Generator General Precautions (cont’d) Personal Safety (cont’d) • Avoid accidental starting. Make sure the power switch is in its “OFF” position, and disconnect the spark plug wire when not in use. • Remove adjusting keys or wrenches before turning the generator on. A wrench or a key that is left attached to a rotating part of the generator may result in personal injury.

  • Page 11: Heart Pacemakers

    Meijer.com Owner’s Manual General Precautions (cont’d) Servicing Maintain labels and name plates on the generator and engine. These carry important information. If unreadable or missing, contact All Power America immediately for a replacement. Generator service must be performed only qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury.
  • Page 12 Meijer.com 2000W Generator General Precautions (cont’d) Installation (cont’d) • If the generator is installed outdoors, it must be weatherproofed and should be soundproofed. It should not be run outdoors without protection to the generator and wiring conduit. • The generator weighs 62lbs. Two or more people should assist when moving or lifting this product.
  • Page 13 Meijer.com Owner’s Manual General Precautions (cont’d) Mechanical (cont’d) • Do not operate the generator with safety guards removed. While the generator is running, do not attempt to reach around the safety guard for maintenance or any other reason. • Keep hands, arms, long hair, loose clothing, and jewelry away from moving parts. Be aware that when engine parts are moving fast they cannot be seen clearly.

  • Page 14: Extension Cord

    Meijer.com 2000W Generator General Precautions (cont’d) Extension Cord If an extension cord (not included) is used, make sure to use only UL approved cords having the correct gauge and length according to the following table: Nameplate Amps (@ Cord Lengths full load) 0’-50’...

  • Page 15: Battery

    Meijer.com Owner’s Manual Battery This product does not need a battery.

  • Page 16: Assembly

    Meijer.com 2000W Generator Assembly Lug nuts 1-Handle Handle 2-Lugs 1. Place handle in pre-installed bolts. 2. Screw in lug nuts & tighten till secured.
  • Page 17 Meijer.com...
  • Page 18 Meijer.com...

  • Page 19: Operation

    Meijer.com Owner’s Manual Operation (cont’d) Powering 120 Volt AC Tools And Equipment: 1. Prior to powering tools and equipment, make sure the generator’s rated voltage, and amperage capacity (120V/AC @ 13.75 AMPs) is adequate to supply all electrical loads that the unit will power.
  • Page 20 Meijer.com 2000W Generator Operation (cont’d) Powering 12 Volt DC tools and Equipment: 1. Prior to powering tools and equipment, make sure the generator’s rated voltage, and amperage capacity (12V/DC @ 8.3 AMPs) is adequate to supply all electrical loads that the unit will power.

  • Page 21: Inspection, Cleaning And Maintenance

    Meijer.com Owner’s Manual Inspection, Cleaning, and Maintenance WARNING! ALWAYS MAKE SURE THE ENGINE POWER SWITCH IS IN ITS “OFF” POSITION. DISCONNECT THE SPARK PLUG WIRE FROM THE ENGINE. AND ALLOW SUFFICIENT TIME FOR THE ENGINE AND GENERATOR TO COMPLETELY COOL BEFORE PERFORMING ANY INSPECTIONS, MAINTENANCE, OR CLEANING.

  • Page 22: Installation

    Meijer.com 2000W Generator Installation NOTE: PRIOR TO POWERING TOOLS AND EQUIPMENT MAKE SURE THE GENERATOR’S RATED VOLTAGE, WATTAGE AND AMPERAGE CAPACITY (120V@-13.75AMPs) IS ADEQUATE TO SUPPLY ALL ELECTRICAL LOADS THAT THE UNIT WILL POWER. IF POWERING EXCEEDS THE GENERATOR’S CAPACITY, IT MAY BE NECCESSARY TO GROUP ONE OR MORE OF THE TOOLS AND/OR EQUIPMENT FOR CONNECTION TO A SEPERATE GENERATOR.
  • Page 23 Meijer.com Owner’s Manual Installation (cont’d) Supporting and Mounting Mount the generator on a concrete slab capable of supporting the weight of the generator. The slab must extend on all sides beyond the frame by at least one foot. Contact a cement contractor for slab specifications if necessary.

  • Page 24: Specifications

    Meijer.com 2000W Generator Specifications AC electrical Current Output 120V @ 13.75Amps, 60Hz Continous/rated Wattage 1,650 Peak Wattage 2,000 Outlet two 120V AC, 3-prong grounded DC electrical Current Output 12V/DC @ 8.3A Gasoline engine Horsepower Type 4-stroke gasoline engine Displacement 119cc Oil capacity 0.6 liters EPA approved...
  • Page 25 Meijer.com...

  • Page 26: General Parts Listings

    Meijer.com 2000W Generator General Parts Listing (cont’d) APA Part No. Part. No Description APG 3010-01-LF 41221 Muffler pane APG 3010-02-LF GB5787-86 Bolt M6-12 APG 3010-03-LF 12310/168F Cylinder head cover assembly APG 3010-04-LF 12312/168F Gasket, cylinder head cover APG 3010-05-LF 20651/168F Air duct APG 3010-06-LF 14250/1P64FV...
  • Page 27 Meijer.com Owner’s Manual General Parts Listing (cont’d) APA Part No. Part. No Description APG 3010-24-LF GB41-86 Nut M8 APG 3010-25-LF 18625 Heat insulation APG 3010-26-LF 34200/168F Spark plug 6RTCU APG 3010-27-LF 26420 Support panel assembly APG 3010-28-LF GB6177-86 Nut M6 APG 3010-29-LF 26331 Regulating...
  • Page 28 Meijer.com 2000W Generator General Parts Listing (cont’d) APA Part No. Part. No Description APG 3010-47-LF 16148/168F Choke switch APG 3010-48-LF 16280 Throttle unit APG 3010-49-LF 16422/168F Spring, mixture adjustment screw APG 3010-50-LF 16425/168F Mixture adjustment screw APG 3010-51-LF 16421/168F Idle adjustment screw...
  • Page 29 Meijer.com Owner’s Manual General Parts Listing (cont’d) APA Part No. Part. No Description APG 3010-52-LF 16332/168F Choke stem APG 3010-53-LF 16331/168F Choke APG 3010-54-LF 16330/168F Choke unit APG 3010-55-LF 16250 Mixture chamber body APG 3010-56-LF 16251 Main nozzle APG 3010-57-LF 16240/168F Float needle APG 3010-58-LF...
  • Page 30 Meijer.com...
  • Page 31 Meijer.com...
  • Page 32 Meijer.com 2000W Generator General Parts Listing (cont’d) APA Part No. Part. No Description APG 3010-103-LF 13132 Connecting rod cover APG 3010-104-LF 13133/1P64FV Bolt APG 3010-105-LF 13130 Connecting rod APG 3010-106-LF 13222/1P64FV Piston pin circlip APG 3010-107-LF 13211 Piston APG 3010-108-LF 13221/1P64FV Piston pin APG 3010-109-LF...
  • Page 33 Meijer.com Owner’s Manual General Parts Listing (cont’d) APA Part No. Part. No Description APG 3010-129-LF 31134 washer Generator support panel APG 3010-130-LF 41160 Nut M6 APG 3010-131-LF GB6177-86 Bottom rubber APG 3010-132-LF 42130 APG 3010-133-LF GB5787-86 Bolt M6-25 APG 3010-134-LF 31411 Stay, generator APG 3010-135-LF...
  • Page 34 Meijer.com 2000W Generator General Parts Listing (cont’d) APA Part No. Part. No Description AAPG 3010-154-LF GB5787-86 Screw M6_25 APG 3010-155-LF 34410/168F Engine stop cable APG 3010-156-LF 34510/168F Ignition coil APG 3010-157-LF 34310/168F Spark plug cap APG 3010-158-LF 34500/168F Ignition coil assembly APG 3010-159-LF 27500 Flywheel...
  • Page 35 Meijer.com Owner’s Manual General Parts Listing (cont’d) APA Part No. Part. No Description APG 3010-181-LF 17101 Air cleaner side pane assembly APG 3010-182-LF 17111 Air cleaner cover panel APG 3010-183-LF GB818-85 Pan screw M3-6 APG 3010-184-LF 19715/168F Grommet APG 3010-185-LF GB5787-86 Bolt M6-40 APG 3010-186-LF...
