6. Connect one end of an RS-232 cable to the port labeled RS-232 on the Altek digitizer controller.
Connect the other end of the cable to COM 1 port on the TDZ workstation base unit. Tighten the
cable screws.
7. Connect the round DIN end of the cable from the AC adapter to the power receptacle on the Altek
digitizer controller.
8. Connect the interface PEM power cord to the AC power receptacle on the back of the interface
PEM.

Install the Stereoscopic Subsystem

The stereoscopic subsystem lets you view three-dimensional computer-generated images. It consists of
an infrared transmitter, a cable assembly, and stereoscopic glasses.
To install the stereoscopic subsystem:
1. Place the infrared transmitter on top of the monitor and face the infrared disperser panel towards
the user. No special mounting is required.
2. Set the infrared transmitter switch to the High position.

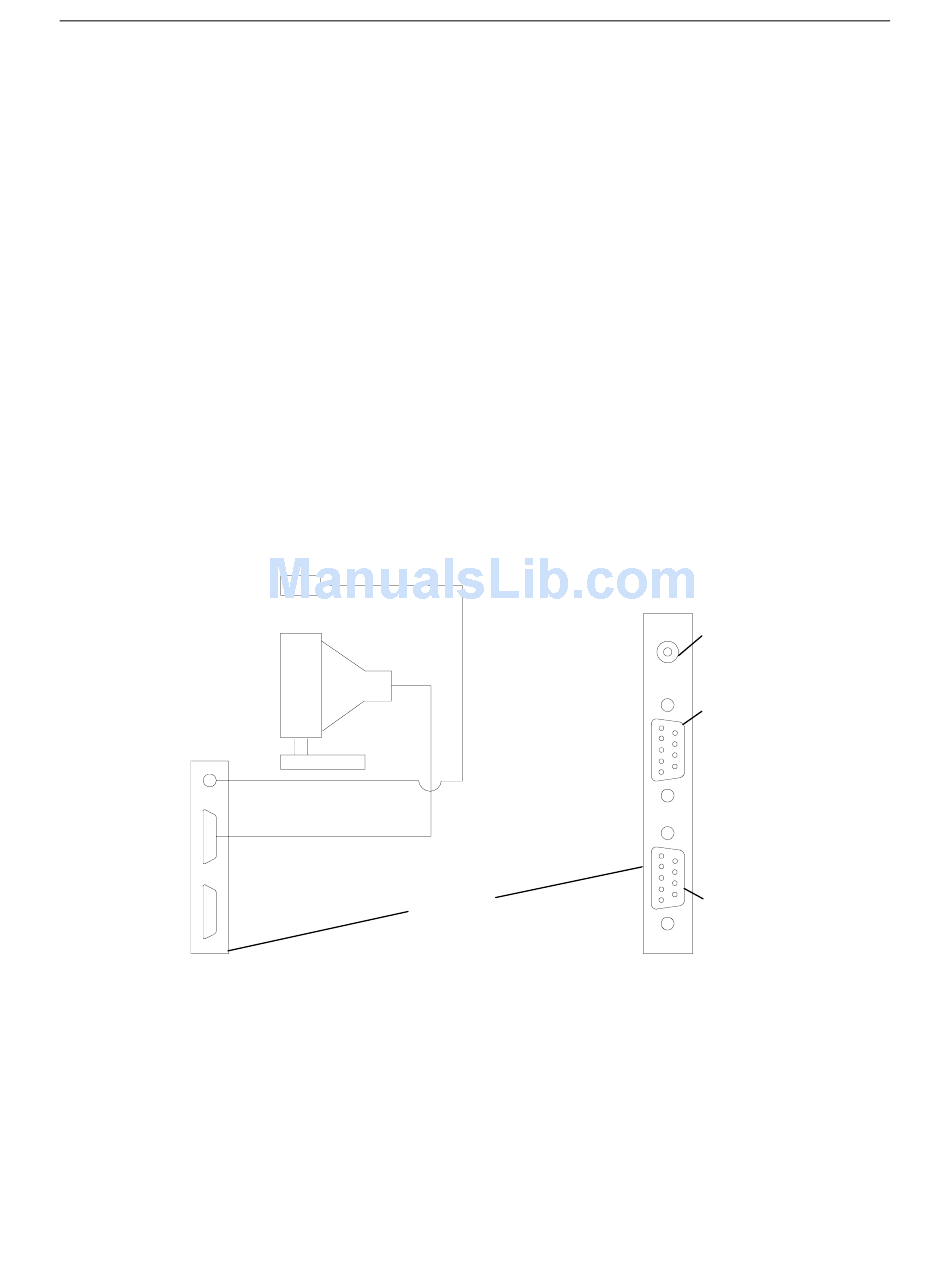

3. Connect one end of the stereo sync interface cable to the 9-pin port on the infrared transmitter.
Connect the other end (round mini-DIN) to the stereo port of the graphics board in the TDZ
workstation base unit. Refer to the following figure.
Infrared
Transmitter
Monitor
Video Cable
4. Connect one end of the video cable to the monitor and the other end to the Video Out port on the
graphics board.
Stereo Sync
Interface Cable
Graphics
Board in
Base Unit
7
Stereo
Port
Video Out
Video In
(not used)
