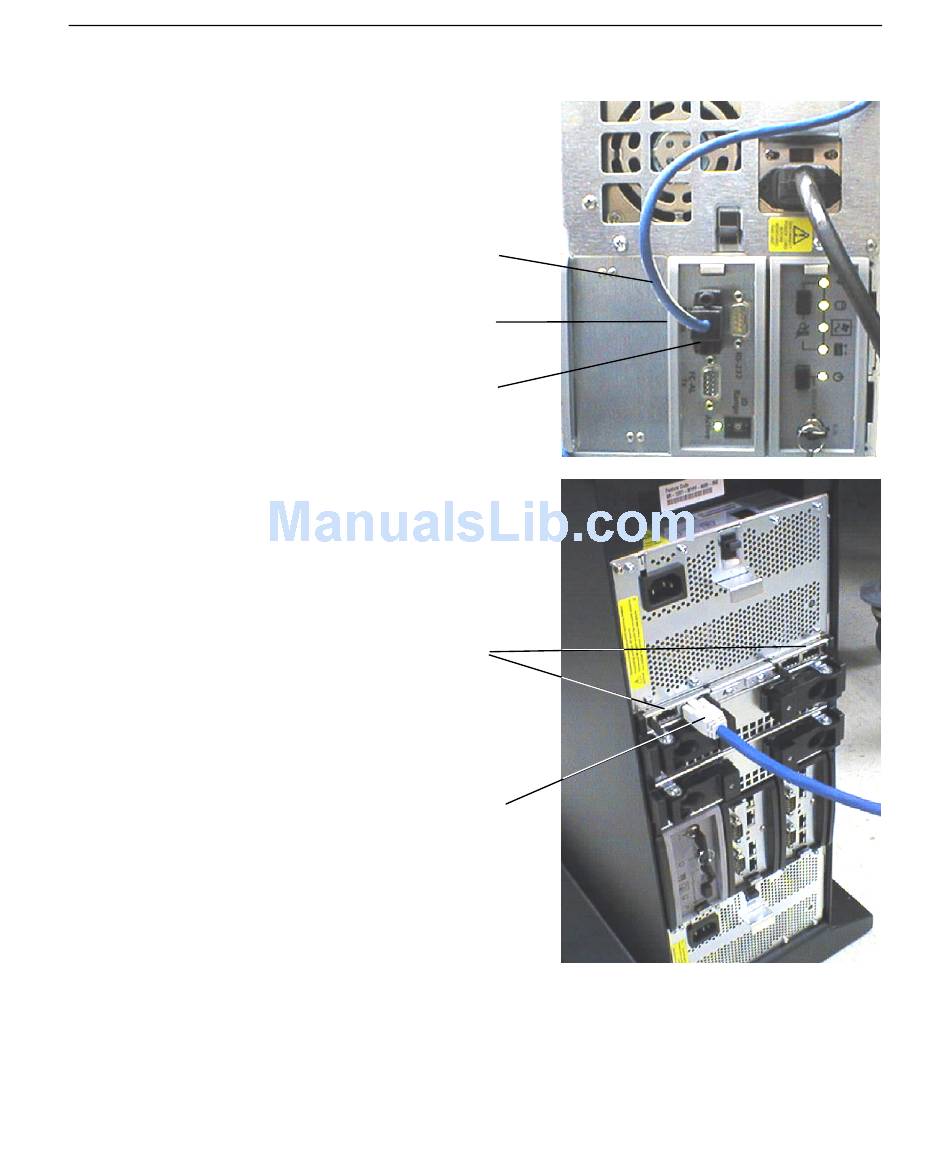

On a standard Fibre Channel disk array, a copper
HSSDC-to-DB-9 cable from the Fibre Channel hub
connects to a DB-9 port on the disk array's
input/output (I/O) module.
On a Fibre Channel RAID array, a copper HSSDC
cable from the Fibre Channel hub connects to an
HSSDC port on the rear panel of the disk array.
For more detailed information on these hardware components, refer to the separate user
documentation delivered with these components.
Copper Cable From
Fibre Channel Hub
I/O Module
DB-9 Port
HSSDC Ports
HSSDC Cable From
Fibre Channel Hub
