Gefen EXT-HDMI1.3-1FO User Manual

Extender for hdmi 1.3 over one fiber with ir
Hide thumbs Also See for EXT-HDMI1.3-1FO:
Table of Contents

Advertisement

Quick Links

Download this manual

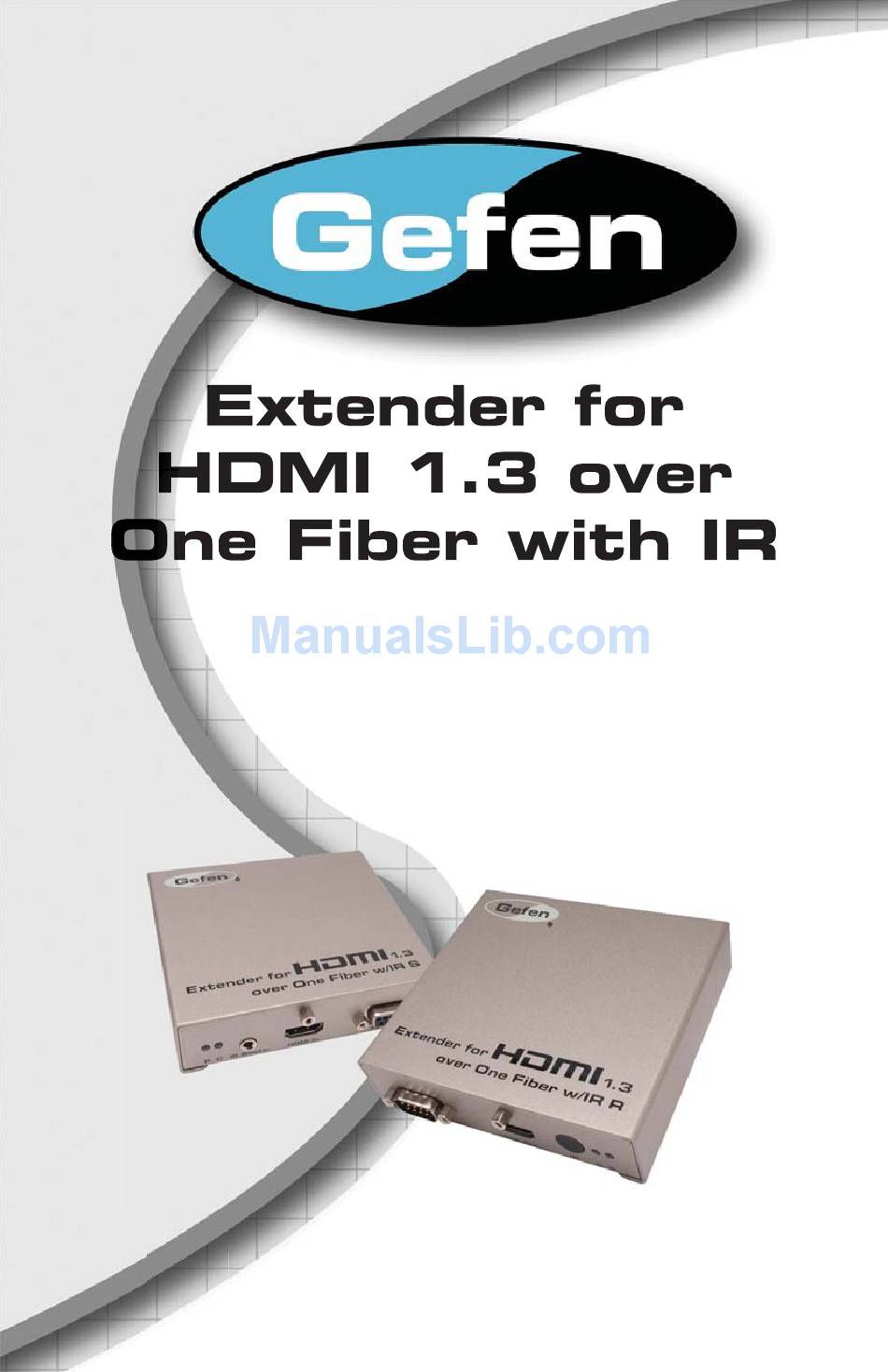

EXT-HDMI1.3-1FO
User Manual
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
ww.gefen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-HDMI1.3-1FO and is the answer not in the manual?

Questions and answers

Related Manuals for Gefen EXT-HDMI1.3-1FO

Summary of Contents for Gefen EXT-HDMI1.3-1FO

  • Page 1 EXT-HDMI1.3-1FO User Manual ww.gefen.com...
  • Page 3 HDMI Licensing in the United States and other countries. Extender for HDMI 1.3 Over One Fiber with IR is a trademark of Gefen, LLC © 2011 Gefen, LLC. All rights reserved. All trademarks are the property of their respective owners.

  • Page 4: Table Of Contents

    CONTENTS Introduction Operation Notes Features Sender Unit Layout Sender Unit Descriptions Receiver Unit Layout Receiver Unit Descriptions Connecting and Operating the Extender Wiring Diagram DIP Switch Confi guration DIP Switches Local EDID / External (Pass-Through) EDID Modes Deep Color Calibration Procedure 12 Specifi...

  • Page 5: Introduction

    The Gefen Extender for HDMI 1.3 Over One Fiber with IR The Gefen Extender for HDMI 1.3 Over One Fiber with IR transmits 1080p Full HD in Deep Color and multi-channel digital audio up to 1000 feet (330 meters) over a single-strand SC fi...

  • Page 6: Operation Notes

    RS-232 data is bi-directional for direct commands and echo function or status information. IMPORTANT CALIBRATION PROCEDURE These steps must be followed when setting up the Gefen Extender for HDMI 1.3 over one Fiber with IR for the fi rst time. •...

  • Page 7: Features

    FEATURES HDMI 1.3 Features • 225 MHz (up to 12 bit YUV 444 @ 1080p) • Deep Color • Dolby TrueHD and DTS-HD Master Audio • Lip-Sync • CEC Protocol Pass-Through Features • Supports video resolutions up to 1080p,1920 x 1200 and 2K •...

  • Page 8: Sender Unit Layout

    SENDER UNIT LAYOUT Front Back...

  • Page 9: Sender Unit Descriptions

    This connector accepts 1 strand of SC-terminated fi ber optic cable that will link the Sender Unit and Receiver Unit together. The Gefen Extender for HDMI 1.3 Over One Fiber with IR will only accept multi-mode fi ber optic cabling.

  • Page 10: Receiver Unit Layout

    RECEIVER UNIT LAYOUT Front Back...

  • Page 11: Receiver Unit Descriptions

    This connector accepts 1 strand of SC-terminated fi ber optic cable that will link the Sender Unit and Receiver Unit together. The Gefen Extender for HDMI 1.3 Over One Fiber with IR will only accept multi-mode fi ber optic cabling.

  • Page 12: Connecting And Operating The Extender

    CONNECTING AND OPERATING THE GEFEN EXTENDER FOR HDMI 1.3 OVER ONE FIBER WITH IR How to Connect the Extender for HDMI 1.3 over One Fiber with IR Connect a Hi-Def source to the Sender Unit using the included Locking HDMI cable.

  • Page 13: Dip Switch Confi Guration

    DIP SWITCH CONFIGURATION DIP Switches On the bottom of the Sender Unit and Receiver Unit are a bank of four (4) DIP switches. These DIP switches provide control over EDID, Deep Color, and unit Calibration. Remove the strip of tape to expose the DIP switches. To change the DIP switch settings, move the appropriate DIP switch to its ON or OFF position using a small pointed object.

  • Page 14: Dip Switch Configuration

    DIP SWITCH CONFIGURATION DIP 1 - EDID Mode • OFF - Local EDID When Local EDID mode is used, the EDID will be assembled by copying all video and audio features of the connected device. Deep Color support will be manually controlled: If Deep Color is supported by the display(s), DIP 2 should be set to the ON position (see DIP 2 - Deep Color, below).

  • Page 15: Calibration Procedure

    Sender Unit and the Receiver Unit to perform a full calibration. • If the calibration procedure continues to fail, contact Gefen Technical Support under the Asking For Assistance section at the beginning of this manual.

  • Page 16: Specifi Cations

    SPECIFICATIONS Video Amplifi er Bandwidth ................ 225 MHz Maximum Resolutions Supported: ........1080p60, 1920x1200, 2K Input Video Signal ................1.2 Volts p-p Input DDC Signal ................5 Volts p-p (TTL) HDMI Input/Output Connector ............Type A, 19-pin RS-232 Input/Output Connector................DB9 RS-232 Data Transmission Rate ..........115,200 kbps (max.) LED Indicator (Power ON/OFF) ........2-color LED (red / green) LED Indicator (Fiber Calibration) ........2-color LED (red / green) IR Modulation Frequency: ................38 KHz...

  • Page 17: Warranty

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
  • Page 20 Rev A6 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
