Summary of Contents for StarTech.com PEX2EC35

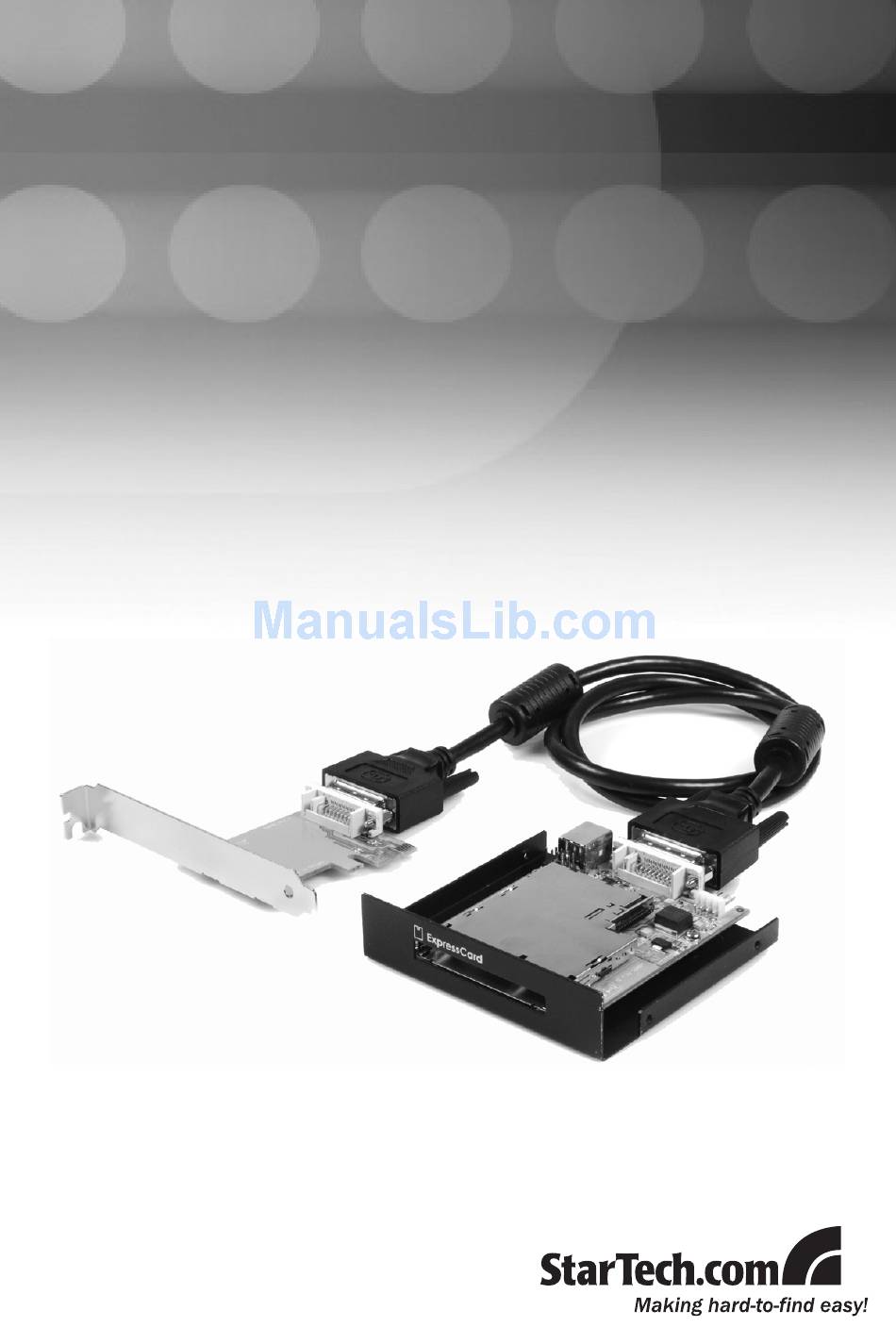

- Page 1 3.5” Drive Bay PCI Express to Expresscard Adapter PEX2EC35...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowl-...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Features ..................1 Package Contents ...............1 Installation ..................2 Installing the PCI Express Card...........2 Installing the 3.5” Bay ..............3 Specifications ................6 Technical Support ................. 7 Warranty Information ..............7... -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com 3.5” Drive Bay PCI Express to Expresscard Adapter. This device offers the convenience of being able to use ExpressCards on a desktop computer, eliminating the cost of having to buy duplicate cards to perform the same function among desktop and notebook operating environments. -
Page 5: Installation
Be sure that you are properly grounded before opening your computer case or touching your card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Installing The 3.5" Bay
Instruction Manual Installing the 3.5” Bay Connect the Power, USB Type-B-to-10-pin-Header Adapter Cable (optional) and DVI like Expansion Cable to the appropriate connectors on the rear panel of the 3.5” ExpressCard Bay: Remove the cover from a 3.5” drive bay, on the front panel of the host computer case, then feed the remaining ends of the cables used in step #1 through the open bay:... - Page 7 Instruction Manual Continue to feed the cables into the computer case (through the open drive bay), until the ExpressCard Bay is near the opening, then press the ExpressCard Bay into the case so that it is flush with the face of the computer case: Once the ExpressCard Bay has been inserted into the computer case, fasten it to the computer chassis, as you normally would a 3.5”...
- Page 8 Instruction Manual Connect the DVI like Expansion Cable (currently connected to the ExpressCard Bay) to the PCI Express Card. Connect the remaining ends of the power cables (currently connected to the power port on the back of the ExpressCard Bay). Connect the remaining end of the USB Type-B-to-10-pin-Header Adapter Cable to an available USB (Type A) port, by threading it through an open rear panel slot to an available (external) USB port.
-
Page 9: Specifications
Instruction Manual Specifications Bus Type PCI Express Form Factor 34 and 54 ExpressCard Maximum Date Transfer Rate 250 Mbps 1x 34/54 ExpressCard Slot 1x Internal USB Type B male Connector Connectors: 1x Internal USB Header 1x SP4 male Connector Windows® 2000/XP/Vista™ Operating System Support Mac OSX + Linux... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
