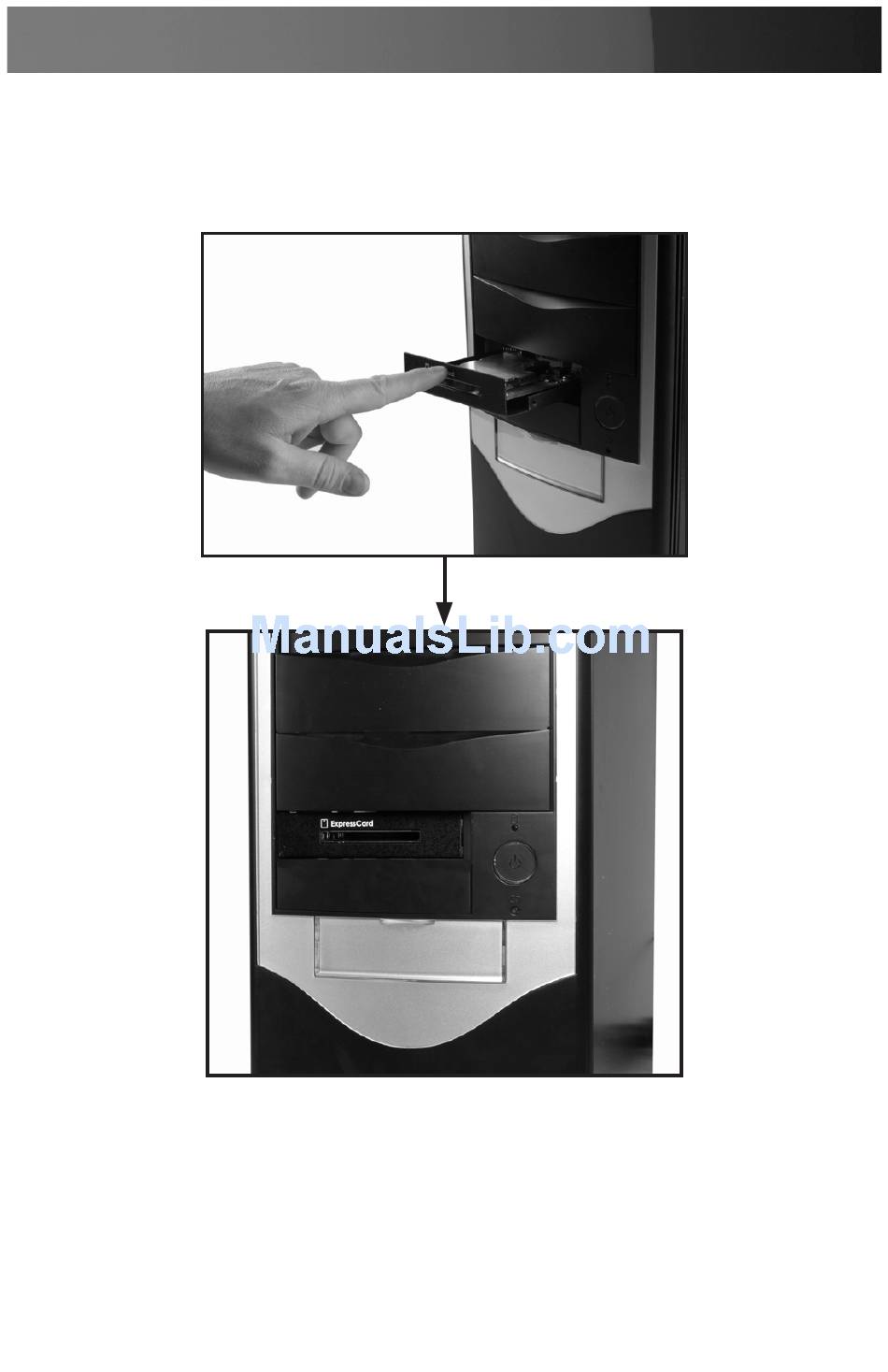

3.
Continue to feed the cables into the computer case (through the open
drive bay), until the ExpressCard Bay is near the opening, then press
the ExpressCard Bay into the case so that it is flush with the face of the
computer case:
4.
Once the ExpressCard Bay has been inserted into the computer case,
fasten it to the computer chassis, as you normally would a 3.5" drive
(i.e. CD-ROM Drive, etc.), and connect the remaining ends of the
cables (see steps #1 and #2) to the appropriate ports as outlined on
the following page:
Instruction Manual
4
