User Manual
M185LCBV4 and M215LCBV4
LCD VIDEO MONITOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M185LCBV4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Speco M185LCBV4

Summary of Contents for Speco M185LCBV4

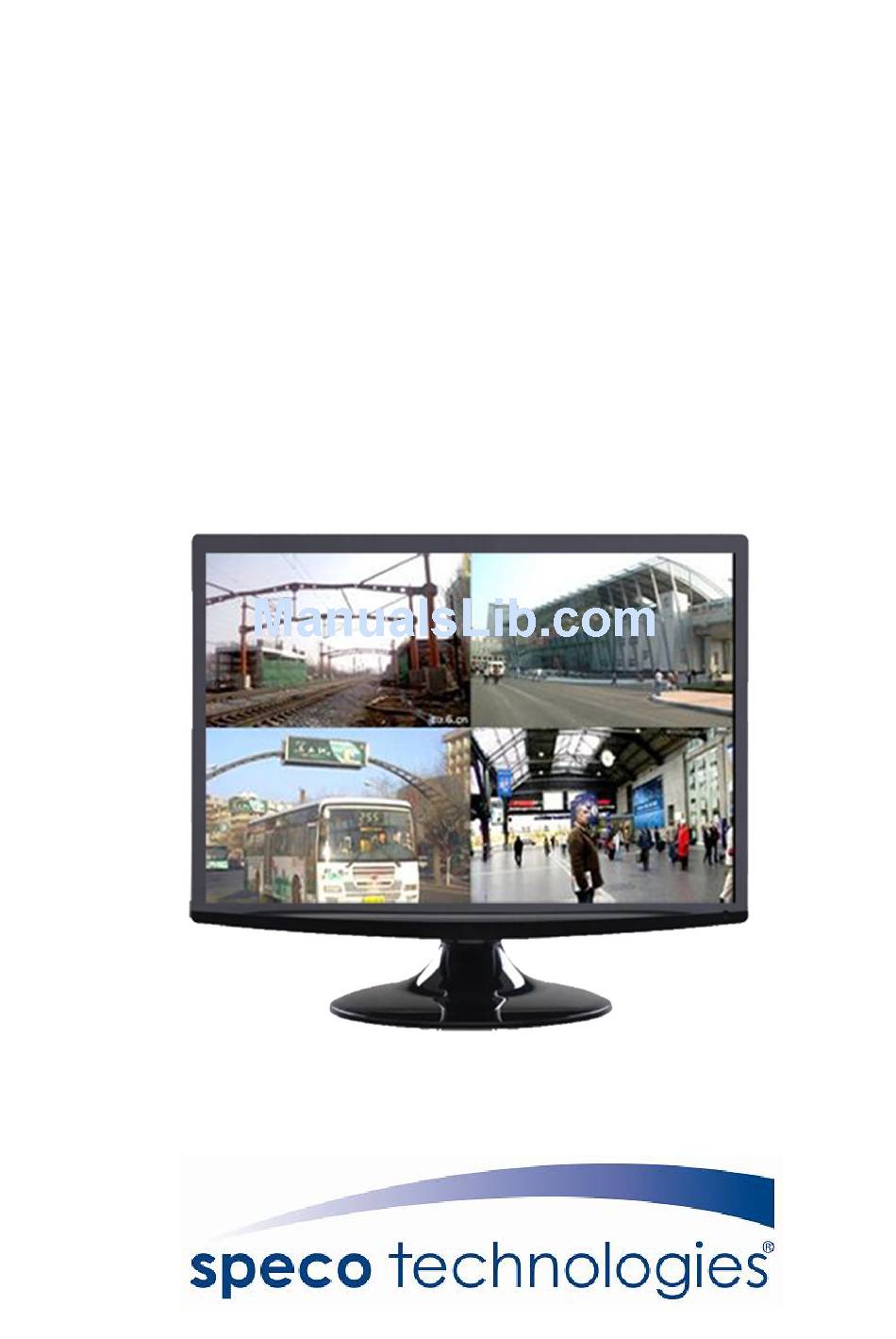

  • Page 1 User Manual M185LCBV4 and M215LCBV4 LCD VIDEO MONITOR...
  • Page 2 SAFETY INSTRUCTIONS…………………………………………………………………….2-3 CAUTION ………………………………………..……………………………………………..4 FCC RF INTERFERENCE STATEMENT …………………………………………………...5 CONNECTING WITH EXTERNAL EQUIPMENT………………………………………….. 6 CONTROLS AND FUNCTIONS…………………………………………………….……..7-16 MOUNTING GUIDE …………………………………………………………….……..…….. 17 D-SUB CONNECTOR PIN ASSIGNMENTS ……………………………………………….18 POWER MANAGEMENT……………………………………………………………………..19 SPECIFICATIONS………………………………………………………………………..……20 1 …………………………………………………………………………… INSTRUCTION MANUAL...
  • Page 3 1. Read all of these instructions. 2. Save these instructions for later use. 3. Follow all warnings and instructions in this manual and on the product. 4. Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
  • Page 4 14. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D.
  • Page 5 ▶ NEVER REMOVE THE BACK COVER Removal of the back cover should be carried out only by qualified personnel. ▶ DO NOT USE IN HOSTILE ENVIRONMENTS To prevent electrical shock or a fire hazard, do not expose the unit to rain or moisture. This unit is designed to be used in the office or home.
  • Page 6 NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 7 Bottom and Side Panel Control Back View of Monitor A. Connector Panel 1. Audio In 2. Audio Out 3. BNC Out 4. BNC In 5. VGA INSTRUCTION MANUAL…………………………………………………………………………… 6...
  • Page 8 B. CONTROL KEYS/BUTTONS Buttons are located on the back of the monitor on the right side of the Bezel. 1. Menu/Source: Opens the OSD and steps down on the OSD. Also, the MENU button selects either the VGA or BNC input after the EXIT button is pushed) and then press the MENU button to Select 2.

  • Page 9: Color Menu

    1. OSD setup under BNC input mode A. COLOR MENU Press the MENU button to bring the menu on screen, and then Up/ Down buttons to move left and right across the menu selections to highlight the COLOR menu. Press the Menu (Source) button to enter the (highlighted) COLOR sub menu.

  • Page 10: Audio Menu

    1. OSD setup under BNC input mode (continued) B. AUDIO MENU Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the AUDIO menu. Press the Menu (Source) button to enter the (highlighted) AUDIO sub menu.
  • Page 11 1. OSD setup under BNC input mode (continued) C. OSD MENU Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the OSD menu.
  • Page 12 1. OSD setup under BNC input mode (continued) D. MISC Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the MISC menu. Press the Menu (Source) button to enter the (highlighted) MISC sub menu.

  • Page 13: Osd Setup Under Vga Input Mode

    2. OSD setup under VGA input mode A. COLOR MENU Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the COLOR menu. Press the Menu (Source) button to enter the (highlighted) COLOR sub menu.
  • Page 14 2. OSD setup under VGA input mode (continued) B: IMAGE MENU Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the IMAGE menu.
  • Page 15 2. OSD setup under VGA input mode (continued) C. AUDIO MENU Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the AUDIO menu. Press the Menu (Source) button to enter the (highlighted) AUDIO sub menu.
  • Page 16 2. OSD setup under VGA input mode (continued) D. OSD MENU Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the OSD menu. Press the Menu (Source) button to enter the (highlighted) OSD sub menu.
  • Page 17 2. OSD setup under VGA input mode (continued) E. MISC Press the MENU button to bring the menu on screen, and then Up / Down buttons to move left and right across the menu selections to highlight the MISC menu. Press the Menu (Source) button to enter the (highlighted) MISC sub menu.
  • Page 18 Wall or Other Mounting with VESA Standard CAUTION : The wall mount must bear a minimum of five times the monitor’s net weight. To mount your MONITOR to the wall or another surface, you need to purchase a VESA wall mount. Use four M4 x 8mm screws (not included) to attach the mount.

  • Page 19: Pin Assignments

    ▶ PIN ASSIGNMENTS ▶ ACCESSORIES 2. Power Cord 1. Quick Installation 3. VGA Cable Guide 4. User's Manual (available through re- saler) INSTRUCTION MANUAL…………………………………………………………………………… 18...

  • Page 20: Power Consumption

    POWER CONSUMPTION :<20W LED INDICATOR The power management feature of the monitor is comprised of three stages: On (Green Light), No Signal (Flashing Green Light), and Off (No Light). MODE COLOR MONITOR OPERATION Green Normal Operation NO SIGNAL Flashing Green No Signal None Power Off...
  • Page 21 Model M185LCBV4 M215LCBV4 18.5” LCD CCTV monitor 21.5” LCD CCTV monitor Size Aspect Ratio 16:9 Resolution (H x V) 1360 x 768 1920 x 1080 Colors 16.7M Viewing Angle H: 170º V: 170º Viewing Lines 420 TV Lines Contrast Ratio 10000:1 (DCR) Response Time 2D Comb Filter with De-...
