Speco VM-1501B Specifications

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

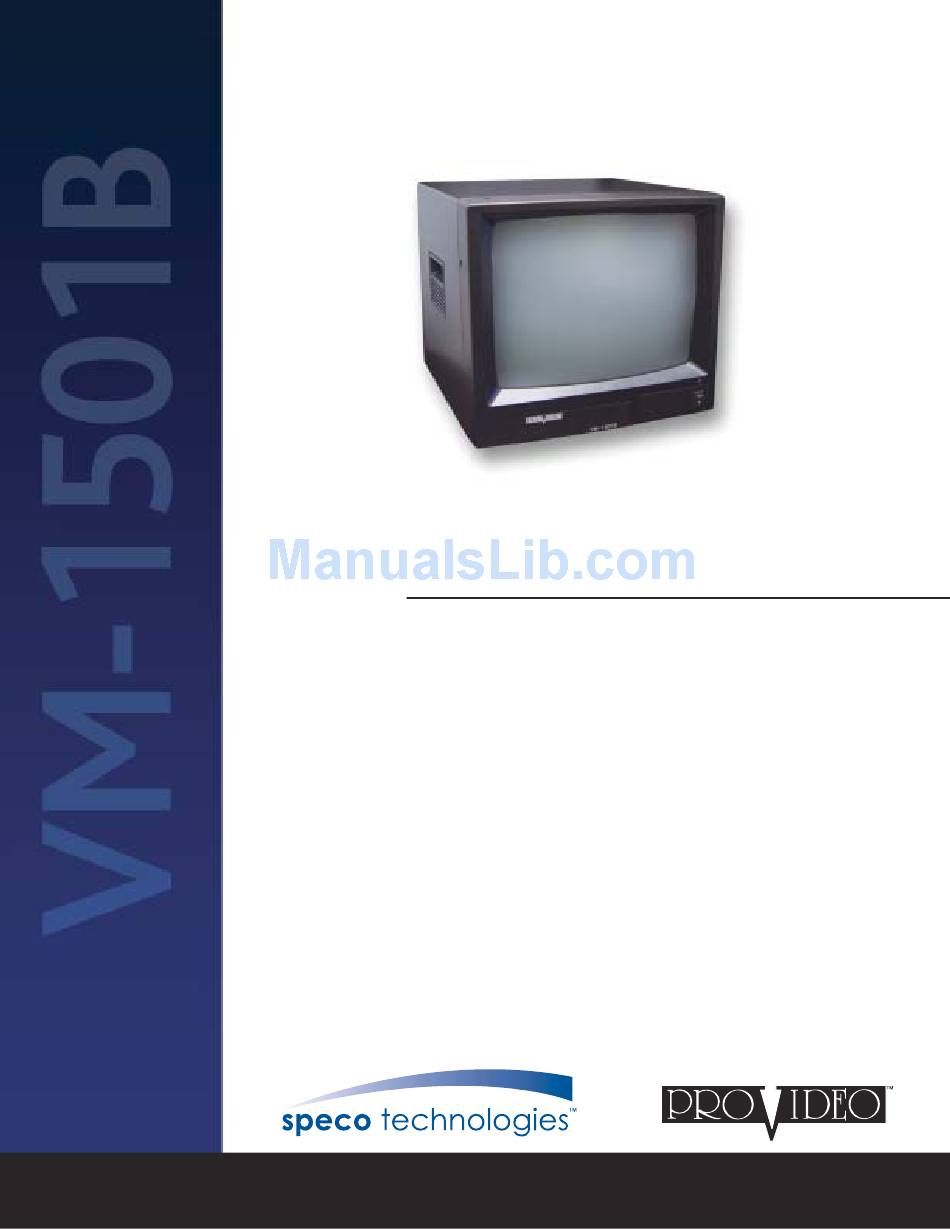

VM-1501B
15" B/W Monitor
Our 15" B/W monitor has 1000 lines of resolution yielding a high resolution picture. It
features up front controls with a hinged cover, looping video input/output with switchable
75 ohm termination and a LED power light. It is housed in a black metal cabinet and is UL
and CSA listed.

Specifications

Resolution
Input
Input Signal
Input Voltage
Linearity
Scanning Frequency
Video Gain
Operating Temperature
Power Consumption
Dimensions
Weight
For more information contact us at:
1000 TV lines
BNC connector, 75 ohm/high-switchable
05 to 2.0 Vp-p composite video sync negative
100-240 volts AC 50/60 HZ
+/- 10 % horizontal, +/- 10 % vertical
EIA standard 15.75 kHz horizontal, 48-62 Hz vertical
33 dB
14 degrees F to 104 degrees F
48 watts
13.25"L x 14.25"W x 12.5"H
30 lbs
