VMS-2
4" Color LCD Service Monitor Kits
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VMS-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Speco VMS-2

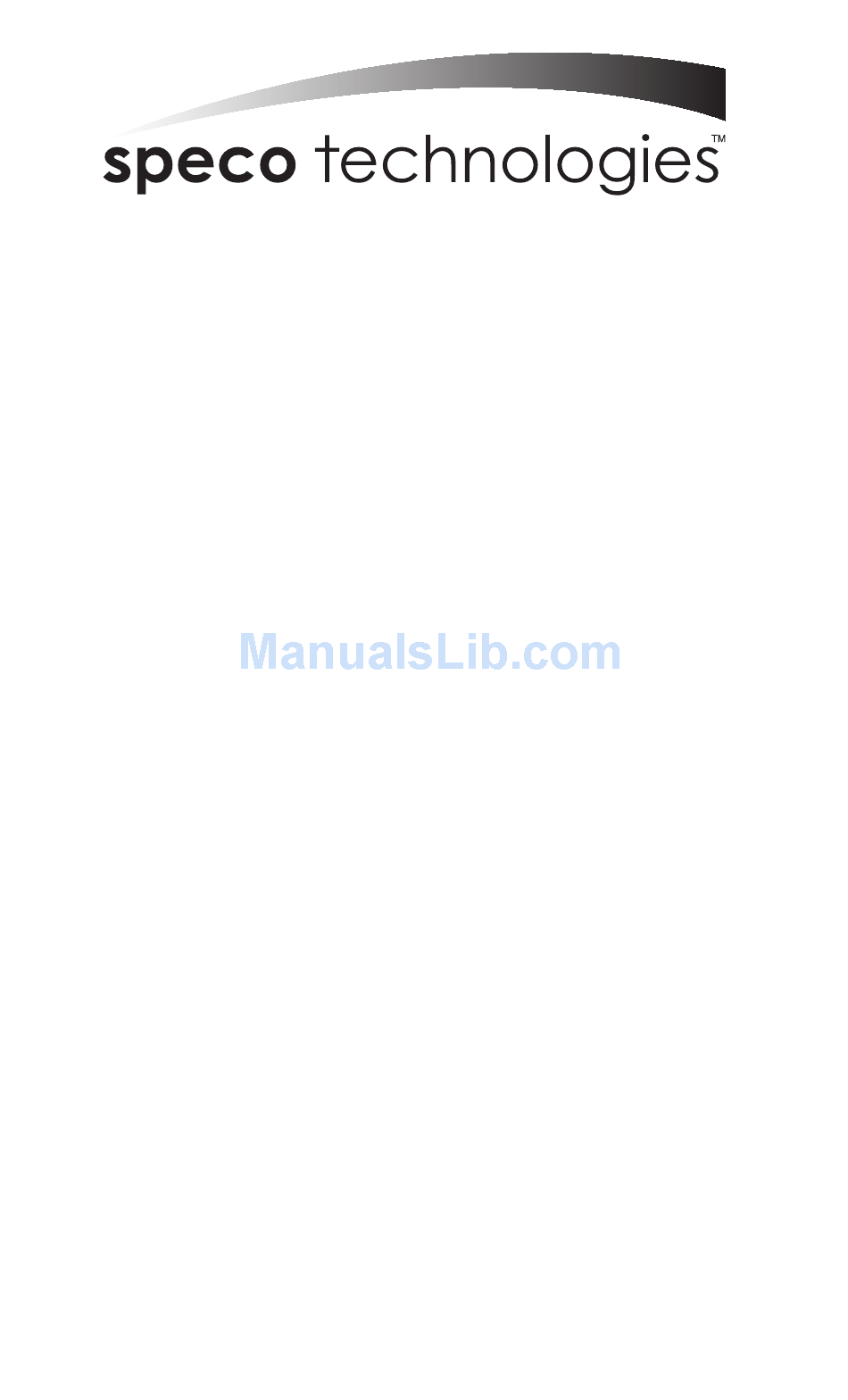

  • Page 1 VMS-2 4” Color LCD Service Monitor Kits User’s Manual...
  • Page 2 Copyright @1998 by this company. No Part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or any means. Electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.
  • Page 3 I. CONTENTS : 1. 4” LCD monitor 2. Carry Bag and Belts 3. 1000mA Rechargeable Ni-H Battery 4. Three velcos , two for monitor and one for battery. 5. 30 cm power cord. 6. 15V DC Charger. This Charger should only be used to charge the battery NOT to supply the unit.

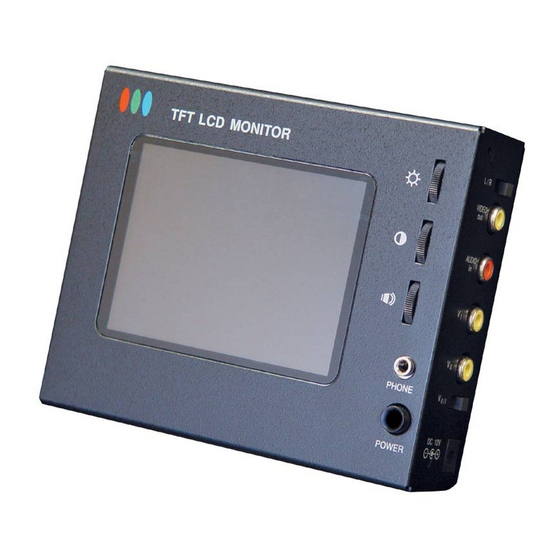

  • Page 4 III. LCD Monitor Operation and Connections : Controls and Connectors on LCD monitor: 1. Brightness control 2. Contrast Control 3. Volume control for headphones 4. Audio output for headphones 5. Main Power switch 6. Video Left-Right Reverse Switch 7. Audio input 8.
  • Page 5 iii.. Connections 1) Connect the video source to the Video input 1(9) or Video 2(10) Inputs. 2) Select the correct Video input using the Video Input switch (11). 3) Connect the Audio source to the audio input (7). 4) Connect an electronically regulated 12V power supply The positive pole must be connected to the center contact.
  • Page 6 vi. Technical Data LCD technology: TFT active matrix Display size: 4” Active area : 82.1 x 61.8 mm Color system: NTSC or PAL Sync. :.Horizontal :15, 625 Hz, Vertical : 50 Hz. Resolution: 480 x 234 , 112,320 Pixels Audio level: 1V/10k Video Input : 1Vpp 75 £[ Dimensions ( Bag ) :190.0 (W) x 130.0 (H) x 60 (D) mm Weight : 1.2 Kg...

This manual is also suitable for:

Lsm-413
