Page 2: Warning
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION: CAUTION Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended.to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 3: Important Information
Important Information IMPORTANT SAFEGUARDS 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. -
Page 4: Safety Precautions
Safety Precautions Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Table Of Contents
Table of Contents Warning…………………………………………………………………………………………………… 2 Important Information…………………………………………………………………………………… 3 Safety Precautions……………………………………………………………………………………….. 4 Table of Contents………………………………………………………………………………………… 5 Components………………………………………………………….. …………………………………. 5 Feature……………………………………………………………………………………………………. 6 Exploring Your New Monitor…………………………………………………………………………….. Backside Connections…….………………………………………………………………………….…. 8 Setup your Monitor………………………………………………………………………………………. 9 Remote Controller………………………………………………………………………………………..10 Video/HDMI Setting……………………………………………………………………………….………15 VGA Setting………………………………………………………………………………………………. .16 Audio Setting……………………………………………………………………………………………… .17 PIP Setting…………………………………………………………………………………………….….. -
Page 6: Feature
Feature Professional TFT LCD for surveillance. Compatible with VGA(640 x 480), SVGA(800 x 600),XGA(1024 x 768), SXGA(1280 x 1024) resolution, FULL HD (1920x1080) All plastic case. Video input HDMI x 1 / BNC x 1 / VGA x 1. Video output BNC x 1. Audio input RCA x 2 / phone jack x 1. -

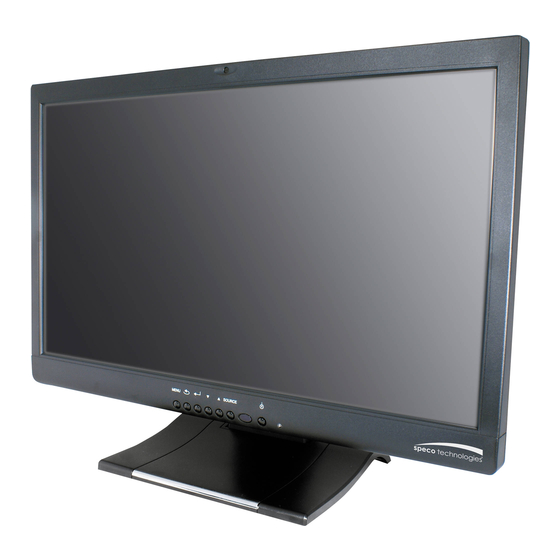

Page 7: Exploring Your New Monitor
Exploring Your New Monitor You can operate your monitor by using the buttons on the front panel. The side panels provide the inputs to connect other equipment to your monitor. Front Panel Menu button Menu return button and exit Menu enter button Menu item down button Menu item up button Video source select button... -
Page 8: Backside Connections
Backside Connections Illustration： 1. Power in :DC 12V input 2. HDMI: HDMI input(1080p) 3. VGA: VGA input (VGA cord pin4 and pin11 N/A) 4. RS485 (Disabled) 5. PC AUDIO IN: PC audio input 6. AUDIO IN: Audio input. RCA jack. ... -
Page 9: Setup Your Monitor
Setup your Monitor MENU: OSD menu ON / OFF control.(EXIT Item) RETURN: Return to last page ENTER: Auto-optimize displaying picture under PC mode. Enter: This “ Auto” Button can be either “Enter” function in OSD Menu) ADJUST: Increase or decrease the value on OSD menu. Up: Increase value or turn ON / OFF function. -
Page 10: Remote Controller
Remote Controller... - Page 11 Key Define LCD power on / off RS485 menu setup LCD / DVR / CAM OSD item select up/down/left/right key DVR playback status LCD / DVR / CAM control mode switch Call desire LCD / DVR / CAM Device Menu Displays the LCD source information LCD volume setup LCD audio soundless...
- Page 12 For SDI switch depends on model Direct to select the VGA source input For HDMI / DVI switch depends on model Jump to Picture in picture of screen display Picture in picture of screen source select Picture in picture of screen source exchange Picture ratio under / full / over select (Disabled) Channel sequence...
- Page 13 Manual record Jump to time search of playback mode Jump to backup mode (Disabled) PTZ dome ID select / Set;Call;Clear preset DVR full channel select FOCUS PTZ dome’s Lens in manual focus PTZ dome’s Lens in manual focus IRIS PTZ dome’s Lens in manual Iris PTZ dome’s Lens in manual Iris ZOOM Control PTZ dome’s Lens zoom in and out...
- Page 14 PRESET Set a preset point Call a preset point Clear a preset point...
-
Page 15: Video/Hdmi Setting
Video/HDMI Setting Brightness: Adjusts the overall picture shade and brightness. Contrast: Permits adjustment of contrast between light and dark areas of the picture. Saturation: Adjusts the intensity of the color. Hue: To determine the lightness and colorfulness of the picture. Sharpness: Sets the desired sharpening enhancement to the picture. -
Page 16: Vga Setting
VGA Setting Brightness: Adjusts the overall picture shade and brightness. Contrast: Permits adjustment of contrast between light and dark areas of the picture. Auto Adjustment: Picture adjustment automatic correction, like clock and phase. Image H Position: Allows adjustment for horizontal position. Image V Position: Allows adjustment for vertical position. -
Page 17: Audio Setting
Audio Setting Volume: Controls built-in speakers’ output volume. Balance: Adjusts the softness or loudness of notes in the sound. Mute: Disables the audio function. To enable, press MUTE again. -
Page 18: Pip Setting
PIP Setting PIP Mode: This function allows the PIP mode to be selected. PIP Source: This function allows the source of the PIP to be selected. PIP Swap: This function allows the position of PIP to be exchanged. POP Zoom: Only Operate under POP (Side By Side) mode. -
Page 19: System Setting
System Setting ack Mount Aspect Ratio: To change the display mode. Auto Source Detection: The monitor will auto detect the video source when power ON. Color Temperature: Selects color temperature of either 6500°K or 9300°K. Key Lock: The Key-Lock function is provided to prevent tempering. To unlock, press Channel Display: This function is to allow the channel title to be displayed on the... -
Page 20: Troubleshooting
Troubleshooting Before calling a service technician, please check the following table for a possible cause of the problem and some solution. Symptom Solution Monitor will not turn on ● Make sure the power cord is plugged in, then press POWER button No picture, no sound ●... -
Page 21: Applicable Timing
Applicable Timing VGA Timing There are a total of 11 timing modes that can be saved in memory by FIFO detecting architecture. VGA Support Timing Mode Resolution H Freq. V Freq. Pixel 21.5” (kHz) (Hz) clock 1920*1080 60Hz (MHz) 640x480@60 31.469 59.940 25.175... -
Page 22: Lcd Color Monitor Specifications
LCD Color Monitor Specification Model M19LED M21LED Button Control Power / OSD Control / Source Display Resolution 1920 x 1080 1920 x 1080 640 x 480 @ 60/72/75 800 x 600 @ 56/60/72/75 1024 x 768 @ 60/70/75 1280 x 1024 @ 60/75 Supported Resolutions 1280 x 720 @ 60 1360X768 @ 60... - Page 23 Input Impedance 75 ohm Output Signal 1.0Vp-p±0.2Vp-p composite video ( Auto Termination) Scanning system NTSC:525 lines, 60 fields / sec ; PAL:625 lines, 50 fields / sec Video Input / Output HDMIx1, Video In x 1 (BNC), Video Out x 1 (BNC), VGA x 1, Audio Input RCA jack x 2(L/R), PC-Audio In x 1 RS485 jack...
