Speco M284K User Manual

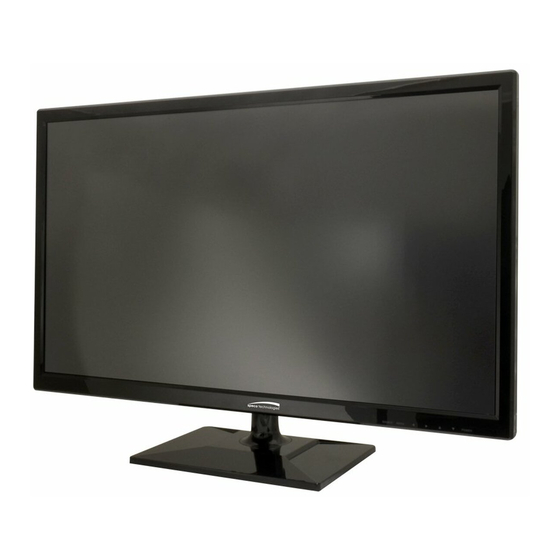

28 inch 4k led monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
28" 4K LED monitor
User Manual
M284K

Advertisement

loading
Need help?

Need help?

Do you have a question about the M284K and is the answer not in the manual?

Questions and answers

Related Manuals for Speco M284K

Summary of Contents for Speco M284K

  • Page 1 28” 4K LED monitor User Manual M284K...
  • Page 2 CONTENTS Safety Information ……….…….…………………………………………………………….………………2 What’s included ……………..………………………………………………………………………………... 4 Getting Started…………………………………..………………………………………………..…………... 8 Troubleshooting……….…………………………………………………………………………………..14 Specification……………………………………………………………………………………….…………... 15 2 of 15...
  • Page 3 Only use attachments/accessories specified by the Speco Technologies.  Use only with a cart, stand, tripod, bracket or table specified by the Speco Technologies or sold with the apparatus. When a cart or stand is used, use caution when moving it to avoid any injuries or damage from it tipping over.
  • Page 4  Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit yourself is dangerous and may invalidate the product’s warranty. Only qualified personnel should service this apparatus.  To avoid battery leakage, remove exhausted batteries from the remote control when not in use for a long period.
  • Page 5 WHAT’S INCLUDED User manual Power supply Power cable HDMI Monitor with dimension details : Way of a liquid crystal display background / audio output 1.DC input port: this port power cord It will be used to supply the power ; 5 of 15...
  • Page 6 2. HDMI 1 port: This port is HDMI 2.0 It will be used to connect a compatible device. Support HDMI 1.4 & 2.0 ; 3. HDMI 2 port: This port is HDMI 2.0 It will be used to connect a compatible device. Support HDMI 1.4 & 2.0 ; 4.DP 1 This port Display Port 1.2 It will be used to connect a compatible device.
  • Page 7 1. SOURCE : Press this button to select the source or exit menu. 2. MENU : To enter menu setting page. Press this button to move left to select the OSD setting. Press this button to move right to select the OSD setting Press this button to move up to select the OSD setting 6.
  • Page 8 GETTING STARTED BUTTON FUNCTIONS SETTINGS INITIAL SETUP Connect the monitor to a power outlet. 1. Press the POWER button on the monitor or to turn it on(the indicator will be lit blue) 2. Connect the relevant cable to the corresponding source on the monitor. The input should be automatically detected.
  • Page 9 PICTURE SET BRIGHTNESS It allows the change of image brightness, according to ambient light. Value “0-100” Contrast It allows the change of contrast between white and black areas of the image. Value “0-100” PICTURE MODE It allows the change of the image settings among the following:” SRGB –ENERGY SAVE- STANDARD-TEXT-MOVIE-GAME”.
  • Page 10 IMAGE H. POSITION It allows to change horizontal position of the display image. Press “3” and “4” buttons to horizontally move the image. V. POSITION It allows to change vertical position of the display image. Press “3” and “4” buttons to vertically move the image.
  • Page 11 COLOR TEMP. COLOR TEMP. It allows to change the color settings among the following: ”Warm – Cool – User”, in “ User” option, you can select “ Red : 0-100, Green: 0-100, Blue : 0-100 “. SATURATION It allows to change colors of the image Only used in NTSC system.
  • Page 12 OSD SETTING LANGUAGE It allows to select the desired language: “ENGLISH, FRENCH, TURKCE, ITALIANO, ESPANOL, PORTUGUES, CHINESE, NEDERLANDS, JAPANESE, DEUTSCH, POLSKI”. OSD H. POS It allows to change the horizontal position of the OSD OSD V. POS It allows to change the vertical position of the OSD OSD TIMER It allows to set up the duration of the OSD, value “0-100”.
  • Page 13 RESET IMAGE AUTO ADJUST It allows to auto adjust the image. COLOR AUTO ADJUST It allows to auto adjust the image color. RESET It allows to set up to the factory default. OD is Over driving and it allows to set up the image overdriving. MISC.
  • Page 14 SIGNAL SOURCE It allows to choose the signal source of the display “ HDMI1, HDMI2, DP1, DP2, AUTO”. LOW BLUE LIGHT It allows to choose the low blue effect of the display, value : 0-25-50-75-100. VOLUME It allows to change the volume of the monitor from “ 0-100”. MUTE It allows to set up the volume on or off.
  • Page 15 M284K Panel Type 28'' (16:9) LED Backlit Monitor Case Type Plastic Best Resolution 3840(H) x 2160(V) @ 60 Hz Active Display Area 648.9 (H) X 369.3 (V) Pixel Pitch 0.16 (H) x 0.16 (V) Contrast Ratio 3000:1 Typical Brightness 280 cd/m²...
