Speco VMS-2 Specifications

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

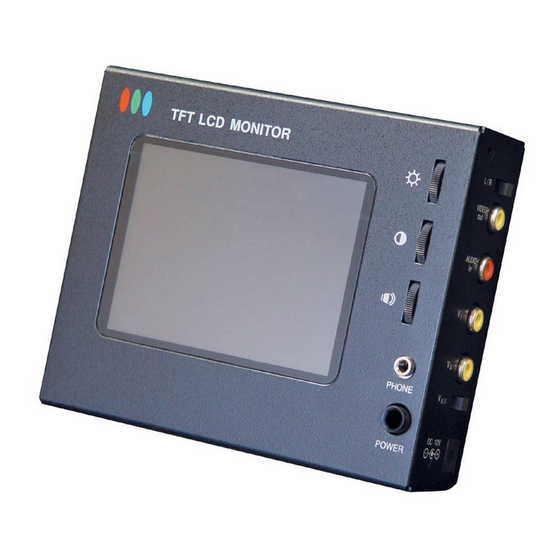

VMS-2
Portable CCTV Installation & Test Monitor
In a Soft Light-Weight Carrying Case
The VMS-2 portable test monitor is an installer's dream. The ultra-bright high resolution display
makes camera adjustments a snap in even the brightest conditions. The lightweight soft carry
case can be worn over the shoulder or around the waist for safe and convenient viewing under
all conditions. Included in the case with the monitor is a 1000ma rechargeable battery for
extended operation. The VMS-2 includes a battery charger, video cable and other accessories to
make your jobs go faster. The built in phone jack even allows you to test and monitor an audio
signal if available.

Specifications

LCD technology
Display size
Active area
Color system
Synchronization
Resolution
Audio level
Charging time
Input Video Signal
Dimensions (Monitor)
Dimensions (Bag)
Weight
For more information contact us at:
TFT active matrix
4"
82.1 x 61.8mm
NTSC
Horizontal 15,625Hz, Vertical 60Hz
480 x 234, 112,320 pixels
1V/10K
8 hours charging time, 4 hours operating time
1.0 Vp-p (sync, negative) termination 75 ohm
6"W x 5.04"H x 3"D
7.75" W x 5.1" H x 2.55" D
2.2 lbs.
