Summary of Contents for Speco PVM10

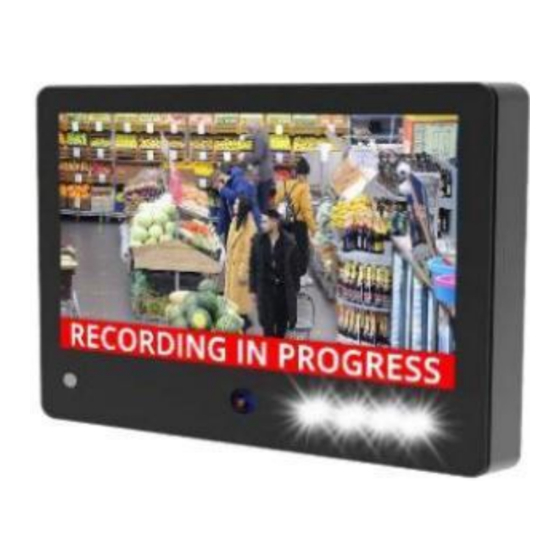

- Page 1 SPECO PVM10 Manual User Manual PVM10 Public View Monitor with built-in IP Camera Please read this manual carefully before operating the unit and keep it for further reference...
- Page 2 SPECO PVM10 Manual Important Safeguards and Warnings ⑴. Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC 2A Class2 power adapter (not included) or adequate PoE switch. Improper handling and/or installation could run the risk of fire or electrical shock.
- Page 3 Product, manuals, and specifications may be modified without prior notice. Speco Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Regulatory Information FCC conditions: This device complies with part 15 of the FCC Rules.
-
Page 4: Table Of Contents
CONTENTS 1.Features of the PVM10 ............... 2 2. Interfaces of SPECO PVM10 ..............3 3. IP Tool for SPECO PVM10 ..............4 3.1 IP Tool Installation ................4 3.2 Camera Information ................. 4 4. Built-in NDAA Compliant IP Camera Operation ......5-15 4.1 Web Login .................. -
Page 5: Features Of The Pvm10
SPECO PVM10 Manual 1. Features of the PVM10 PVM10 Features ①. Unobtrusive form factor for retail shelves. ②. Incorporates a high-definition (2MP) camera to view and record area. ③. Has customizable features such as establishment logo, warning/welcome message banner, and audible warning/welcome message. -
Page 6: Interfaces Of Speco Pvm10
SPECO PVM10 Manual 2. Interfaces of SPECO PVM10 Full Screen IP Video Full Screen AD 16:9 IP Video & AD External interfaces: ① . POE&RJ45 ② . USB Type-C ③ . DC Power Input ④ . PIR Out ⑤ . Alarm In ⑥... -
Page 7: Ip Tool For Speco Pvm10
SPECO PVM10 Manual 3. IP Tool for SPECO PVM10 3.1 IP Tool Installation Customers can use our IP Config Tool to search/modify/factory reset/FW upgrading, etc. 3.2 IPC Default Information Default address: 192.168.0.66 (DHCP default enabled) Default username and PW: admin (PW is required to modify when you log in Web at... -
Page 8: Built-In Ndaa Compliant Ip Camera Operation
SPECO PVM10 Manual 4. Built-in NDAA Compliant IP Camera Operation Guiding 4.1 Web Login Please type in correct IP address of your PVM on browser, and: 1. Type in default PW “1234”; 2. Enter into PW change page and change your PW (PW is forced to change to ensure... -
Page 9: Preview Page
SPECO PVM10 Manual 4.2 Preview Page (Main Stream) 4.3 Backup Record Files: Alarm/Timed/Manual/Face Detection Download Format: IVD/MP4/JPG... -
Page 10: Settings
SPECO PVM10 Manual 4.4 Settings Including: Config Media/Network/Alarm Config/Record/System/Intelligence/PVM Function 4.4.1 Config Media Please note: 1. Audio Codec: Support G711U/G711A (This is for PVM Audio) 2. Output level: 0-9 levels (This is for PVM Audio Volume Adjustment) -
Page 11: Network
SPECO PVM10 Manual 4.4.2 Network Including: TCP/IP, Email, FTP, UPNP, RTSP and WIFI. Please Note: 1.HTTP Port: 80 2. Onvif Port: 80 3. RTSP Port: 554, and instruction is below: rtsp://192.168.0.66:554/H264?channel=1&subtype=0&unicast=true&proto=Onvif/video Note: subtype=0 (main stream) ; subtype=1 (sub stream) -
Page 12: Alarm Config
SPECO PVM10 Manual 4.4.3 Alarm Config Including: Motion Detection/Tampering Alert/Alarm/PIR Please note: 1. Motion detection is defaulted to “Enable” as well as “Record Video”; 2. PIR is default “Enable” and alarm time is 10s setting. 3. T o set motion detection region/sensitivity/threshold, please enter “Regional Edit”. -
Page 13: Record
SPECO PVM10 Manual 4.4.4 Record Including: Schedule/SD Storage/Snapshot/Destination/NAS//System Log Please note: 1. Ensure your PVM is powered off before you insert TF/SD card for remote recording; 2. After power up, please format your TF/SD card;... -
Page 14: System
SPECO PVM10 Manual 4.4.5 System Including: Maintenance/Device Info/Set Time/User Admin Please note: 1. You can perform a factory default for your PVM on this page, after default, please use our IP tool to search and find out new IP address and login;... -
Page 15: Intelligence
SPECO PVM10 Manual 4.4.6 Intelligence The PVM10 can detect faces. This feature is can be an alternative to using motion or PIR triggers to reduce message fatigue. Please note: 1. The PVM10 has an alarm out interface for faces, so when face alarm output is needed in application, you can enable “Alarm output”;... -
Page 16: Pvm Function
SPECO PVM10 Manual 4.4.7 PVM Functions Including: Banner/Ad/LCD Config. This category is highly related with Smart AD function. Banner: Including Brand Image/Deterrence Message/Audio 3 functions. Please note: 1. You can upload your logo and show on PVM; 2. You can define the logo’s position and size on the PVM;... - Page 17 SPECO PVM10 Manual Ad Function: Including Screen Mode and Play List 2 functions. Screen Mode: Full Screen/Banner Full Screen: Full Screen IP video or Full Screen AD; If you choose Full Screen, but do not upload AD files in this page, then the PVM will show full screen no-latency IP video;...
- Page 18 SPECO PVM10 Manual LCD Config: Including LCD Time Switch Schedule and LCD Brightness 2 functions. Please note: 1. LCD Bright’s default value is 7, Max is 9; When you set to 0, PVM screen is black. 2. Time Switch Schedule means you can set when PVM sleep & wake, when PVM enter into sleep mode, the built-in IP camera will still work for cctv monitoring.
