- Page 1 M17VLED (17” CCTV LED Monitor) M19VLED (19” CCTV LED Monitor) USER MANUAL Speco Technologies 200 New Highway Amityville, NY 11701 800-645-5516 www.specotech.com...
-
Page 2: Warning
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION: CAUTION Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 3: Important Safeguards
Important Information IMPORTANT SAFEGUARDS 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. 2. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. 4. -
Page 4: Safety Precautions
Safety Precautions Safety, Regulatory and Legal Information US Regulatory compliance statements Your LCD AV has been tested and found to comply with the limits for a Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 5 Safety Precautions Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 6: Table Of Contents
Table of Contents Warning…………………………………………………………………………………………………2 Important Safeguards…………………………………………………………………………………………3 Safety Precautions……………………………………………………………………………………………4 Table of Contents……………………………………………………………………………………………6 Components…………………………………………………………………………………………………6 Feature…………………………………………………………………………………………………………7 Exploring Your New Monitor…………………………………………………………………………………8 Function Keys Instruction for AV……………………………………………………………………………9 I/O Connection………………………………………………………………………………………………10 OSD (On Screen Display)…………………………………………………………………………………10 AV/S-Video OSD-Image……………………………………………………………………………………11 AV/S-Video OSD-Audio……………………………………………………………………………………12 AV/S-Video OSD-Setup……………………………………………………………………………………13 VGA OSD-Image……………………………………………………………………………………………14 VGA OSD-Audio……………………………………………………………………………………………15 VGA OSD-Setup……………………………………………………………………………………………16 Applicable Timing……………………………………………………………………………………………17 Specification…….……………………………………………………………………………………………18 Wall Mountable………………………………………………………………………………………………19... -
Page 7: Feature
Feature ★ Bright, flick-free image ★ Accurate color processing ★ Multi-Scan support ★ Built-in internal amplifier and speakers ★ 1280*1024 SVGA support for computer input (17”/19”) -
Page 8: Exploring Your New Monitor

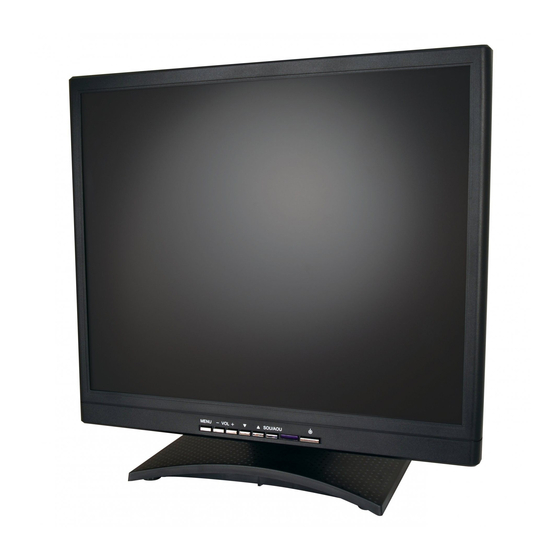

Exploring Your New Monitor You can operate your monitor by using the buttons on the front panel. Front Panel Back Side... -
Page 9: Function Keys Instruction For Av
Function Keys Instruction for AV Up: Select menu item Down: Select menu item MENU Menu: Push this button to display the main OSD menu / select item of next level Right : Increase the setting of selected item Left : Decrease the setting of selected item SOU/AOU Source: Change input source / to return to last OSD control level Power: Turn on or off the monitor power... -
Page 10: I/O Connection
I/O Connection: Illustration： ●Video Out is present “AV video out” ●Video In is present “AV video in” ●PC Audio In is present “PC audio in” ●Audio In 1 is present “AV audio in” ●Audio In 2 is present “S-Video audio in” ●S-Video In is present “S-Video video in”... -
Page 11: Osd (On Screen Display)
OSD (On Screen Display) AV / S-Video OSD - Image Scheme: Normal / Vivid / Cinema Brightness: Picture brightness adjustment Min. ~ Max.:0~100 / Default:70 Contrast: Picture Contrast adjustment Min. ~ Max.:0~100 / Default:80 Hue: To adjust the color tint value Min. -
Page 12: Av/S-Video Osd-Audio
AV / S-Video OSD - Audio Controls built-in speakers’ output volumes Volume: Min. ~ Max.:0~29 / Default:20 Balance: Adjusts the volume between speakers Min. ~ Max.:0~20 / Default:10 Mute: To disable the audio function... -
Page 13: Av/S-Video Osd-Setup
AV / S-Video OSD – Setup Auto Source: The monitor will auto detect the input source when the signal is not present Color Temp: Selects color temperature of either 6500°K or 9300°K Key Lock: The Key-Lock function is provided to prevent tempering. To unlock, press “+”... -
Page 14: Vga Osd-Image
VGA OSD - Image Brightness: Picture brightness adjustment Min. ~ Max.:0~100/ Default:70 Contrast: Picture contrast adjustment Min. ~ Max.:0~100 / Default:80 Advanced: ●Auto Adjust: VGA signal auto detection and adjustment ●Image Pos: Image position adjustment include H. V. ●Phase: It adjusts the sampling phase across one pixel time. When the phase is not adjusted properly, the picture will be unclear Therefore this value should be carefully adjusted Note: improper adjustment will cause image failure... -
Page 15: Vga Osd-Audio
VGA OSD - Audio Controls built-in speakers’ output volumes Volume: Min. ~ Max.:0~29 / Default:20 Balance: Adjusts the volume between speakers Min. ~ Max.:0~20 / Default:10 Mute: To disable the audio function... -
Page 16: Vga Osd-Setup
VGA OSD - Setup Auto Source: The monitor will auto detect the input source when the signal is not present Color Temp: Selects color temperature of either 6500°K or 9300°K Key Lock: The Key-Lock function is provided to prevent tempering. To unlock, press “+”... -
Page 17: Applicable Timing
Applicable Timing VGA Timing There are a total of 11 timing modes that can be saved in memory by FIFO detecting architecture. VGA Support Timing 17” Mode Resolution H Freq. (kHz) V Freq. Pixel 19” (Hz) clock 1280*1024 1280*1024 (MHz) 75Hz 75Hz ˇ... -
Page 18: Specification
Specification Model 17” 19” Display Resolution 1280 x 1024@75Hz 1280 x 1024@75Hz (Panel) Active Area (mm) 337.920 (H) x 270.336 (V)mm 376.32(H) x 301.056 (V)mm Pixel Pitch 0.264mm 0.294mm LCD Profile Ratio Display Color 16.7M colors Brightness (Central) 250 cd/㎡ Typ. Contrast Ratio 800 : 1 typ. -
Page 19: Wall Mountable
Wall mountable Wall Mountable M4 x 16L User please use the correct screw type when installation. The desktop bracket and mount type bracket can use the same screw... -
Page 20: Dimension
Dimension 17” LCD 19” LCD...
