Connect the SUV cable to the server blade.
1.
Connect the video connector to a monitor.
2.
Connect a USB mouse to one USB connector.
3.
Connect a USB keyboard to the second USB connector.
4.
Item
1
2
3
4
5
6

Accessing a server blade with local media devices

Use the following configuration when configuring a server blade or loading software updates and
patches from a USB CD/DVD-ROM or a USB diskette.
Use a USB hub when connecting a USB diskette drive and/or USB CD-ROM drive to the server blade. The
USB hub provides additional connections.
Connect the SUV cable to the server blade.
1.
Connect the video connector to a monitor.
2.
Connect a USB hub to one USB connector.
3.
Connect the following to the USB hub:
4.
USB CD/DVD-ROM drive
o
USB keyboard
o
USB mouse
o

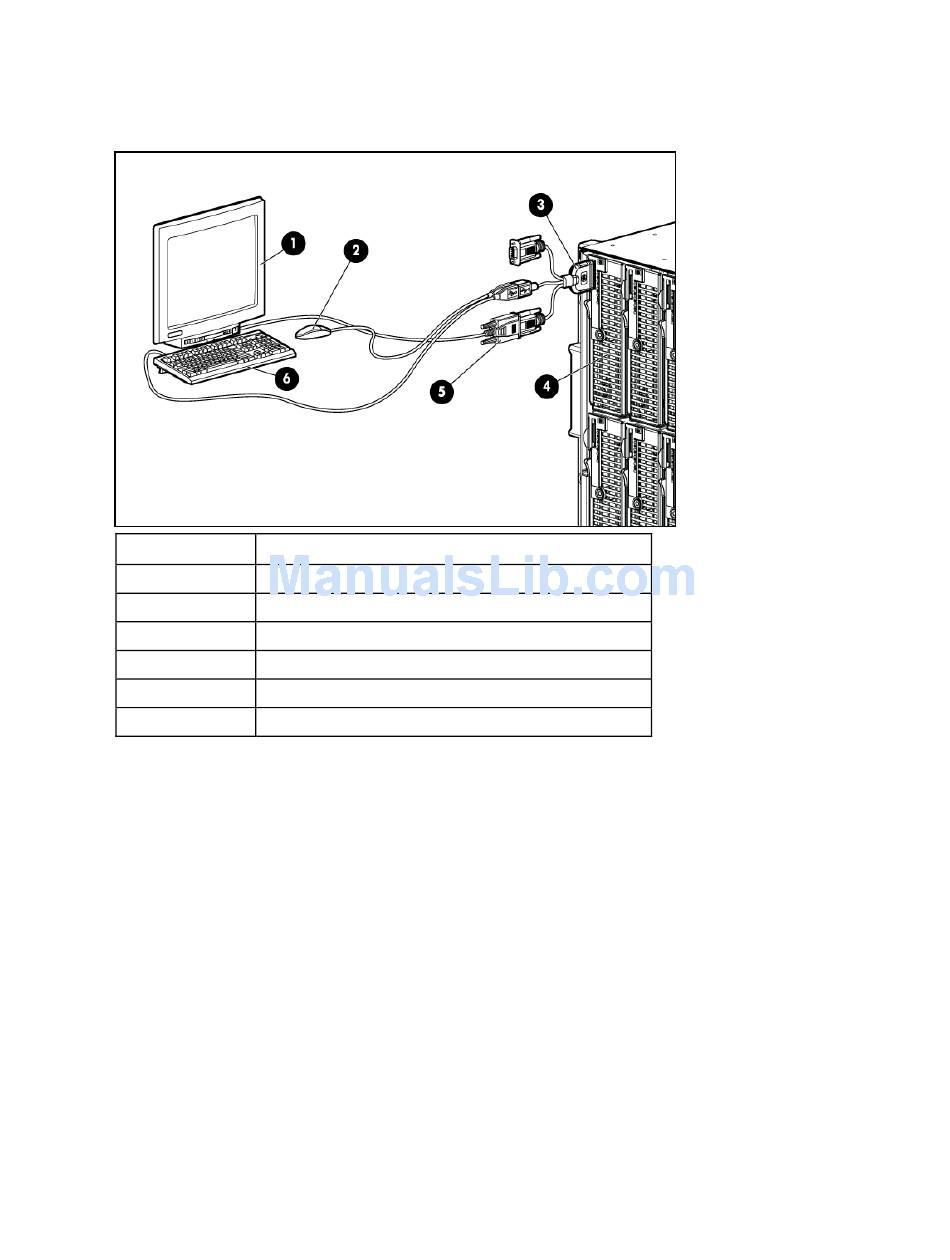

Description
Monitor
USB mouse
HP c-Class Blade SUV Cable
Server blade
Video connector
USB keyboard
Cabling 51
