CAUTION: When installing midline SATA hard drives in the server blade, always install the
standard hard drive screws provided with the server blade. Installing the long hard drive
screws located on the hard drive spacer can damage the hard drive.

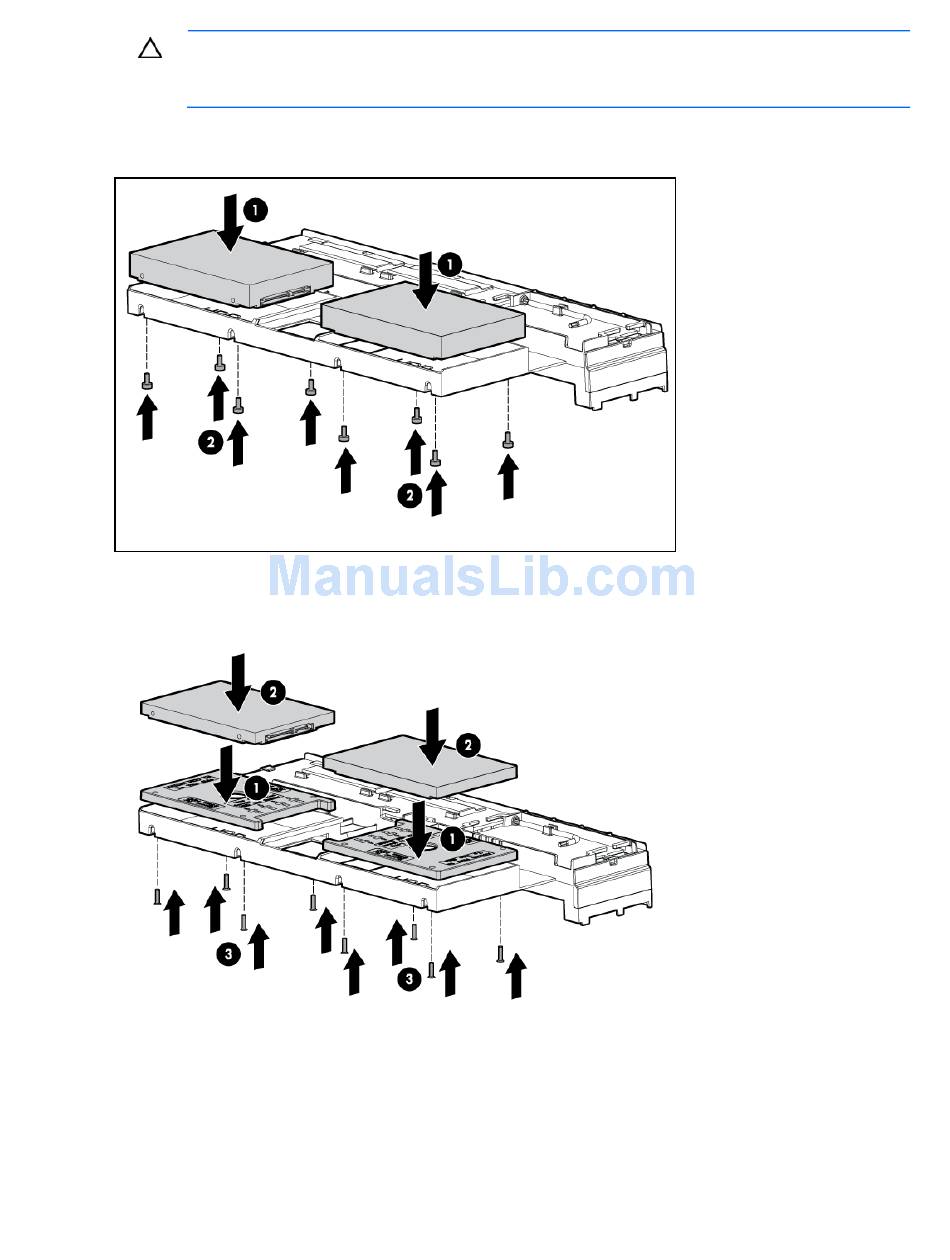

Install the midline SATA hard drives. Secure the hard drives to the air baffle with the standard
o
hard drive screws.
Install the SATA hard drives (9.5 mm) and hard drive spacers. Secure the hard drives and
o
spacers to the air baffle with the long hard drive screws. The long hard drive screws are stored
on the hard drive spacer.
Connect hard drive cable 1 to hard drive 1.
6.
Connect hard drive cable 2 to hard drive 2.
7.
Hardware options installation 23
