Craftsman 320.23465 Operator's Manual

2.0 amp variable speed multi-tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

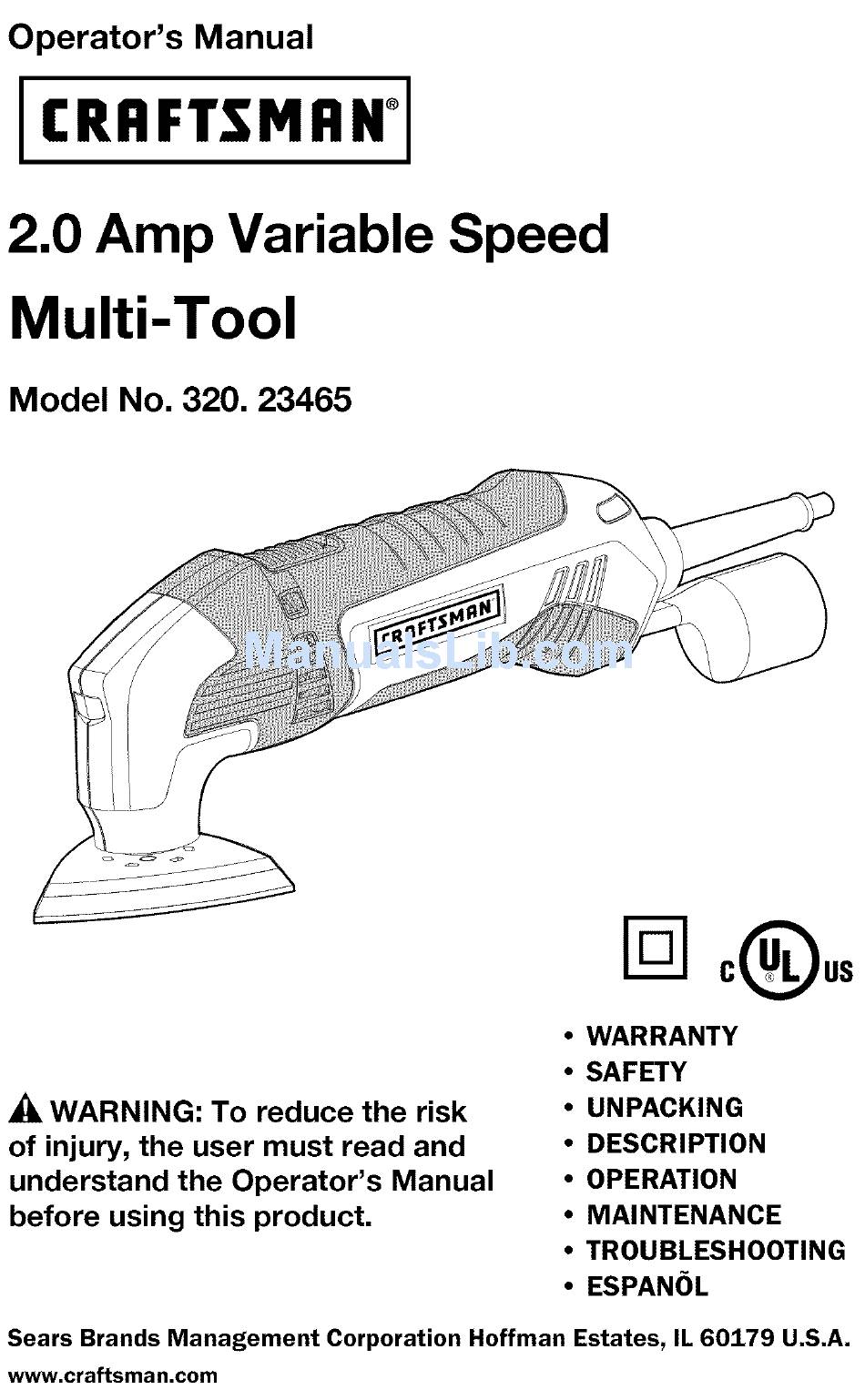

Operator's
Manual
I CRAFTSMRN°I
2.0 Amp Variable Speed
Multi-Tool
Model No. 320. 23465
_l_ WARNING:
To reduce the risk
of injury, the user must read and
understand
the Operator's
Manual
before using this product.
c_ius
• WARRANTY
• SAFETY
• UNPACKING
• DESCRIPTION
• OPERATION
• MAINTENANCE
• TROUBLESHOOTING
• ESPANOL
Sears Brands Management
Corporation
Hoffman
Estates,
IL 60179
U.S.A.
www.craftsman.com

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 320.23465

Summary of Contents for Craftsman 320.23465

  • Page 1 _l_ WARNING: To reduce the risk • DESCRIPTION of injury, the user must read and • OPERATION understand the Operator's Manual • MAINTENANCE before using this product. • TROUBLESHOOTING • ESPANOL Sears Brands Management Corporation Hoffman Estates, IL 60179 U.S.A. www.craftsman.com...

  • Page 2: Table Of Contents

    Page 29-31 Cratsman Repair Parts Phone Number Back Cover CRAFTSMAN ONE YEAR LIMITED WARRANTY FOR ONE YEAR from the date of purchase, this product is warranted against any defects in material or workmanship. With proof of purchase, defective product will be replaced free of charge.

  • Page 3: Safety Symbols

    The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention...
  • Page 4 Some of these following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles...
  • Page 5 WARNING: Be sure to read and understand all instructions in this manual before using the Multi-Tool. Failure to follow all instructions may result in electric shock, fire and/or serious personal injury. A_, WARNING: Do not attempt to operate this tool until you have thoroughly read all instructions, safety rules, and warnings.
  • Page 6 When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
  • Page 7 • Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or the battery from the power tool before making any adjustments, changing accessories,...
  • Page 8 Exercise extreme caution when handling the scraper accessory. accessory is very sharp; danger of injury. Use only the original Craftsman accessories and the other accessories (Fein _ Multi-Master accessories)

  • Page 9: Unpacking

    Do not restart a cutting operation in the workpiece. To resume a cutting operation: while keeping the tool from contacting the workpiece, allow the tool reach full speed and then carefully guide the cutting accessory into the cut. • Keep your hands away from the cutting area.
  • Page 10 • Vacuum Adapter • Manual Inspect the items carefully to make sure that no breakage or damage has occurred during shipping. If any of the items mentioned is missing, (refer to "PARTS LIST" illustration), return the Multi-Tool to your nearest Sears store to have the Multi-Tool replaced.
  • Page 11 ID]_.'_o_[[e_] KNOW YOUR MULTI-TOOL (Fig. 2) Live tool indicator" LED light Fig. 2 On/Off switch cord LED worklight Vacuum adapter Vents Drive shaft ;}iiii[ii!iiiii[_ Flange bolt Variable speed dial Before attempting to use this Multi-Tool, familiarize yourself with all of its operating features and safety requirements.
  • Page 12 ON/OFF SWITCH (Fig. 3) Fig. 3 Connect the power cord of your Multi-Tool to a standard household power outlet. To turn the tool ON, push the on/off switch forward. To turn the tool OFF, push the switch backward. VARIABLE SPEED DIAL (Fig. 4) The variable speed feature of Fig.
  • Page 13 LIVE TOOL INDICATOR LED LIGHT (Fig. 6) Your Multi-Tool has a "live Live Tool Indictor Fig. 6 tool indicator" green LED LED light light, located on the back of the tool. This light turns on automatically when the Multi- Tool is plugged into a power source.
  • Page 14 SELECTING THE APPLICATION ACCESSORY _h, WARNING: If any part is broken or missing, do not attempt to plug in the power cord or operate the tool until the broken or missing part is replaced. Failure to do so could result in possible serious injury.

  • Page 15: Description

    NOTE: Replacement Craftsman accessories and additional Craftsman accessories are available at Sears and Craftsman retailers. Refer to the model numbers for purchase. Fig. 7 SANDPAPER KIT (67655) DESCRIPTION (Fig. 7) • 24 pieces sandpaper (8 pieces each 60, 120 and 180 grit).
  • Page 16 A sanding sheet that has been used for metal should not be used for other materials. Use only original Craftsman sanding accessories. For sanding, always connect dust extraction. For Rough sanding use 40-80 grit paper.
  • Page 17 TO INSTALL THE CIRCULAR SAW BLADE CAUTION: Wear protective gloves. WARNING: Use sharp, undamaged saw blades only. Deformed, blunt saw blades or saw blades that are otherwise damaged can break. _1, WARNING: When sawing light building materials, observe the precautions and the recommendations of the material suppliers.

  • Page 18: Accessory Tools

    NOTE: The ribs on the Fig. 14 shaft and the grooves in the accessory tools permit a firm connection of the accessory tools in increments of 30 ° around the shaft (Fig. 14). Apply the accessory tool in the orientation appropriate to the task at hand.
  • Page 19 CARBIDE CIRCULAR BLADE Fig. 16 (67650) DESCRIPTION (Fig. 16) The Carbide Circular Blade is designed to cut out the grout around wall tiles. It can also be used to cut plaster, porous concrete and masonry. • Carbide-tipped, circular grout disc. •...
  • Page 20 Align the grooves on the Fig. 19 carbide circular blade with the four raised ribs on the drive shaft; put the carbide circular blade onto the drive shaft. (Fig. 19) With your gloved hand holding the carbide circular blade, put on and tighten the flange bolt using the hex key.
  • Page 21 CUTTING WITH THE CARBIDE CIRCULAR BLADE (Fig. 21) Connect the Multi-Tool to a Fig. 21 power source. Draw the cutting lines on the workpiece. Place the carbide circular blade against the workpiece at a 90 ° angle. Switch on the tool, cut out the grout around the wall tile, then use a hand chisel to remove the tile.
  • Page 22 WARNING: Check that Fig. 24 the accessory tool is correctly attached. Incorrect insecurely fastened accessory tool can come loose during operation and cause a hazard. Disconnect the Multi-Tool from the power source. Loosen the flange bolt with the hex key provided. (Fig.
  • Page 23 USING THE SCRAPER BLADE (Fig. 27) Connect the Multi-Tool to a Fig. 27 power source. To scrape, put the tool on the workpiece at a flat angle (not more than 20°), and apply only light pressure so as to not cut into the surface.
  • Page 24 Align the grooves on the Fig. 30 carbide triangular rasp with the four raised ribs on the drive shaft; put the disc onto the drive shaft. (Fig. 30) With your gloved hand holding the carbide triangular rasp put on and tighten the flange bolt using the hex key.
  • Page 25 FLUSH CUT BLADE (67653) Fig. 33 DESCRIPTION (Fig. 33) • Bi-metal, straight-edge, flush-cut blade. • Designed for cutting wood, plastic, drywall, soft metal and other materials. • Can plunge and saw with a slight pendulum action in wood. • Flush Cut blade is also compatible with the Fein ®...
  • Page 26 Multi-Tool Accessories Available Separately Craftsman Sandpaper kit (17374) Craftsman Detail Cutting Blade (17375) Craftsman Rough Cut Blade (17376) Check at sears.com or your Craftsman retailer for additional accessories. 23465 ManuaLRevised_lO 0705 Page 26...

  • Page 27: Maintenance

    Craftsman Parts & Repair Service Center WARNING: For your safety, always turn off the switch and unplug the Multi-Tool motor from the power source before performing any maintenance cleaning.
  • Page 28 LUBRICATION All of the bearings in this tool are lubricated with a sufficient amount of high- grade lubricant for the life of the tool under normal operating conditions. Therefore, no further lubrication is required. b/_l[l_ [,,1][[I][I]llll]_] PROBLEM CAUSE SOLUTION Be sure cooling vents Clean, clear vents.
  • Page 29 __.. 4--, "0 "0 c'-" 0 .I..o °2o .__ _ .I..o...
  • Page 30 2.0A Variable Speed Multi-Tool MODEL NUMBER 320.23465 The Model Number will be found on the Nameplate attached to the handle of the Multi-Tool. Always mention the Model Number when ordering parts for this tool. 3121045000 Cord Guard 3120234000 Cord Anchorage 4890690000 PCB Assembly 3125549000...
  • Page 31 3700352000 Washer 5700205000 Ball Bearing 5660144000 Circlips For Shaft 3125185000 Dust Cover 2823034000 Drive Housing ASSY 5700022000 Needle Bearing 3421144000 Drive Housing 5700053000 Needle Bearing 3421179000 Lever 5700048000 Ball Bearing 5660020000 Circlips For Hole 3551577000 Spindle 5690018000 O Ring 5650300000 Washer 5620445000 Screw...

  • Page 32: Troubleshooting

    Your Home For troubleshooting, product manuals and expert advice: managemylife www.managemylife.com For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories and owner's manuals that you need to do-it-yourself.
