X-80 SPECIFICATIONS
Output :
Voltage RMS :
Peak :
Power :
Peak-to-peak output current :
Damping factor :
Output devices per channel :
Pre-output impedance :
Line inputs :
Total harmonic distortion + noise :
Signal / noise ratio :
Input sensitivity for 55Watts, 8 Ohms :
Input impedance :
Overload margin :
Channel separation :
Frequency response :
Input facilities :
Output facilities :
Power requirement :
Dimensions :
Weight :
Standard accessories :
Musical Fidelity reserves the right to make improvements which may result in specification
or feature changes without notice.
X-80 Integrated Amplifier
21 Volts 20Hz to 20kHz, one channel loaded
59 Volts
55 Watts one channel into 8 Ohms (17.4dBW)
85 Watts one channel into 4 Ohms
28 Amps
77
2
50 Ohms
.
< 0
02% 20Hz to 20kHz
> 93dB 'A'-weighted
175mV
220k Ohms
29dB
> 55dB typical
.
20Hz to 20kHz, + 0, - 0
4dB
4 pairs line level RCA connectors
2 amplifier channels via 1 pair per channel binding posts.
1 pair RCA audio outputs controlled by the volume,
1 pair RCA tape record fixed line level output.
100 / 115 / 230Volts AC 50 / 60Hz (factory pre-set),
190 Watts maximum into 8 Ohms, 15 Watts idle.
218mm,
8.6 inches wide
98mm,
3.8 inches high (including feet)
339mm, 13.4 inches deep
(including knob and rear terminals)
6.5 kg,
14.3 lbs unit only, unboxed
8 kg,
17.7 lbs in shipping carton
IEC type mains lead (10-Amp), remote control,
2 batteries size LR03 or AAA, manganese alkaline type
Page 8 of 8

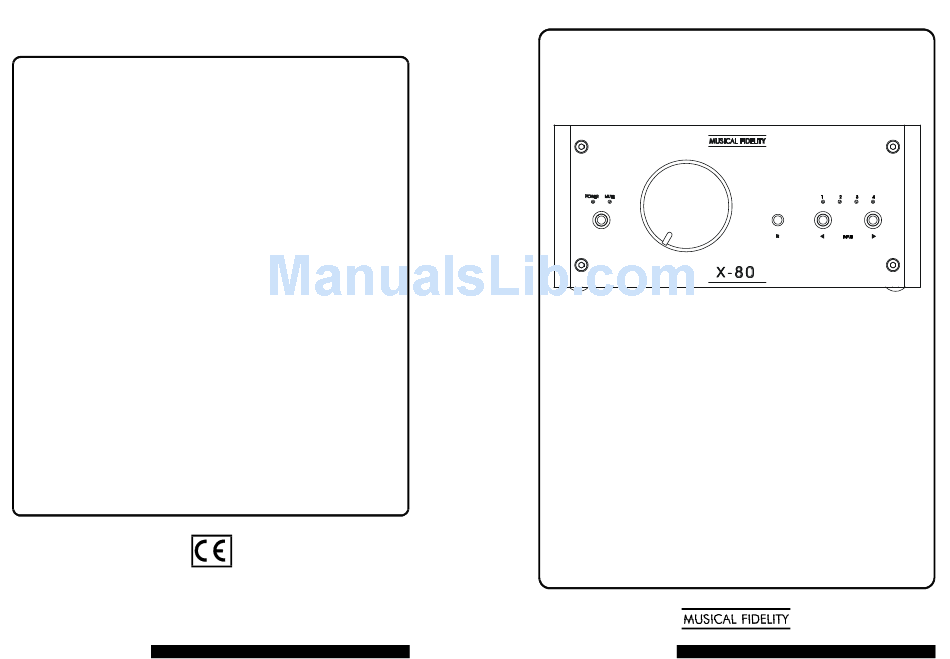

X-80
DUAL MONO INTEGRATED AMPLIFIER
INSTRUCTIONS FOR USE
Thank you for purchasing the Musical Fidelity
X-80 Integrated amplifier.
Used properly and carefully, it should give you many years of
outstanding musical reproduction.
Aesthetically, the X-80 Integrated amplifier is a perfect match for the
X-RAY CD player and X-PLORA FM tuner.
Together, they form one of the finest hi-fi systems available.
Dust regularly with a soft cloth or soft brush, but be careful when
using cleaning or polishing agents - they may harm the surface finish.
If you have any questions about your audio system,
please consult your dealer who is there to help and advise.
X-80 Integrated Amplifier
Issue 4 May 2004
Page 1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Musical Fidelity X-80
Summary of Contents for Musical Fidelity X-80
- Page 1 If you have any questions about your audio system, please consult your dealer who is there to help and advise. Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. X-80 Integrated Amplifier...
- Page 2 Now adjust the volume control to obtain the preferred sound level. WARNING: Any modifications to this product not expressly approved by Musical Fidelity who is the party responsible for standards compliance could void the user’s authority to operate this equipment.
- Page 3 This product has been tested to ensure that its operation is not adversely affected by normal background levels of R.F.I., and that it does not itself generate excessive amounts of interference. However, if a problem persists, please contact your Musical Fidelity agent. X-80 Integrated Amplifier...
- Page 4 Buttons on the remote control with blue-grey surround enable main functions of the ampli- fier to be operated from a convenient distance. Remaining buttons on this universal hand- set are for use with other Musical Fidelity products, and have no effect on the X Integrated amplifier.
