X-SERIES MM/MC INPUT PHONO AMPLIFIER
INSTRUCTIONS FOR USE
Thank you for purchasing the Musical Fidelity X-LPS V8 phono amplifier
This amplifier features our top quality low noise, low distortion phono stage which very closely follows the
RIAA equalisation curve for the optimum in sonic accuracy from vinyl sources. The XLPS V8 caters for both
moving magnet and moving coil cartridges to allow maximum choice when selecting a cartridge.
The X-LPS V8 is a perfect answer to most phono amplifier requirements in a single, beautifully engineered
package.
Used properly and carefully, it should give many years of outstanding musical reproduction.
Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they
may harm the surface finish.
If you have any questions about your audio system,
Please consult your dealer who is there to help and advise.
Advertisement
Table of Contents
Related Manuals for Musical Fidelity X-LPSV8
Summary of Contents for Musical Fidelity X-LPSV8

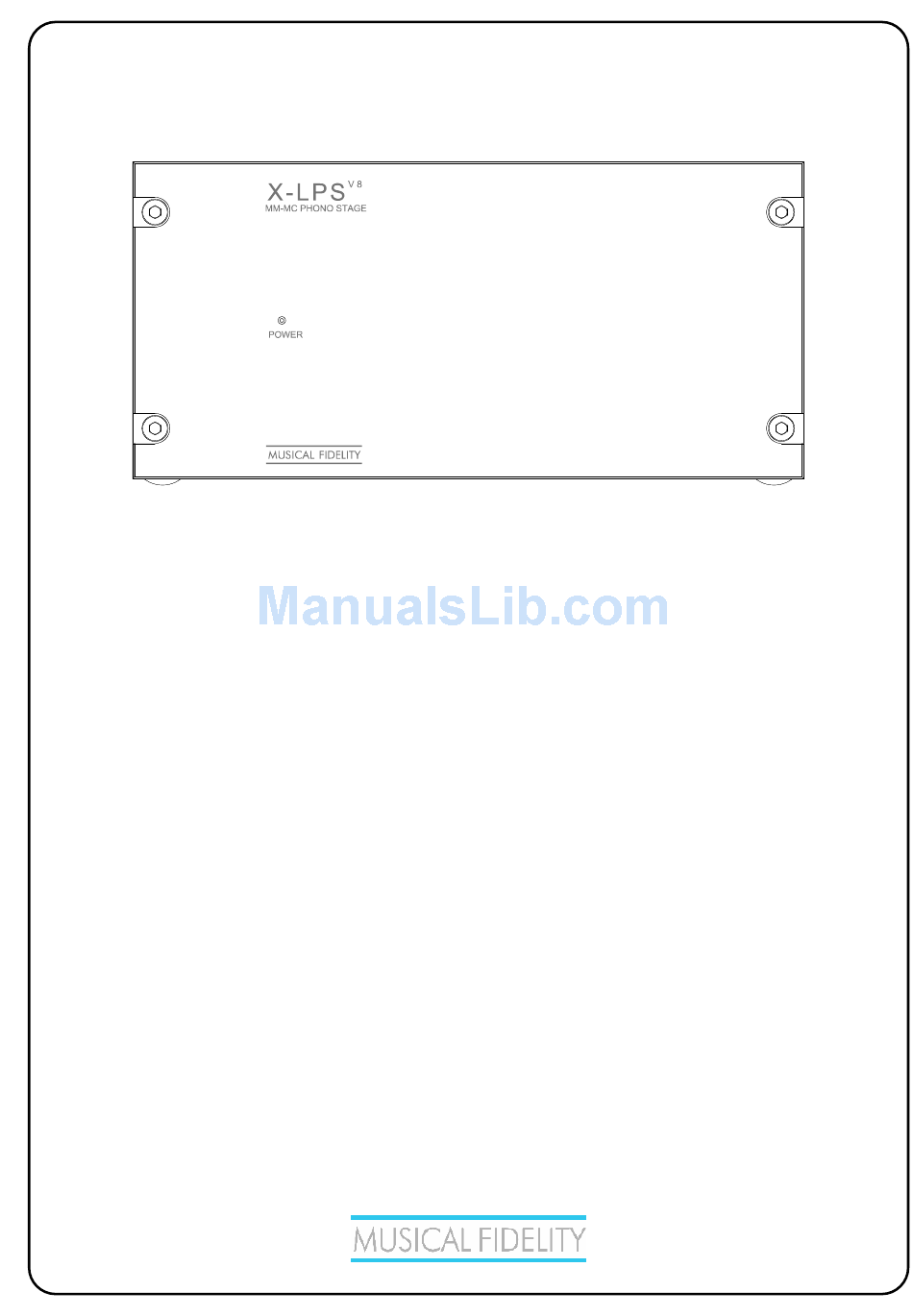

- Page 1 X-SERIES MM/MC INPUT PHONO AMPLIFIER INSTRUCTIONS FOR USE Thank you for purchasing the Musical Fidelity X-LPS V8 phono amplifier This amplifier features our top quality low noise, low distortion phono stage which very closely follows the RIAA equalisation curve for the optimum in sonic accuracy from vinyl sources. The XLPS V8 caters for both moving magnet and moving coil cartridges to allow maximum choice when selecting a cartridge.
-
Page 2: Table Of Contents
X-LPS PAGE Section General advice Disposal information Installation Facilities and connections Amplifier operation Amplifier problems? Amplifier specifications Manual history Issue 1 Installation precautions User information EU disposal information Introduction Cleaning Installation Audio connection Illustrations – Main unit front & rear panels Starting, Inputs, In use Basic amplifier fault finding CONTENTS... -
Page 3: General Advice
Do not remove any covers or try to gain access to the inside. There are no internal adjustments or fuses you can replace yourself. Refer all service work to an authorised Musical Fidelity agent. Note: Unauthorised opening of the equipment will invalidate any warranty claim. -
Page 4: Item Disposal Information
X-LPS DISPOSAL The crossed out wheeled bin label that appears on the back panel o f the product indicates that the product must not be disposed of as normal household waste. To prevent possible harm to the environment please separate the product from other waste to ensure that it can be recycled in an environmentally safe manner. -
Page 5: Installation
DIN 24V AC socket at the back of the unit. We advise that you use only the supplied X-series adaptor for this unit, or a suitable Musical Fidelity power supply. AUDIO CONNECTIONS Inputs: Connect turntable cartridge input to RCA MM or MC inputs as required. -
Page 6: Facilities And Connections
X-LPS 1. POWER LED 2. EARTH 4mm banana post 3. MM/MC Switch 4. MM INPUT RCA sockets Issue 1 FACILITIES AND CONNECTION UNIT FRONT PANEL UNIT REAR PANEL 5. MC INPUT RCA sockets 6. OUTPUT RCA sockets (line level) 7. POWER SUPPLY Input din socket Page 6 of 10... -
Page 7: Amplifier Operation
X-LPS AMPLIFIER OPERATION STARTING Once all connections are made, the power LED on the front panel will light, indicating unit is ready for use. PHONO IN (MM) To use the phono input connect MM cartridge to MM input. Press back panel switch to the MM position (out). PHONO IN (MC) To use the phono input connect MC cartridge to MC input. -
Page 8: Amplifier Problems
MM/MC switch If none of these actions affect a cure, please contact the dealer, or an authorised Musical Fidelity service agent. Remember; never open the case of the X-LPS V8, as this will invalidate the guarantee. -
Page 9: Amplifier Specifications
Deep including terminals Unboxed Boxed unit including power supply and all accessories Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. P H O N O R E S P O N S E... -
Page 10: Issue 1
X-LPS MANUAL REVISION RELEASE DATE CHANGES Issue 1 October 2007 Issue 1 Page 10 of 10...
