Musical Fidelity X-150 Instructions For Use

Musical Fidelity X-150 Instructions For Use

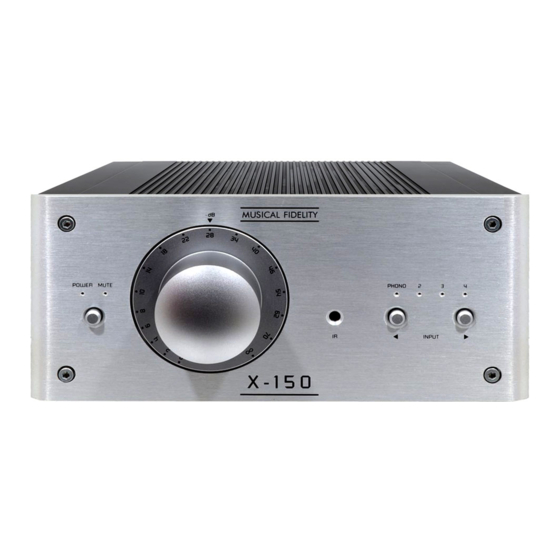

Dual mono integrated amplifier

Advertisement

Quick Links

X-150 SPECIFICATIONS

Output :
Voltage RMS :
Peak :
Power :
Peak-to-peak output current :
Damping factor :
Output devices per channel :
Pre-output impedance :
Line inputs :
Total harmonic distortion + noise :
< 0
Signal / noise ratio :
> 98dB 'A'-weighted
Input sensitivity for 105Watts, 8 Ohms :
Input impedance :
Overload margin :
Channel separation :
> 70dB typical
Frequency response :
Phono input :
15
Frequency response reference
10
IEC RIAA - see graph . . .
dB
-10
-15
-20
-25
Signal / noise ratio :
> 94dB 'A'-weighted
Input sensitivity :
Input impedance :
Overload margin :
Input facilities :
Output facilities :
Power requirement :
Dimensions :
Weight :
Standard accessories :
Musical Fidelity reserves the right to make improvements which
may result in specification or feature changes without notice.
X-150 Integrated Amplifier
29 Volts 20Hz to 20kHz, one channel loaded
82 Volts
105 Watts one channel into 8 Ohms (20dBW),
141 Watts one channel into 4 Ohms
50 Amps
80
4
50 Ohms
.
01% 20Hz to 20kHz
250mV
220k Ohms
26dB
.
20Hz to 20kHz, + 0, - 0
2dB
2 5
2 0
IEC
5
RIAA
FREQUENCY (Hz)
0
-5
10
16
2 5
4 0
6 3
10 0
16 0
2 5 0
4 0 0
6 3 0 1.25K
2K 3.15K
5K
8K 12.5K 20K
.
2
5mV Moving Magnet
47k Ohms
24dB
3 pairs line level RCA connectors,
1 pair phono RCA connectors
2 amplifier channels via 1 pair per channel binding posts.
1 pair RCA audio outputs controlled by the volume,
1 pair RCA tape record fixed line level output.
100 / 115 / 230Volts AC 50 / 60Hz (factory pre-set),
320 Watts maximum into 8 Ohms, 32 Watts idle
218mm,
8.6 inches wide
98mm,
3.8 inches high (including feet)
377mm, 14.9 inches deep
(including knob and rear terminals)
6.5 kg,
14.3 lbs unit only, unboxed
8 kg,
17.7 lbs in shipping carton
IEC type mains lead (10-Amp), remote control,
2 batteries size LR03 or AAA, manganese alkaline type
Page 8 of 8
X-150
DUAL MONO INTEGRATED AMPLIFIER
INSTRUCTIONS FOR USE
Thank you for purchasing the Musical Fidelity
X-150 Integrated amplifier.
Used properly and carefully, it should give you many years of
outstanding musical reproduction.
Aesthetically, the X-150 Integrated amplifier is a
perfect match for the X-RAY Version 3 CD player.
Together, they form one of the finest hi-fi systems available.
Dust regularly with a soft cloth or soft brush, but be careful when
using cleaning or polishing agents - they may harm the surface finish.
If you have any questions about your audio system,
please consult your dealer who is there to help and advise.
X-150 Integrated Amplifier
Issue 4 May 2004
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Musical Fidelity X-150

  • Page 1 Standard accessories : IEC type mains lead (10-Amp), remote control, 2 batteries size LR03 or AAA, manganese alkaline type Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. X-150 Integrated Amplifier...
  • Page 2 WARNING: Any modifications to this product not expressly approved by Musical Fidelity who is the party responsible for standards compliance could void the user’s authority to operate this equipment.
  • Page 3 This product has been tested to ensure that its operation is not adversely affected by normal back- ground levels of R.F.I., and that it does not itself generate excessive amounts of interference. However, if a problem persists, please contact your Musical Fidelity agent. X-150 Integrated Amplifier...
  • Page 4 Buttons on the remote control with blue-grey surround enable main functions of the ampli- fier to be operated from a convenient distance. Remaining buttons on this universal hand- set are for use with other Musical Fidelity products, and have no effect on the X-150 Integrated amplifier.
