Configuring the GPS Side of the MultiModem

1. Port Configuration

The GPS receiver module has two I/O ports. The table below provides the default protocols and port
configurations for the receiver, as delivered from the factory. TSIP IN/OUT is the default protocol on Port 1
and RTCM-IN and NMEA-OUT is the default protocol on Port 2.
Default Protocols and Port Configurations
Port Input
Protocol
1 TSIP
2 RTCM
The GPS Receiver can also be configured to output TAIP messages. The standard port characteristics
for TAIP are:
•
Baud Rate: 4800
•
Data Bits: 8
•
Parity: None
•
Stop Bits:1
•
No Flow Control
Any standard serial communications program, such as Windows Hyper-Terminal or PROCOMM, can be
used to view the NMEA or TAIP output messages. TSIP is a binary protocol and outputs raw binary
serial data that cannot be read when using Windows Terminal or PROCOMM. To view the output of the
TSIP protocol in text format, use the iQ_CHAT or the iQ_Monitor program. These programs are
included on the CD-ROM as part of the MultiModem GPS Developer's Kit.
About iQ_Monitor and iQ_Chat Utilities
The iQ_Monitor.exe
Developing a Software Interface for the GPS Module in the Multi-Tech MultiModem
are included on the CD as part of the MultiModem Developer's Kit.
iQ_Monitor
iQ_Monitor is used to verify GPS is functioning. The Developer Guide explains
how to setup and use this utility.
It is a 32-bit Windows application that interfaces with a TSIP-speaking receiver
through the GPS serial port. The program accepts TSIP reports and displays
these fields in a window:
The program allows you to exercise some basic TSIP commands and can also
log a TSIP report in binary format for later translation.
iQ_Chat
iQ_Chat is a 16-bit DOS-based application that interfaces with the GPS receiver
through a serial port. It allows you to exercise TSIP commands, configure the
GPS receiver for NMEA or TAIP, and view NMEA or TAIP output. It also logs a
TSIP report in binary format.
Multi-Tech Systems, Inc. MultiModem Wireless EDGE, GPRS, and CDMA Modems with GPS (S000376A)
Default Setup
Baud Rate: 9600
Data Bits: 8 Parity:
Odd Stop Bits: 1 No Flow Control
Baud Rate: 4800
Data Bits: 8 Parity:
None Stop Bits: 1 No Flow Control

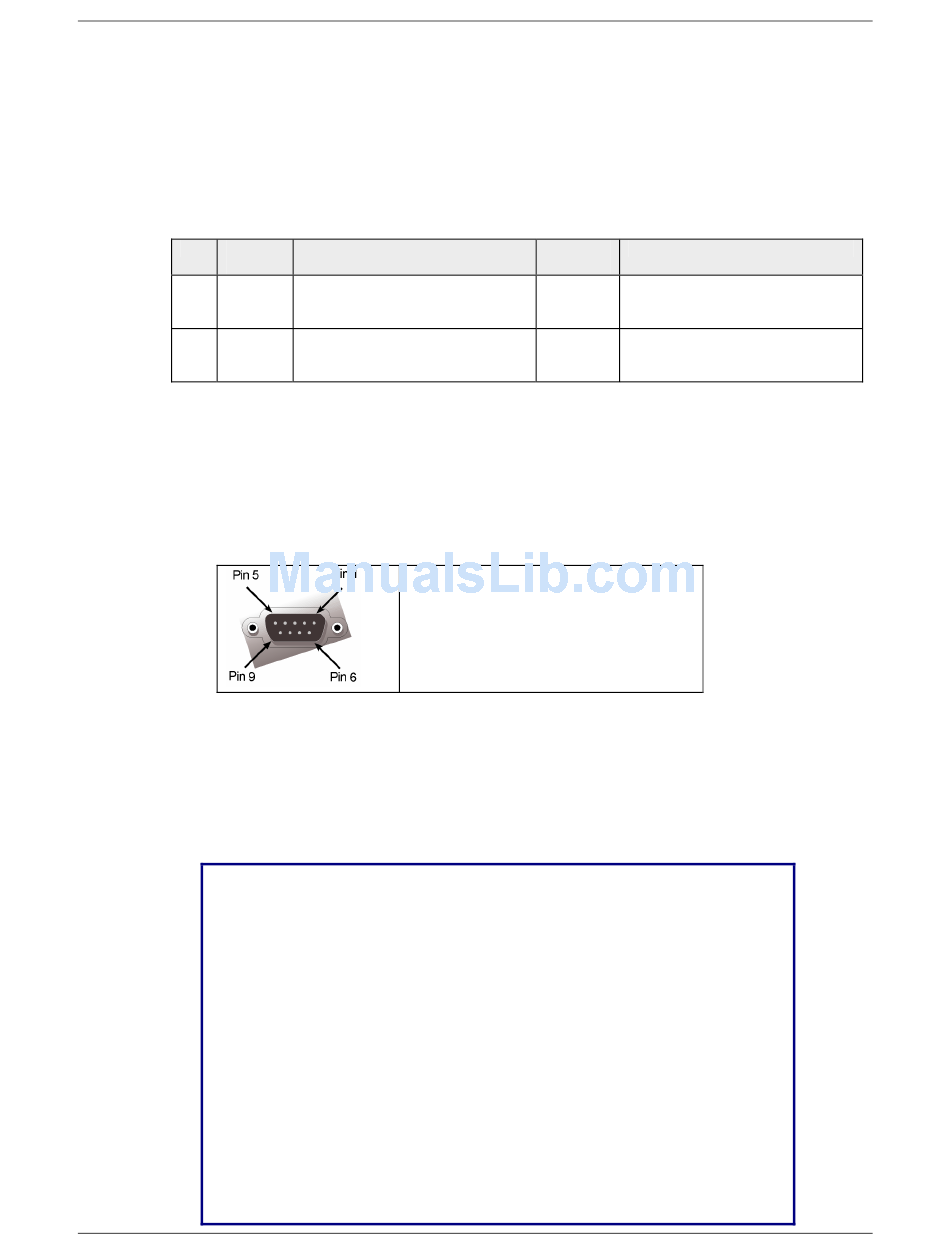

GPS DB-9:
Pin 2 = Port 1 Transmit Data from GPS
Pin 3 = Port 1 Receive Data into GPS
Pin 6 = Port 2 Transmit Data from GPS
Pin 4 = Port 2 Receive Data into GPS
Pin 5 = GND
and iQ_Chat.exe
Position, Velocity, Time, Receiver Status, and Satellite Track Status.
Chapter 2 – Setup and Configuration
Output Default Setup
Language
TSIP Baud Rate: 9600
Data Bits: 8 Parity:
Odd Stop Bits: 1 No Flow Control
NMEA Baud Rate: 4800
Data Bits: 8 Parity:
None Stop Bits: 1 No Flow Control
files plus a Developer's Guide entitled
