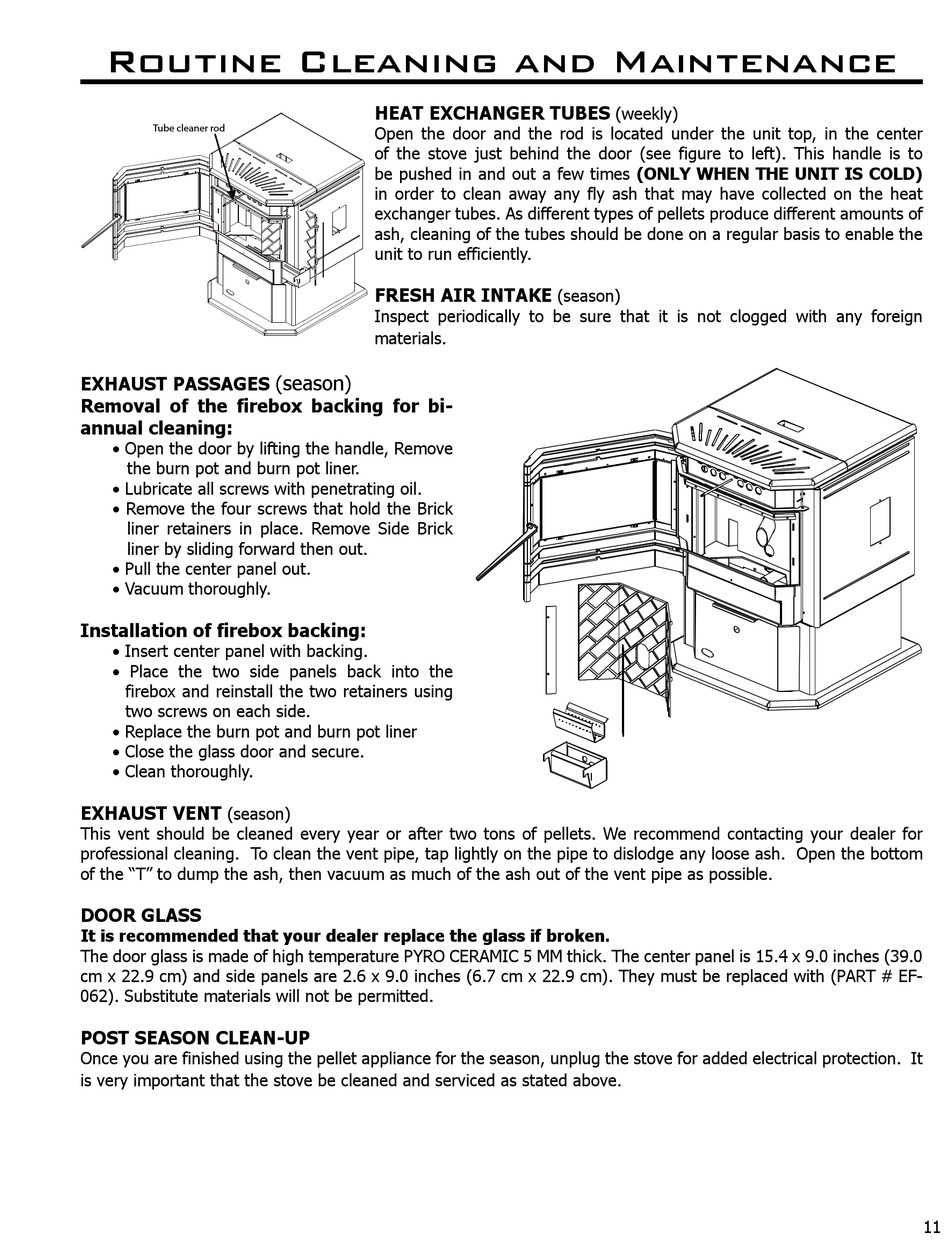

Routine Cleaning and Maintenance
���� ������� ���
EXHAUST PASSAGES
Removal of the firebox backing for bi-
annual cleaning:
• Open the door by lifting the handle, Remove
the burn pot and burn pot liner.
• Lubricate all screws with penetrating oil.
• Remove the four screws that hold the Brick
liner retainers in place. Remove Side Brick
liner by sliding forward then out.
• Pull the center panel out.
• Vacuum thoroughly.
Installation of firebox backing:
• Insert center panel with backing.
• Place the two side panels back into the
firebox and reinstall the two retainers using
two screws on each side.
• Replace the burn pot and burn pot liner
• Close the glass door and secure.
• Clean thoroughly.
EXHAUST VENT
(season)
This vent should be cleaned every year or after two tons of pellets. We recommend contacting your dealer for
professional cleaning. To clean the vent pipe, tap lightly on the pipe to dislodge any loose ash. Open the bottom
of the "T" to dump the ash, then vacuum as much of the ash out of the vent pipe as possible.
DOOR GLASS
It is recommended that your dealer replace the glass if broken.
The door glass is made of high temperature PYRO CERAMIC 5 MM thick. The center panel is 15.4 x 9.0 inches (39.0
cm x 22.9 cm) and side panels are 2.6 x 9.0 inches (6.7 cm x 22.9 cm). They must be replaced with (PART # EF-
062). Substitute materials will not be permitted.
POST SEASON CLEAN-UP
Once you are finished using the pellet appliance for the season, unplug the stove for added electrical protection. It
is very important that the stove be cleaned and serviced as stated above.
HEAT EXCHANGER TUBES
Open the door and the rod is located under the unit top, in the center
of the stove just behind the door (see figure to left). This handle is to
be pushed in and out a few times (ONLY WHEN THE UNIT IS COLD)
in order to clean away any fly ash that may have collected on the heat
exchanger tubes. As different types of pellets produce different amounts of
ash, cleaning of the tubes should be done on a regular basis to enable the
unit to run efficiently.

FRESH AIR INTAKE

Inspect periodically to be sure that it is not clogged with any foreign
materials.
(season)
(weekly)
(season)
11
