SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

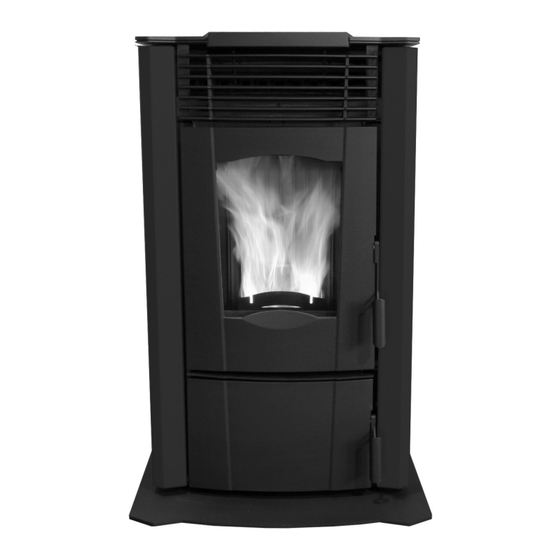

PELLET STOVE
Omega
OWNER'S MANUAL
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION
AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE
TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN
PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
50-1675
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Enviro Omega
Summary of Contents for Enviro Omega
- Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PELLET STOVE Omega OWNER’S MANUAL PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
-
Page 2: Table Of Contents
Table of Contents Introduction...3 Rating Label Location...3 Fuel Quality...3 Safety Warnings & Recommendations...4 Operating Instructions...6 Dimensions & Specifications...6 Control Board Functions...7 Automatic Safety Features of Your Pellet Stove...7 Operating Your Pellet Stove...7 Turning Your Pellet Stove Off...9 Slider/Damper Set-Up...9 Routine Cleaning and Maintenance...10 Warranty...13 Installation Data Sheet...16... -
Page 3: Introduction
Fuel quality is important, please read the following: Your Enviro pellet stove has been designed to burn 1⁄4” (6mm) dia wood pellets and other organic fuels. DO NOT use this appliance as an incinerator. DO NOT use unsuitable and non recommended fuels, including liquid fuels as this will void any warranties stated in this manual. -
Page 4: Safety Warnings & Recommendations
To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An Enviro dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions. -
Page 5: Save This Instruction Manual For Future Reference
If this power cord should become damaged, a replacement power cord must be purchased from the manufacturer or a qualified Enviro dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or sharp edges. This unit’s maximum power requirement is 504 watts. -
Page 6: Operating Instructions
" (561mm) (615mm) " (1065mm) " (1080mm) Figure 1: Dimensions of Omega. Table 1: Omega Specifications. Fuel type 6mm (1⁄4”) dia. Pellets - wood, corn, wheat, barley, & grass only* Current 4.2 Amps Hopper Capacity up to 130 lb (59 Kg) -
Page 7: Control Board Functions
Operating Instructions ONTROL OARD UNCTIONS 1. ON/OFF BUTTON: Used to turn the unit ON and OFF manually. 2. FUEL TYPE BUTTON: Used to switch between fuel type modes; Pellet (for all qualities of wood PELLET MULTIFUEL AUTO/OFF HIGH/LOW MANUAL FUEL TYPE HEAT LEVEL FEED TRIM ON/OFF... - Page 8 Operating Instructions PRE-BURN CHECK: The burn pot liner holes must be clear and the liner installed properly against the ignitor tube and locked in place. Check the hopper for enough pellets to start the unit. Note: Fuel Type can only be changed when the unit is cold. The thermostat mode can be changed during normal operation.
-
Page 9: Turning Your Pellet Stove Off
Operating Instructions URNING ELLET TOVE • MANUAL and HI / LOW mode: To turn the unit OFF, simply press the ON / OFF button. This will stop the feed of pellets. The blowers will continue to operate and cool the stove down. When cool enough, the stove will turn off. -
Page 10: Routine Cleaning And Maintenance
Torx T-20 Screwdriver, 1⁄4”, & ” wrench and/or socket, Brush, Soft Cloth, and Vacuum with fine filter bag Fire Grate Agitator Burn Pot Liner Ignitor (Spring Loaded) Air Intake Tubes Burn Pot Figure 8: Omega Burn Pot Assembly. ” 3⁄8”,... - Page 11 If the glass has build up that can not be removed with only the cloth, clean the glass using paper towel and Figure 9: Omega Burn Heat Exchanger Cleaning. a gas appliance glass cleaner, this may be purchased through most dealers. If a gas appliance glass cleaner is not available, use a damp paper towel dipped in fly ash to clean the glass.
- Page 12 The use of substitute materials is prohibited: #50-1673 Glass 117⁄8” x 153⁄8” (301.6mm x 390.5mm). Ash Box Figure 10: Omega Exhaust Passages. Firebox Liner Burn Pot Assembly...
-
Page 13: Warranty
Industries, our commitment to the highest level of quality and customer service is the most important thing we do. Each Enviro stove is built on a tradition of using only the finest materials and is backed by our Exclusive Lifetime Limited Warranty to the original purchaser. With Enviro, you’re not just buying a stove, you’re buying a company with years of unequalled performance and quality. - Page 14 Limited Warranty on this stove. If unsure as to the extent of this Limited Warranty, contact your authorized Enviro dealer before installation. 10. Sherwood Industries Ltd. will not be responsible for inadequate performance caused by environmental conditions.
- Page 15 If the stove is used for commercial purposes, it is excluded from the Limited Warranty. 24. No dealer, distributor, or similar person has the authority to represent or warrant Enviro products beyond the terms contained within the Limited Warranty. Sherwood Industries Ltd. assumes no liability for such warranties or representations.
-
Page 16: Installation Data Sheet
INSTALLER’S SIGNATURE: _________________________________________ NAME OF DEALER: _________________________________________ ADDRESS: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ NAME OF INSTALLER: _________________________________________ (dd/mm/yyyy) ADDRESS: (dd/mm/yyyy) _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com July 27, 2007 C-11407...
