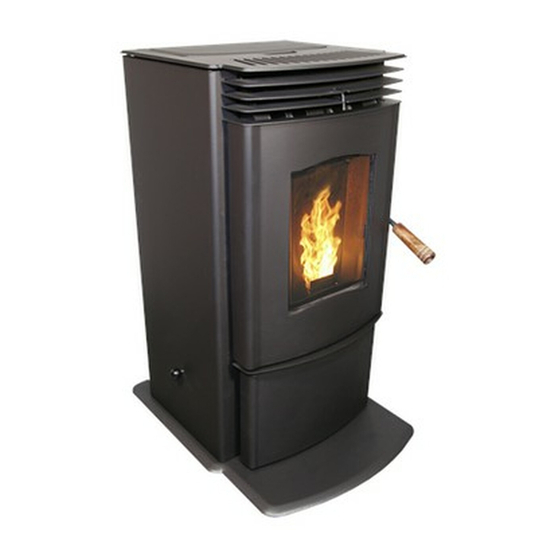

MINI
F R E E - S T A N D I N G P E L L E T S T O V E
OWNER'S MANUAL
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE
OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY
OR EVEN DEATH.
Contact your building or fire officials about restrictions
and installation inspection requirements in your area.
50-1928
4001609
Version Française: www.enviro.com/fr.html

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI C-14593 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enviro MINI C-14593

Summary of Contents for Enviro MINI C-14593

  • Page 1 OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. Contact your building or fire officials about restrictions and installation inspection requirements in your area. 50-1928 4001609 Version Française: www.enviro.com/fr.html...

  • Page 2: Table Of Contents

    Table of Contents Introduction...........................3 Rating Label Location........................3 Safety Warnings And Recommendations..................3 Pellet Quality..........................6 Emissions and Efficiencies........................7 Specifications.............................8 Operating Instructions........................9 Routine Mainenance and Cleaning....................12 Installation..........................14 Deciding Where to Locate your Pellet Appliance................14 Appliance Dimensions and Specifications..................14 Removing Pellet Stove From Pallet.....................15 Hearth Pad (50-1219) Installation....................15 Clearances to Combustibles.......................16 Alcove Clearances........................16...

  • Page 3: Introduction

    To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An ENVIRO dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions.
  • Page 4 If this power cord should become damaged, a replacement power cord must be purchased from a qualified ENVIRO dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or...
  • Page 5 GLASS: Do not abuse the glass by striking or slamming the door. Do not attempt to operate the stove with broken glass. The stove uses ceramic glass. Replacement glass must be purchased from an ENVIRO dealer. Do not attempt to open the door and clean the glass while the unit is in operation or if glass is hot.

  • Page 6: Pellet Quality

    Pellet quality is important, please read the following: Your enviro pellet stove has been designed to burn wood pellets only. Do not use any other type of fuel, as this will void any warranties stated in this manual. The performance of your pellet stove is greatly affected by the type and quality of wood pellets being burned.

  • Page 7: Emissions And Efficiencies

    Rates: This manual describes the installation and operation of the Enviro Mini Pellet heater. This heater meets the 2015 U.S. Environmental Protection Agency’s pellet emission limits for pellet emission limits sold after May 15, 2015. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 22,600-30,00 Btu/hr.

  • Page 8: Specifications

    Specifications imenSionS anD pecificationS " (386 mm) Weight (with full hopper): 238 lb (108 Kg) Hopper Capacity: up to 48 lb (21.8 Kg) Voltage: 110 - 120 V Max Current: 4.1 Amps Consumption on High: 3.1 lb/hr (1.4 Kg/hr)* Consumption on Low: 1.3 lb/hr (0.6 Kg/hr)* (Note: Consumption will vary with the type of fuel used.) "...

  • Page 9: Operating Instructions

    Operating Instructions ontRoL oaRD unctionS 1. AUGER LIGHT: This green light will flash in conjunction with the auger pulse. 2. MODE LIGHT: Responsible for signaling the state of the control AUGER board. When the light is flashing the stove is in an automatic start mode or the thermostat has control of the unit.
  • Page 10 Operating Instructions AUGER AUGER MANUAL MODE: MODE MODE All control of circuit board function is adjusted at the circuit board. To START: Press the ON / OFF button. The stove will turn on. The AUTO/OFF AUTO/OFF system light will flash. The Auger Light will flash with each pulse of the HIGH/LOW HIGH/LOW MANUAL...
  • Page 11 Operating Instructions LiDeR ampeR THE SLIDER / DAMPER MUST BE SET AT TIME OF INSTALLATION. This is used to regulate the airflow through the pellet stove. If, after long periods of burning, the fire builds up and overflows the burn pot or there is a build up of clinkers, this would be a sign that the pellet quality is poor, this requires more primary air, the slider damper must be pulled out to compensate.

  • Page 12: Routine Mainenance And Cleaning

    Routine Cleaning and Maintenance The following list of components should be inspected and maintained routinely to ensure that the appliance is operating at its’ optimum and giving you excellent heat value: 2-3 Days / Weekly Semi-annually or 2 Tons of Fuel Burn Pot Liner Burn Pot and Liner Exhaust Vent...
  • Page 13 Routine Cleaning and Maintenance If the glass has build up that can not be removed with only the cloth, clean the glass using paper towel and a gas appliance glass cleaner, this may be purchased through most dealers. If a gas appliance glass cleaner is not available, use a damp paper towel dipped in fly ash to clean the glass.

  • Page 14: Installation

    Installation eciDing HeRe to ocate youR eLLet ppLiance 1. Check clearances to combustibles. 2. Do not obtain combustion air from an attic, garage or any unventilated space. Combustion air may be obtained from a ventilated crawlspace. 3. Do not install the stove in a bedroom. 4.

  • Page 15: Removing Pellet Stove From Pallet

    Installation emoving eLLet tove aLLet anD nStaLLing eaRtH Tool Required: ● T-20 screwdriver ● ” socket or flat head screwdriver Installation: 1. Slide a hearth pad tab through each of the three (3) slots on the hearth pad so the slotted end is up and Figure 14: Screw behind ash box.

  • Page 16: Clearances To Combustibles

    Installation LeaRanceS to ombuStibLeS IMPORTANT: Attach the Mini’s Hearth Pad when installing the unit on a combustible floor. The supplied hearth pad meet all the requirement of a proper hearth pad. If you do not use the supplied hearth pad a hearth pad must be used when on combustible material.

  • Page 17: Vent Termination Requirements

    Installation eRmination eQuiRementS IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 1: Use in conjunction with Figure 9 for allowable exterior vent termination locations. Letter Minimum Clearance Description 24 in (61 cm) Above grass, top of plants, wood, or any other combustible materials. 48 in (122 cm) Beside/below any door or window that may be opened.

  • Page 18: Outside Fresh-Air Connection

    Installation utSiDe ReSH onnection Outside fresh air is mandatory when installing this unit in airtight homes and mobile homes. A Fresh-air intake is strongly recommended for Outside Wall all installations. Failure to install intake air may result in improper combustion as well as the unit smoking during power failures.

  • Page 19: Mobile Home Installation

    (3) screws evenly spaced. CAUTION: THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALL AND CEILING/ROOF MUST ENVIRO Mini BE MAINTAINED. Optional Hearth Pad Flooring Steel Frame ” Lag Bolts...

  • Page 20: Horizontal Exhaust Through Wall Installation

    Installation oRizontaL XHauSt HRougH nStaLLation Vent installation: install vent at clearances specified by the vent manufacturer. A chimney connector shall not pass through an attic or roof space, closet or similar concealed spaces, or a floor, or ceiling. Where passage through a wall or partition of combustible construction is desired, the installation shall conform to CAN/CSA-B365 Installation Code for Solid-Fuel-Burning Appliances and Equipment.

  • Page 21: Through Wall With Vertical Rise And Horizontal Termination Installation - Freestanding

    Installation 9. The pipe must extend at least 12” (30 cm) away from the building. If necessary, bring another length of pipe (PL type) to the outside of the home to connect to the first section. Do not forget to place high temperature silicone around the pipe that passes through the thimble.

  • Page 22: Inside Vertical Installations

    Installation nSiDe eRticaL nStaLLationS 1. Choose a stove location that is ideal. See the Rain Cap (ensure cap is section “d eciding here tO Ocate yOur ellet at least 3ft above the 2 ft .” roof at the lowest point) ppliance (600 mm) 2.

  • Page 23: Hearth Mount Installation

    Rain Cap Steel Plate or Flashing Installation Flexible or Rigid 6" Stainless Steel Liner eaRtH ount nStaLLation Damper Removed or Fastened Open Refer to Figures 20 and 21. 10" (25.4 cm) Mantel Minimum 8" (20 cm) 1. Install the hearth pad. from top of stove Flue 2.

  • Page 24: Exterior Mounted Exhaust Blower (20-070)

    Installation (20-070): XteRioR ounteD XHauSt LoWeR The Mini can be equipped with an externally mounted exhaust blower. This optional kit includes all components necessary to install the exhaust blower on any vertical wall surface. Choose a location for your stove that meets the requirements stated in your manual and allows installation with the least amount of interference with house framing, plumbing, wiring, etc.

  • Page 25: Typical Through Wall With Exterior Blower Kit Installation - Horizontal Termination

    Installation ypicaL HRougH XteRioR LoWeR nStaLLation oRizontaL eRmination 90° Elbow 45°Elbow with Rodent screen or stainless steel termination hood 2ft (610mm) Riser Pipe Adaptor Exterior Blower and Housing Electrical Cable Figure 36: Through Wall Installation with Exterior Blower Kit. NOTE: Ensure that all interior vent connections are sealed by placing a small bead of high temperature silicone around each chimney connection.

  • Page 26: Typical Through Wall With Exterior Blower Kit Installation - Vertical Termination

    Installation ypicaL HRougH XteRioR LoWeR nStaLLation eRticaL eRmination Roof Sheathing Rain Cap Roof Flashing Roof Rafters Ceiling Joists Follow the previous pages for through wall installations. Ensure that vent pipe is properly secured to wall using wall straps. Maintain clearances to combustibles on vent pipe as well as unit.

  • Page 27: Slider/Damper Set-Up

    Installation LiDeR ampeR This is used to regulate the airflow through the pellet stove. The slider damper should be initially set by a trained technician using magnehelic. The slider damper knob is located on the left side of the stove. The combustion exhaust blower is a variable speed blower controlled by the heat output button.

  • Page 28: Troubleshooting

    Troubleshooting DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication. WHAT TO DO IF: 1.
  • Page 29 Troubleshooting Poor Quality Fuel – Insufficient energy in the fuel to produce enough heat to keep the stove burning or operational. Exhaust Temperature Sensor failure. – Bypass sensor located on Exhaust Blower if stove now operates properly, the unit may require cleaning or a new sensor. Contact your local dealer for service. Check the fuse on the circuit board.
  • Page 30 Troubleshooting 7. The convection blower will not function normally. Clean all grill openings at the back and below unit . Press the fan button; does the fan come on? Press again to verify that the blower turns on; if, not contact your local dealer for service.

  • Page 31: Wiring Diagram

    Wiring Diagram Armor Cable Supplied Grey Optional Exterior Vacuum Exhaust Blower Grey Switch Black White White Combustion Blue Brown Blower Exhaust Temperature Sensor Power Cord Brown Ground Black 115V 115V White Black Black White 220V 220V Brown Blue Thermostat Common 5 Amp Fuse Ignitor...

  • Page 32: Parts List

    Parts List Reference Description Part Number Number 120°F (49°C) Ceramic Fan Temperature Sensor EC-001 Auger Motor - 115V EF-001 High Limit Temp Sensor 200°F (93°C) Manual Reset EF-016 Vacuum Switch - 115V EF-017 Silicone Hose EF-018 Aluminum Hose Barb EF-019 Shoulder Bolt, Hardened Bushing &...
  • Page 33 Parts List Reference Description Part Number Number Auger 50-1161 Firebox Panel Set with Insulation 50-1162 Front Louvers 50-1169 Lid Set 50-1171 Stove Top Assembly 50-1172 Hopper Guard 50-1174 Handle Bracket 50-1177 Draft Slider 50-1178 Ash Pan Cover 50-1180 Ash Pan 50-1969 Ash Shelf Louver 50-1182...

  • Page 34: Parts Diagram - Components

    Parts Diagram - Components G H/ M AN A IR T IO Mini - Components September 2008...

  • Page 35: Parts Diagram - Steel

    Parts Diagram - Steel...

  • Page 36: Warranty

    Industries, our commitment to the highest level of quality and customer service is the most important thing we do. Each Enviro stove is built on a tradition of using only the finest materials and is backed by our Exclusive Lifetime Limited Warranty to the original purchaser. With Enviro, you’re not just buying a stove, you’re buying a company with years of unequalled performance and quality.
  • Page 37 Limited Warranty on this stove. If unsure as to the extent of this Limited Warranty, contact your authorized Enviro dealer before installation. 10. Sherwood Industries Ltd. will not be responsible for inadequate performance caused by environmental conditions.
  • Page 38 If the stove is used for commercial purposes, it is excluded from the Limited Warranty. 24. No dealer, distributor, or similar person has the authority to represent or warrant Enviro products beyond the terms contained within the Limited Warranty. Sherwood Industries Ltd. assumes no liability for such warranties or representations.

  • Page 39: Notes

    Notes...

  • Page 40: Installation Data Sheet

    SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________ (dd/mm/yyyy) DATE OF INSTALLATION:___________ ADDRESS: (dd/mm/yyyy) MAGNEHELIC AT INSTALL:___________________ _________________________________________ INSTALLER’S SIGNATURE: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com May 1, 2015 C-14593...
