LED Indicators

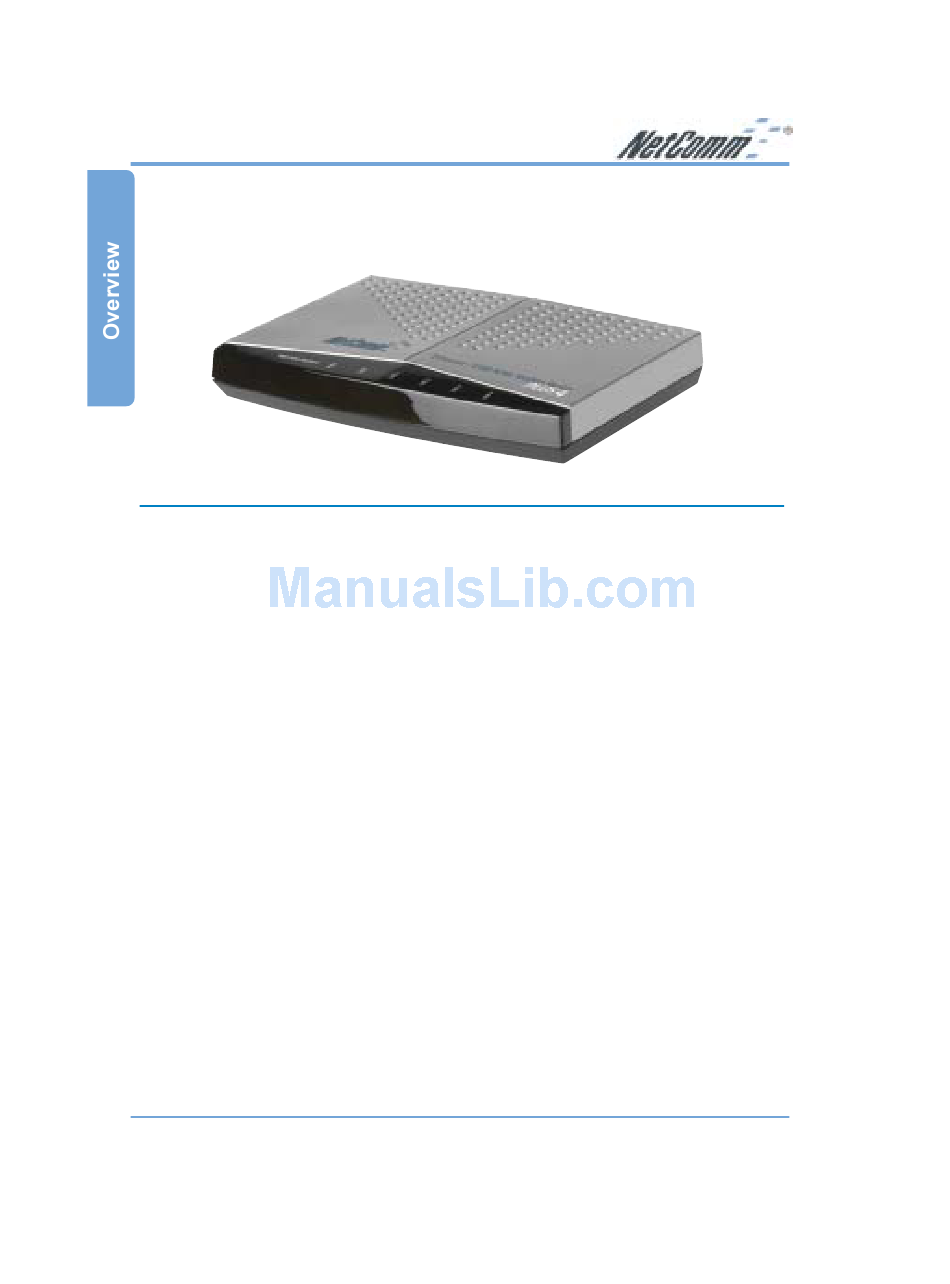

The LED Indicators are located on the front of the unit, they are green in colour. The meanings
are as follows:
Label Meaning
PWR Power
LNK WAN Link
LAN 1/2/3/4 LAN Port 1/2/3/4
www.netcomm.com.au
Page 8
Status Indicates:
On Power is on
O f f Power is off
Flashing Unit is powered up correctly when pulsing steadily.
ON or OFF during reboot or when unit switched
OFF. If ON or OFF permanently then there is an
error. Try powering unit OFF then ON after a
minute.
Flashing Link being attempted by router and when receiving
or sending data on the WAN port (ADSL line)
On Link established
O f f No link
Flashing Flashes when data is being sent or received on the
LAN connection
On Indicates a link to your LAN or Network card is
active
O f f Indicates no link to LAN
