Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

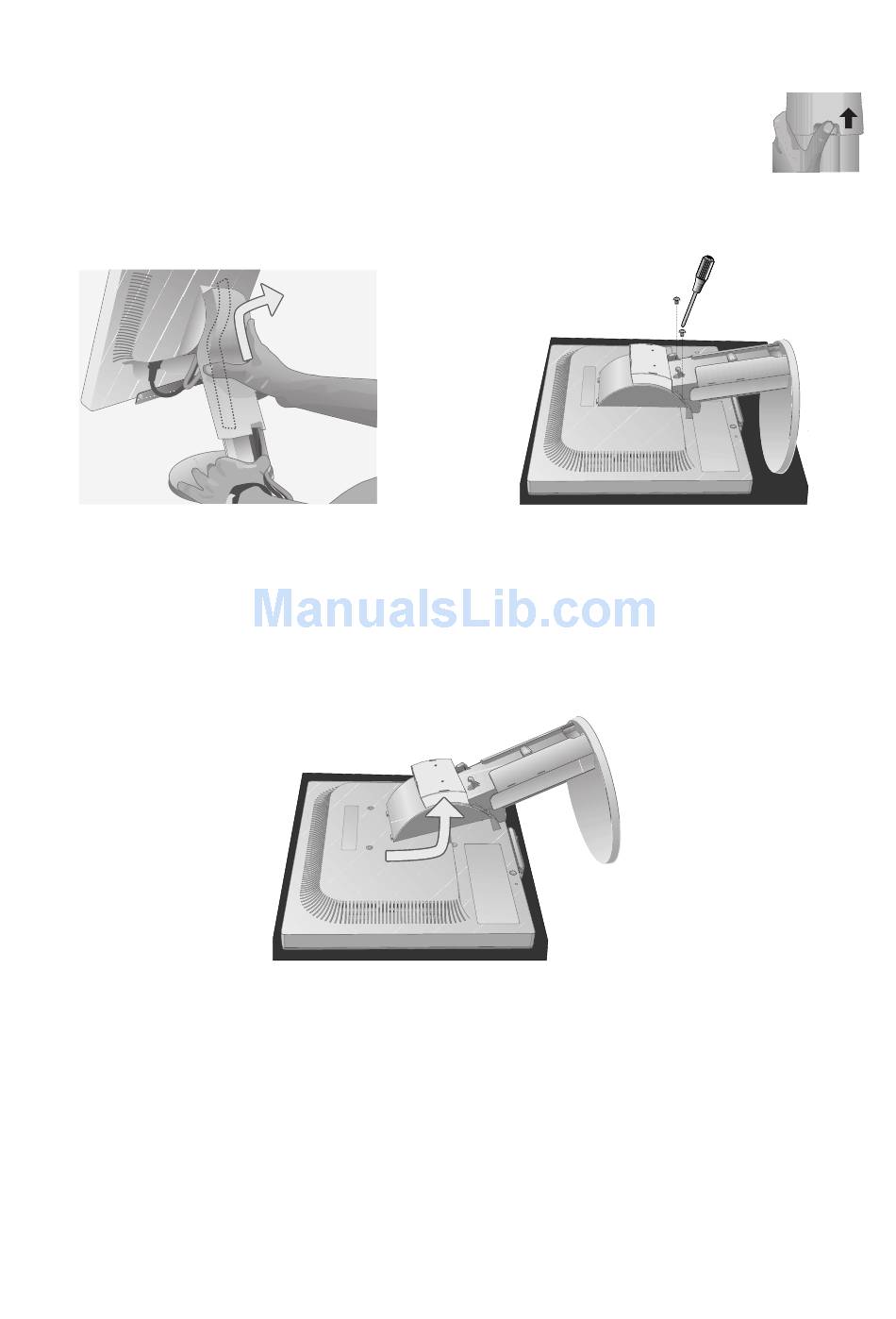

1. Place hands on each side of the monitor and lift up to the highest position. Remove the cable cover (Figure S.1).
NOTE: If you have difficulty removing the cable cover, please push the lower opening upward to remove it,
as shown in the figure beside.
2. Disconnect all cables.
3. Place monitor face down on a non-abrasive surface (Figure S.2).
NOTE: Handle with care when monitor facing down, for avoiding the damage to the front buttons.
4. Remove the 2 screws connecting the stand to the monitor (Figure S.2).
5. Remove the stand having three hooks toward direction (Figure S.3).
The monitor is now ready for mounting in an alternate manner.
6. Connect the cables to the back of the monitor.
7. Reverse this process to re-attach stand.
NOTE: Use only VESA-compatible alternative mounting method.
Handle with care when removing stand.
Figure S.1
Figure S.3
English-6
Figure S.2
