Flexible Arm Installation

This LCD monitor is designed for use with a flexible arm. To mount the monitor to a flexible arm:
1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand.
2. Use 4 screws and attach the arm to the monitor (Figure F.1).
NOTE: The LCD monitor should only be used with an approved arm (e.g. GS mark). To meet the safety requirements, the
monitor must be mounted to an arm, which guaranties the necessary stability under consideration of the weight of
the monitor.
12 mm
M4
4 x 12 mm with lock
washer and flat washer
100 mm

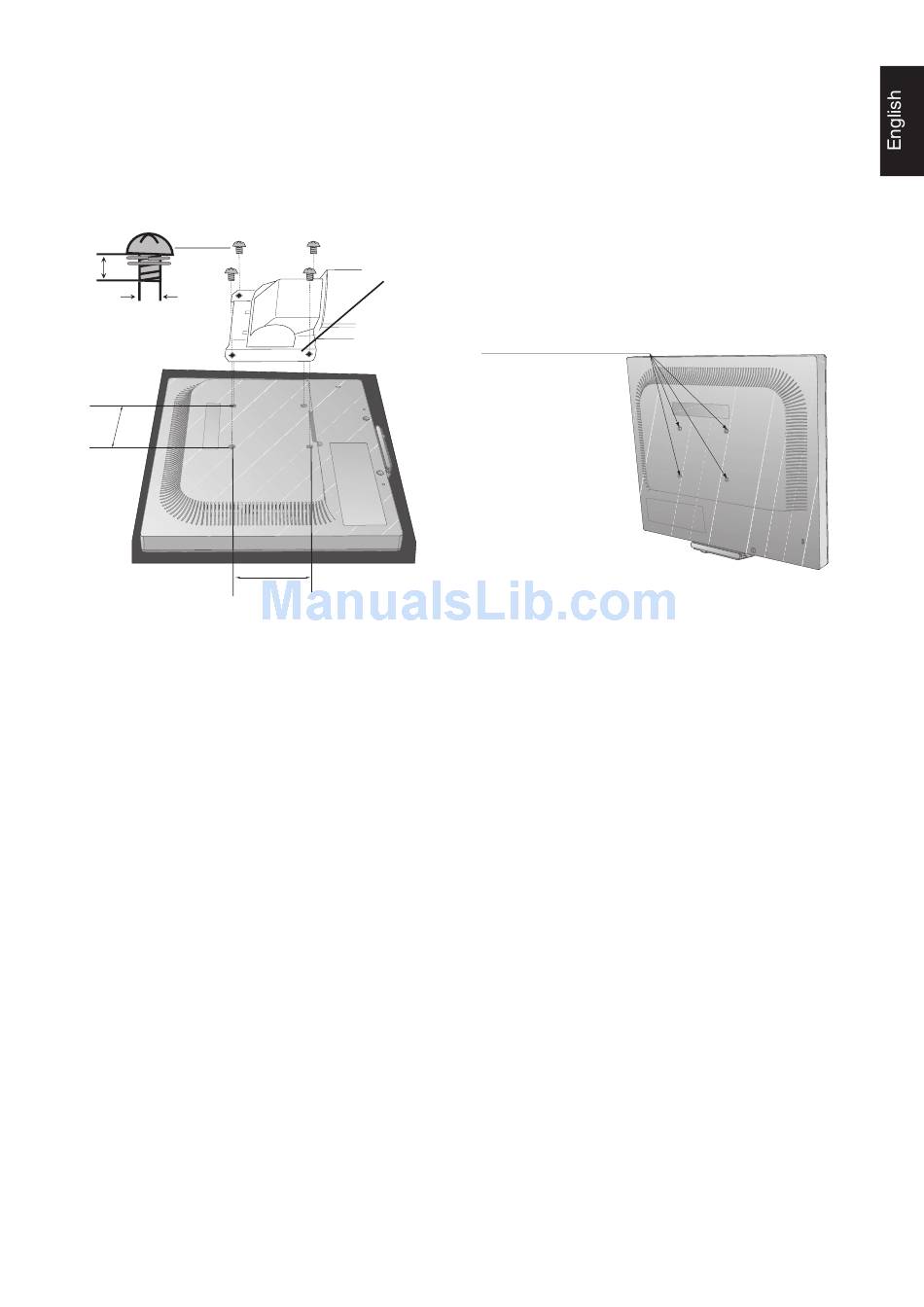

Figure F.1
Thickness of Bracket (Arm)
100 mm
2.0~3.2 mm
4 Screws (4M)
(Max Depth: 8 mm)
English-7
Weight of LCD assembly: 5.0 kg (MAX)
