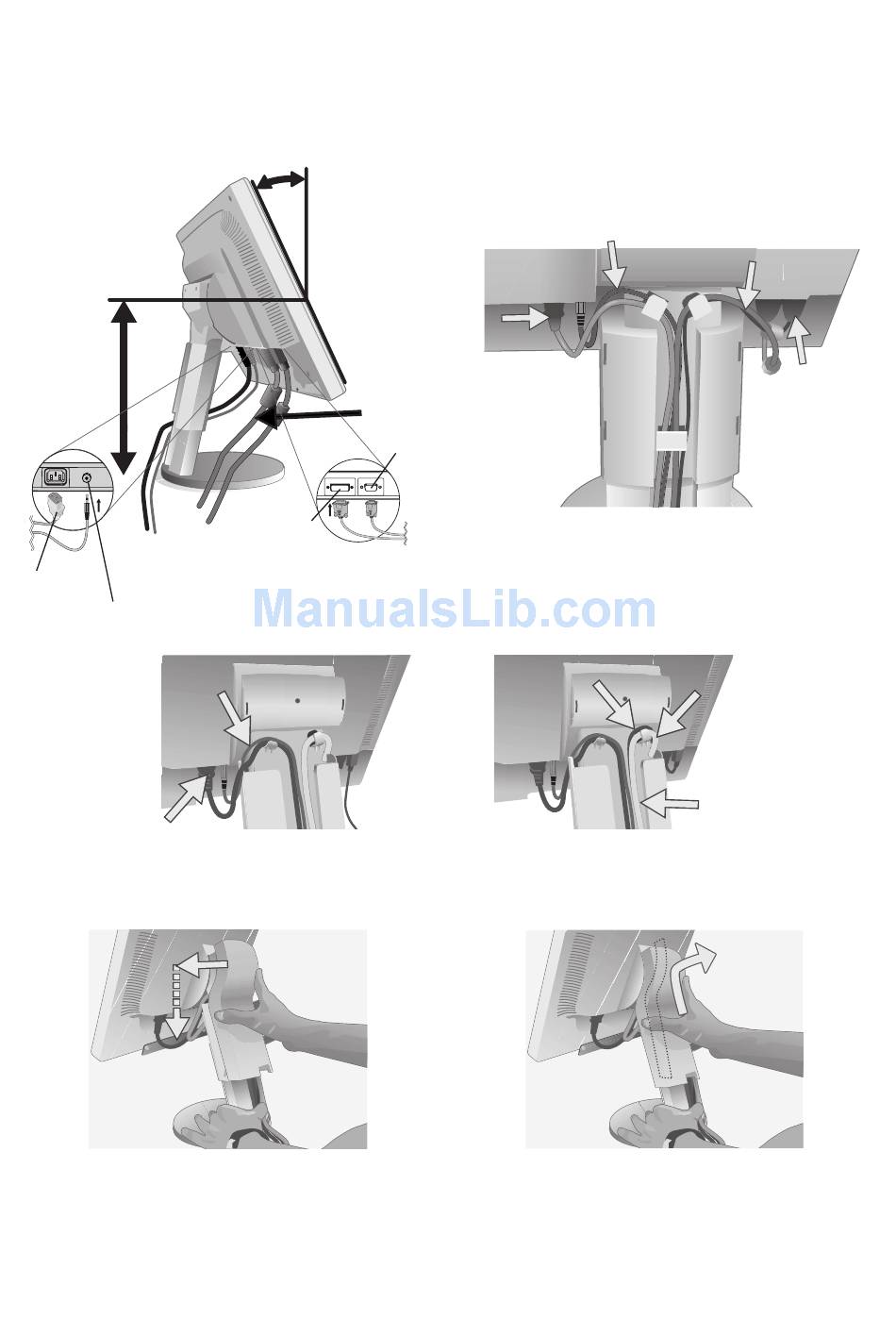

3. Place hands on each side of the monitor to tilt the LCD panel 30-degree angle and lift up to the highest position (Figure C.1).
4. Connect all cables to the appropriate connectors (Figure C.1).
5. For successful cable management, place the cables in this order into the cable management: Power cord and DVI cable
(Figure C.2).
6. Place power cord and audio cable into the specific hooks indicated in Figure C.2.
7. Place the DVI cable and D-Sub cable into the specific hooks indicated in Figure C.2.
Highest
Stand
Position
Power Cord
Audio In
8. Make sure all cables are resting flat against the stand (Figure C.3).
Audio Cable
Power cord
9. Hold the all cables firmly and place the cable cover onto the stand (Figure D.1). To remove the cable cover, lift the cover
off as shown in Figure D.2.
30˚ Tilt
DVI
Figure C.1
Insert Top First
Figure D.1
Power Cord
DVI Cable
D-Sub
DVI Cable
Figure C.3
English-4
Audio Cable
DVI Cable
Figure C.2
D-Sub Cable
Flat
Figure D.2
D-SUB Cable
