Your new NEC MultiSync LCD monitor box* should contain the following:
• MultiSync LCD monitor with height adjustable stand
• Power Cord
• Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male)
• Video Signal Cable (DVI-D to DVI-D)
• Audio Cable
• User's Manual
• CD-ROM
• Cable management cover
User's Manual Power Cord
* Remember to save your original box and packing material to transport or ship the monitor.

Quick Start

To attach the MultiSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI-D signal cable to the connector of the display card in your
system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your
system (Figure A.2). Tighten all screws.
For the Mac: Connect the MultiSync Macintosh cable adapter (not included) to the computer. Attach the 15-pin mini
D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure A.3). Tighten all screws.
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.

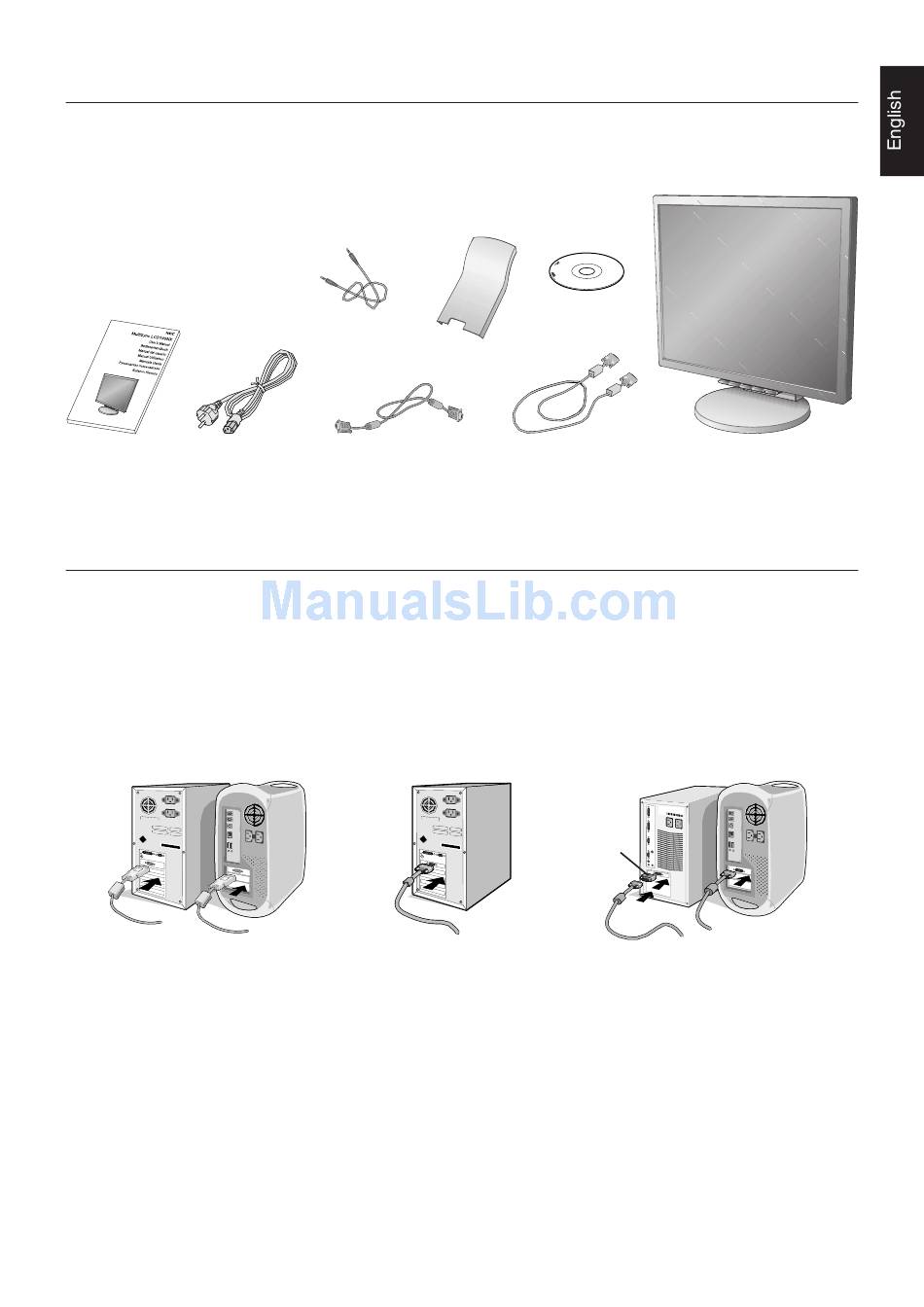

Figure A.1
Audio Cable
Cable management
cover
15-pin mini D-SUB
male to 15-pin mini
D-SUB male
Figure A.2
English-3
CD-ROM
DVI-D to DVI-D MultiSync LCD monitor
Macintosh
Cable Adapter
(not included)
Figure A.3
