Vent Termination Requirements - Enviro C-10608 Owner's Manual

V T R
ENT ERMINATION EQUIREMENTS
IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER.
Table 1: Use in conjunction with Figure 9 for allowable exterior vent termination locations.
Letter Minimum Clearance
A 24 in (61 cm)
B 48 in (122 cm)
C 24 in (61 cm)
D 24 in (61 cm)
E 24 in (61 cm)
F 12 in (30 cm)
G 12 in (30 cm)
H 3 ft (91 cm) within a height of 15 ft (4.5
m) above the meter/regulator assembly
I 3 ft (91 cm)
J 12 in (30 cm)
K 24 in (61 cm)
L 7 ft (2.13 m)
1. Do not terminate
the vent in any
enclosed or semi-
enclosed areas
such as a carport,
garage, attic,
crawlspace, narrow
walkway, closely
fenced area, under
a sundeck or porch,
or any location
that can build up
a concentration of
fumes such as stairwells, covered breezeway, etc.
2. Vent surfaces can become hot enough to cause burns if touched by children. Non-combustible shielding
or guards may be required.
3. Termination must exhaust above the inlet elevation. It is recommended that at least five feet of
vertical pipe be installed outside when the appliance is vented directly through a wall, to create some
natural draft to prevent the possibility of smoke or odor during appliance shut down or power failure.
This will keep exhaust from causing a nuisance or hazard from exposing people or shrubs to high
temperatures. In any case, the safest and preferred venting method is to extend the vent through the
roof vertically.
4. Distance from the bottom of the termination and grade is 12" (30 cm) minimum. This is conditional
upon the plants and nature of grade surface. The exhaust gases are hot enough to ignite grass, plants
and shrubs located in the vicinity of termination. The grade surface must not be lawn.
5. If the unit is incorrectly vented or the air to fuel mixture is out of balance, a slight discoloration of the
exterior of the house might occur. Since these factors are beyond the control of Sherwood Industries
Ltd, we grant no guarantee against such incidents.
NOTE: Venting terminals shall not be recessed into walls or siding.
Installation
:
Above grass, top of plants, wood, or any other combustible materials.
From beside/below any door or window that may be opened.
From above any door or window that may be opened.
To any adjacent building, fences and protruding parts of the structure.
Below any eave or roof overhang
To outside corner.
To inside corner, combustible wall (vertical and horizontal terminations).
To each side of center line extended above natural gas or propane meter/regulator assembly or
mechanical vent.
From any forced air intake of other appliance
Clearance to non-mechanical air supply inlet to building, or the combustion air inlet to any appliance.
Clearance above roof line for vertical terminations.
Clearance above paved sidewalk or paved driveway located on public property.
D
F
Opens
B
Termination Cap
Air Supply Inlet

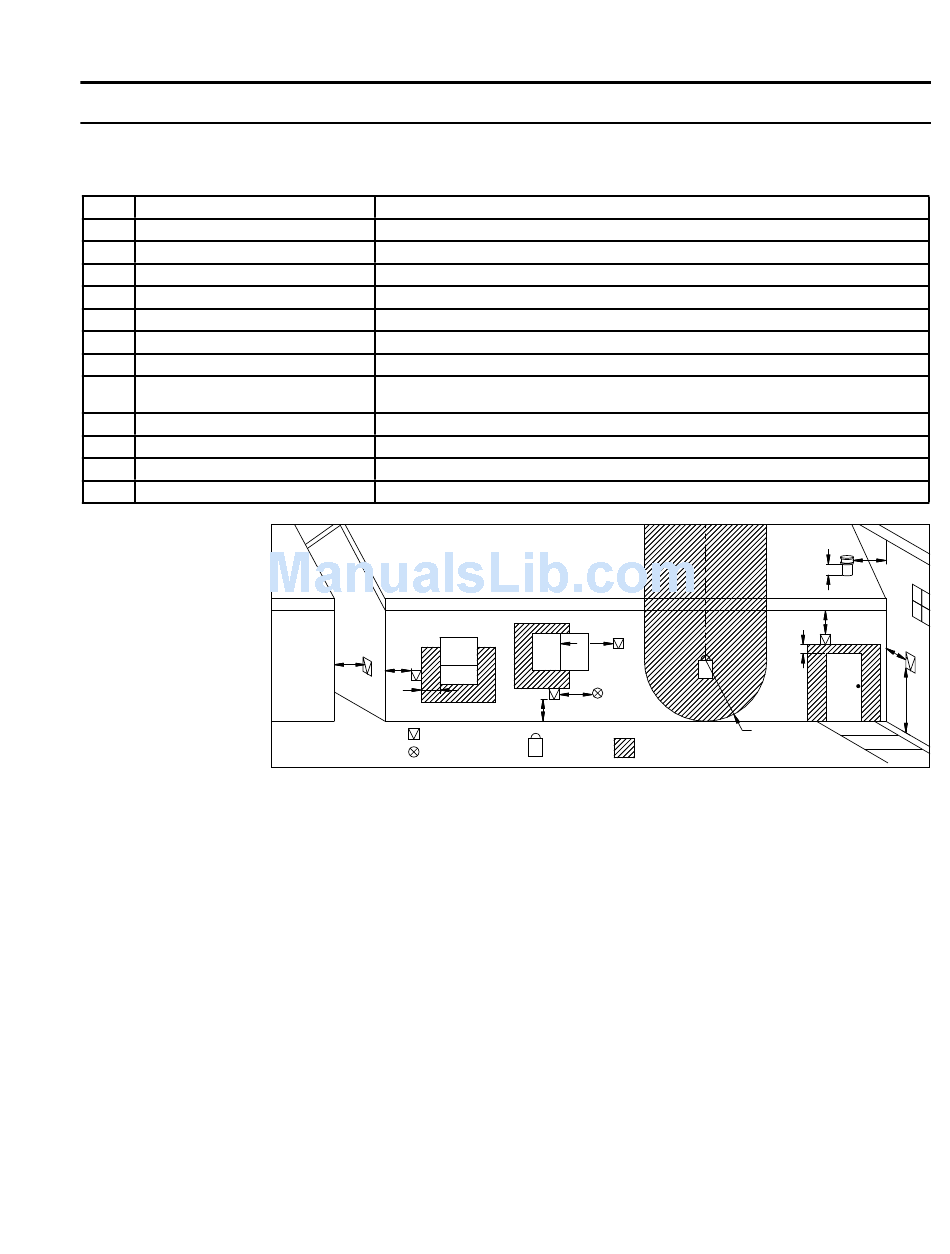

Figure 9: Use in conjunction with Table 1 for allowable exterior vent termination locations.
Description
B
Opens
G
I
A
Restriction Zone
Gas Meter
G
(Termination not allowed)
G
K
G
C
L
Opens
H
15
