SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

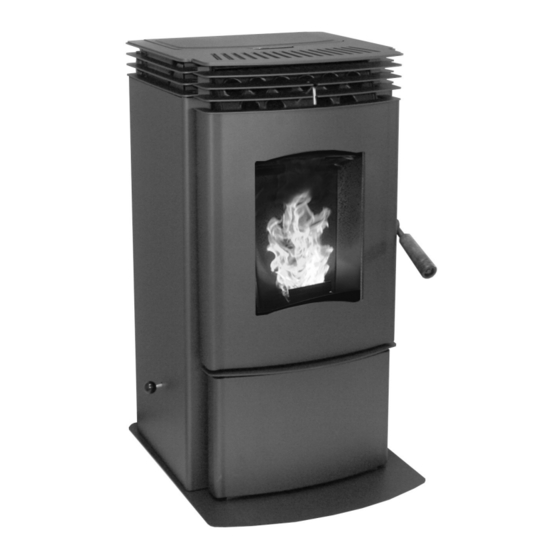

PELLET STOVE
Mini
TECHNICAL MANUAL
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE
OF THIS PELLET BURNING ROOM HEATER. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY
OR EVEN DEATH
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
50-1221
Advertisement
Table of Contents
Related Manuals for Enviro C-11150
Summary of Contents for Enviro C-11150
- Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PELLET STOVE Mini TECHNICAL MANUAL PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET BURNING ROOM HEATER. FAILURE TO FOLLOW THESE...
-
Page 2: Table Of Contents
Table of Contents Introduction...3 Rating Label Location...3 Safety Warnings And Recommendations...3 Installation...6 Deciding Where to Locate your Pellet Appliance...6 Removing Pellet Stove From Pallet...6 Appliance Dimensions and Specifications...7 Hearth Pad (50-1219) Installation...7 Clearances to Combustibles...8 Alcove Clearances...8 Vent Termination Requirements...9 Outside Fresh-Air Connection...10... -
Page 3: Introduction
To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An ENVIRO dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions. - Page 4 CLEANING: There will be some build up of fly ash and small amounts of creosote in the exhaust. This will vary due to the ash content of the fuel used and the operation of the stove. It is advisable to inspect and clean the exhaust vent semi-annually or every two tons of pellets.
- Page 5 It is very important to ensure that the exhaust system be sealed and airtight. The ash pan and viewing door must be locked securely for proper and safe operation of the pellet stove. Do not burn with insufficient combustion air. A periodic check is recommended to ensure proper combustion air is admitted to the combustion chamber.
-
Page 6: Installation
An interior vent can be used with approved pipe passing through the ceiling and roof. 5. Locate the stove in a large and open room that is centrally located in the house. This will optimize heat circulation. 6. The power cord is 8 feet (2.43 m) long and may require a grounded extension cord to reach the nearest electrical outlet. -
Page 7: Appliance Dimensions And Specifications
3. Locate the five (5) screw holes (see Figure 3) and install #8-32 torx T-20 screws and tighten. 4. Adjust the leveling legs to level and support stove. 5. Re-install the cab sides and ash pan cover. Installation PECIFICATIONS "... -
Page 8: Clearances To Combustibles
LEARANCES TO OMBUSTIBLES IMPORTANT: Attach the Mini’s Hearth Pad when installing the unit on a combustible floor. The supplied hearth pad meet all the requirement of a proper hearth pad. If you do not use the supplied hearth pad a hearth pad must be used when on combustible material. -
Page 9: Vent Termination Requirements
ERMINATION EQUIREMENTS IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 2: Use in conjunction with Figure 5 for allowable exterior vent termination locations. Letter Minimum Clearance 24 in (61 cm) 48 in (122 cm) -
Page 10: Fresh Air Intake
UTSIDE RESH ONNECTION Outside fresh air is mandatory when installing this unit in airtight homes and mobile homes. A Fresh-air intake is strongly recommended for all installations. Failure to install intake air may result in improper combustion as well as the unit smoking during power failures. -
Page 11: Mobile Home Installation
CAUTION: THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED. ORNER HROUGH NSTALLATION Installation electrically ENVIRO Mini Optional Hearth Pad Flooring Steel Frame Figure 9: Mobile home installation. 3" (75mm) 3" (75mm) Figure 10: Corner Installation. -
Page 12: Horizontal Exhaust Through Wall Installation
2. Install a non-combustible hearth pad (where necessary). 3. Place the appliance 15” (37.5 cm) away from the wall. If the stove is to be set on a hearth pad, set the unit on it, and adjust the leveling legs. -
Page 13: Through Wall With Vertical Rise And Horizontal Termination Installation - Freestanding
• Some horizontal through wall installations may require a “T” and 3 to 5 feet (91 to 152 cm) of vertical pipe outside the building to help naturally draft in the unit. • This may be required if a proper burn cannot be maintained, after the stove has been tested and the airflow set. -
Page 14: Inside Vertical Installations
3. Install ceiling thimble and secure the flashing as you go through the roof. 4. Ensure that the rain cap is approximately 24” (600 mm) above the roof. Installation 1. Choose a stove location that is ideal. See the section “D � �� PPLIANCE ���� ���... -
Page 15: Hearth Mount Installation
�������� �� ����� �� ��������� ����� ����� EARTH OUNT NSTALLATION Flue Connector ��������� ������� ��������� Figure 17: Freestanding hearth mount installation. Figure 18: Freestanding hearth mount installation overview. Installation ������ ������� �� �������� ���� ��� ����� ��� ������ Refer to Figures 17 and 18. �������... -
Page 16: Exterior Mounted Exhaust Blower (20-070)
The Mini can be equipped with an externally mounted exhaust blower. This optional kit includes all components necessary to install the exhaust blower on any vertical wall surface. Choose a location for your stove that meets the requirements stated in your manual and allows installation with the least amount of interference with house framing, plumbing, wiring, etc. -
Page 17: Typical Through Wall With Exterior Blower Kit Installation - Horizontal Termination
YPICAL HROUGH 45°Elbow with Rodent screen or stainless steel termination hood 2ft (610mm) Riser Pipe Adaptor Exterior Blower and Housing Figure 22: Through Wall Installation with Exterior Blower Kit. NOTE: Ensure that all interior vent connections are sealed by placing a small bead of high temperature silicone around each chimney connection. -
Page 18: Typical Through Wall With Exterior Blower Kit Installation - Vertical Termination
YPICAL HROUGH Follow the previous pages for through wall installations. Ensure that vent pipe is properly secured to wall using wall straps. Maintain clearances to combustibles on vent pipe as well as unit. Roof Sheathing Rain Cap Roof Flashing Roof Rafters Ceiling Joists Vent Pipe Exterior Wall... -
Page 19: Thermostat Installation
Heat Indicator. If the heating load is not great enough when the stove is on low, the high limit switch will turn the stove off and the switch will have to be manually reset. To reset the high limit switch, remove the right cabinet side. -
Page 20: Slider/Damper Set-Up
IMPORTANT: Taking a reading of vacuum pressure inside the firebox with a magnehelic gauge should be used to set the slider for best combustion. The slider damper should be set only on a hot stove (operating for thirty (30) minutes or more) by using a Magnahelic Pressure Gauge to measuring the pressure in the firebox. -
Page 21: Optional Panel Kit
PTIONAL ANEL This kit must be installed before the unit is started. Tools Required: ●T-20 screwdriver Kit Components: Quantity Description Panel Left Cab Panel Right Cab Hopper Lid #8 T-20 screws (3⁄8” long) Hopper Bracket Bushing 1⁄4” O.D. x 1⁄8” long Please ensure that all components are supplied with this kit. -
Page 22: Fan Kit Installation
3. Install the screw in the bottom hole on both brackets (#3 in Figure 33). 4. Let the hopper lid lay flat on the stove top then tighten the four (4) bracket screws. Figure 35: Behind the left cab panels. -
Page 23: Troubleshooting
Troubleshooting DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication. -
Page 24: Wiring Diagram
üPoor Quality Fuel – Insufficient energy in the fuel to produce enough heat to keep the stove burning or operational. üExhaust Temperature Sensor failure. – Bypass sensor located on Exhaust Blower if stove now operates properly, the unit may require cleaning or a new sensor. Contact your local dealer for service. - Page 25 üSet the auger trim till the #1 and #5 lights are illuminated. If the stove goes out and there are partially burned pellets left in the burn pot liner, the stove has shut down due to a lack of air, exhaust temperature, or power failure.
-
Page 26: Wiring Diagram
Optional Exterior Exhaust Blower Thermostat Connect Thermostat Here Wiring Diagram Armor Cable Supplied Black White White Combustion Blue Blower Power Cord Ground 115V 115V Black White 220V 220V Brown Blue Common 5 Amp Fuse Black White Orange Orange Purple Blue Yellow Grey Grey... -
Page 27: Parts List
Reference Description Number 120°F (49°C) Ceramic Fan Temperature Sensor Auger Motor - 115V High Limit Temp Sensor 200°F (93°C) Manual Reset Vacuum Switch - 115V Silicone Hose Aluminum Hose Barb Shoulder Bolt, Hardened Bushing & Nut (Set of 2) Combustion Blower motor with mount Auger Brass Bushings (Set of 2) Door Hinge Bracket External Exhaust Back (For Optional Kit) - Page 28 Reference Description Number Burn Pot Burn Pot Liner Burn Pot Bottom Front Louvers Lid Set Stove Top Assembly Hopper Guard Handle Bracket Draft Slider Door Assembly Complete Ash Pan Cover Ash Pan Ash Shelf Louver Cabinet Side Left Starter Pipe 3”...
-
Page 29: Parts Diagram - Components
Parts Diagram - Components �� � � �� �� �� � � �� �� �� � �� � � � �� �� Mini - Components November 2006... -
Page 30: Parts Diagram - Steel
Parts Diagram - Steel... -
Page 31: Warranty
Industries, our commitment to the highest level of quality and customer service is the most important thing we do. Each Enviro stove is built on a tradition of using only the finest materials and is backed by our Exclusive Lifetime Limited Warranty to the original purchaser. With Enviro, you’re not just buying a stove, you’re buying a company with years of unequalled performance and quality. - Page 32 7. Misuse includes over-firing. Over-firing this appliance can cause serious damage and will nullify the Limited Warranty. 8. The Limited Warranty will cover glass thermal breakage only and will not cover misuse of the stove glass, including but not limited to glass that is struck, has surface contaminates or has had harsh or abrasive cleaners used on it.
- Page 33 If the stove is used for commercial purposes, it is excluded from the Limited Warranty. 24. No dealer, distributor, or similar person has the authority to represent or warrant Enviro products beyond the terms contained within the Limited Warranty. Sherwood Industries Ltd. assumes no liability for such warranties or representations.
-
Page 34: Installation Data Sheet
INSTALLER’S SIGNATURE: _________________________________________ NAME OF DEALER: _________________________________________ ADDRESS: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ NAME OF INSTALLER: _________________________________________ (dd/mm/yyyy) ADDRESS: (dd/mm/yyyy) _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.envirofire.biz November 9, 2006 C-11150...
