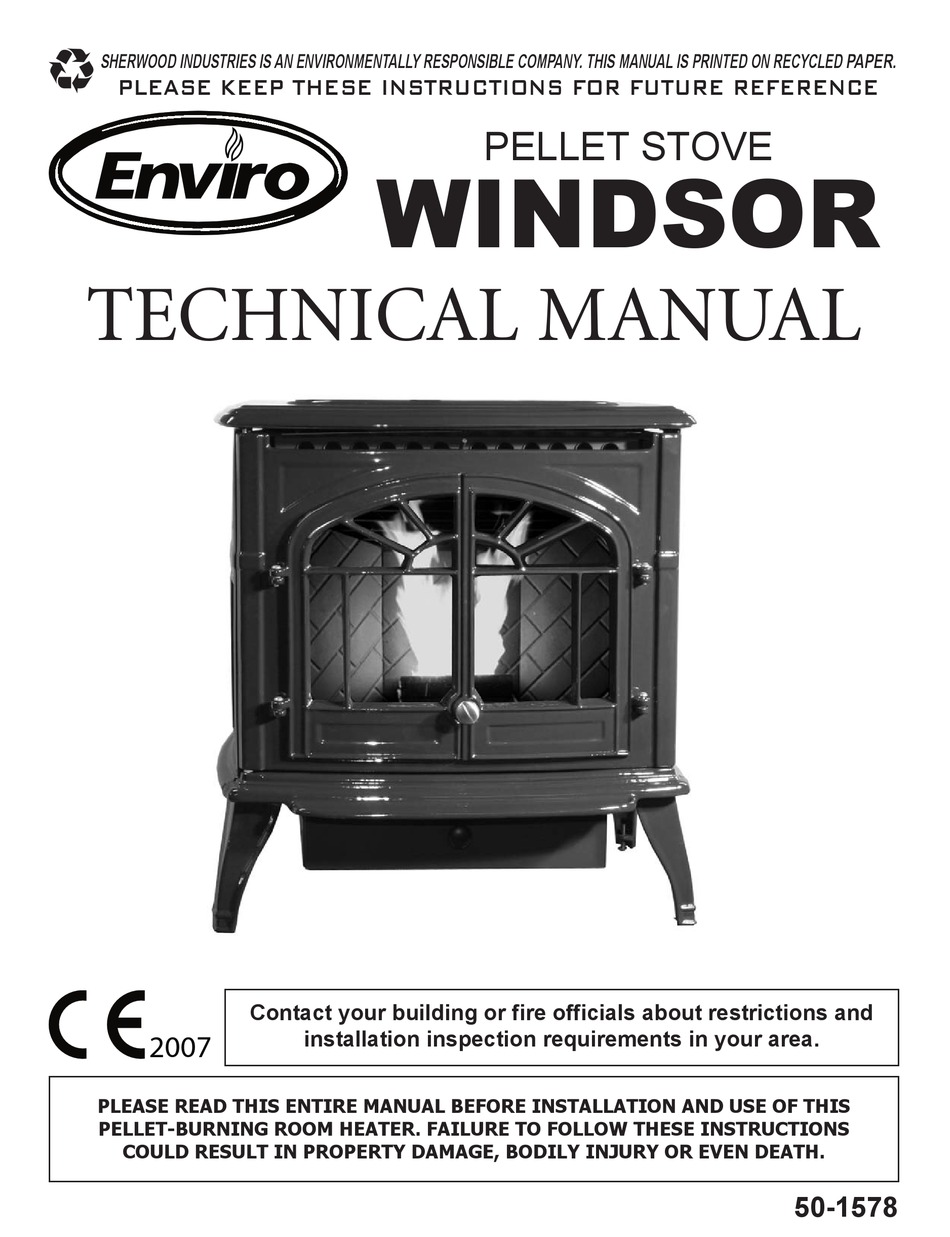

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
PELLET STOVE
WINDSOR
TECHNICAL MANUAL
Contact your building or fire officials about restrictions and
installation inspection requirements in your area.
����
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS
PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
50-1578

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WINDSOR 50-1578 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Enviro WINDSOR 50-1578

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PELLET STOVE WINDSOR TECHNICAL MANUAL Contact your building or fire officials about restrictions and installation inspection requirements in your area.
  • Page 2: Table Of Contents

    Table of Contents Safety Warnings & Recommendations...3 Installation...6 Rating Label Location...6 Deciding Where to Locate your Pellet Appliance...6 Removing Pellet Stove From Pallet...6 Dimensions & Specifications...7 Clearances to Combustibles...8 Alcove Clearances...8 Vent Termination Requirements...9 Exhaust And Fresh Air Intake Locations...10 Outside Fresh-Air Connection...10...
  • Page 3: Safety Warnings & Recommendations

    To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An ENVIRO dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions.
  • Page 4 CLEANING: There will be some build up of fly ash and small amounts of creosote in the exhaust. This will vary due to the ash content of the fuel used and the operation of the stove. It is advisable to inspect and clean the exhaust vent semi-annually or every two tons of pellets.
  • Page 5: Save This Instruction Manual For Future Reference

    It is very important to ensure that the exhaust system be sealed and airtight. The ash pan and viewing door must be locked securely for proper and safe operation of the pellet stove. Do not burn with insufficient combustion air. A periodic check is recommended to ensure proper combustion air is admitted to the combustion chamber.
  • Page 6: Installation

    3. Do not install the stove in a bedroom. 4. You can vent the stove through an exterior wall behind the unit or connect it to an existing masonry or metal chimney (must be lined if the chimney is over 6” (15 cm) diameter, or over 28 inches² (180 cm²) cross sectional area).
  • Page 7: Dimensions & Specifications

    & S IMENSIONS PECIFICATIONS Classification Class I IP-20 Voltage 220 - 240 V Maximum Power Requirement 525W (1793 BTU/hr) Maximum Flue Gas Temperature 230°C (446°F) Nominal Heat Output 6.9 KWh (23544 BTU) Reduced Heat Output 2.3 KWh (7848 BTU) at Nominal Output 8.16% at Reduced Output 4.142%...
  • Page 8: Clearances To Combustibles

    In Front of unit 800mm (311⁄2” inches) This pellet stove requires floor protection. The floor protection must extending beneath the stove the full width and depth of the unit including 150mm (6“) in front for ember protection. Hearth Pad Size: Width: 650 mm (25 5⁄8”)
  • Page 9: Vent Termination Requirements

    ERMINATION EQUIREMENTS IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER. Table 2: Use in conjunction with Figure 5 for allowable exterior vent termination locations. Letter Minimum Clearance 24 in (61 cm) 48 in (122 cm)
  • Page 10: Exhaust And Fresh Air Intake Locations

    XHAUST RESH NTAKE ” ” (214 mm) (112 mm) ” (216 mm) Figure 6: Inlet and Outlet Location. EXHAUST Base of unit to center of flue Side of unit to center of flue Center of unit to center of flue FRESH AIR INTAKE.
  • Page 11: Corner Through Wall Installation

    2. Install a non-combustible hearth pad (where necessary). 3. Place the appliance 375 mm (15”) away from the wall. If the stove is to be set on a hearth pad, set the unit on it.
  • Page 12 9. Push the stove straight back, leaving a minimum of 100mm (4”) clearance from the back of the stove to the wall. Seal the vent pipe to the thimble with high temperature silicone. 10. The pipe must extend at least 30 cm (12”) away from the building.
  • Page 13: Vertical Rise With Horizontal Termination Installation (Recommended)

    (or stainless steel termination hood). Installation to use if there is a concrete or retaining wall in line with exhaust vent on pellet stove. The termination must be 305mm (12”) from the outside wall and 305mm (12”) above the ground.
  • Page 14: Inside Vertical Installations

    ERTICAL NSTALLATIONS 1. Choose a stove location that is ideal. See the section “D 2. Place a non-combustible hearth pad where necessary. 3. Place the unit on the hearth pad (if installed on a carpeted surface) and space the unit in a manner...
  • Page 15: Outside Vertical Installations

    UTSIDE ERTICAL NSTALLATIONS To accomplish a outside vertical pipe installation, follow steps 1 through 5 in the “I ” section and then finish it by performing the following (refer to Figure 14). REESTANDING 1. Install a tee with clean out on the outside of the house. 2.
  • Page 16: Hearth Mount Installation

    Vertical Vent Pipe (single wall stainless flex pipe or solid PL vent) Flexible Vent Connector (use this 1.5m (5ft) section of pipe to vent past the fireplace damper or smoke shelf) Fireplace Damper Location Clean Out Tee Existing Fireplace ENVIRO Windsor...
  • Page 17: Installation With Exterior Mounted Exhaust Blower

    Choose a location for your stove that meets the requirements stated in this manual and allows installation with the least amount of interference to house framing, plumbing, wiring, etc.
  • Page 18 9. Connect the wires in the stove. Re-install the left side access cover to the stove and the back grill on the exterior vent housing. 10. Set the Slider Damper as described in the I NOTE: Ensure that all vent connections are installed by placing three (3) screws evenly spaced and a small bead of high temperature silicone at each chimney connection.
  • Page 19: Through Wall Vertical Installation With Exhaust Blower

    HROUGH ERTICAL NSTALLATION Refer to I NSTALLATION NSTALLATION WITH . Ensure that vent pipe is properly secured to wall using wall straps. Maintain clearances to NSTALLATIONS combustibles on vent pipe as well as unit. Rain cap - ensure cap is at least 900mm (3 ft) above the roof at the lowest point...
  • Page 20: Thermostat Installation

    Heat Indicator. If the heat in the room becomes to great, the high limit switch may turn the stove off and the switch will have to be manually reset. To reset the high limit switch, remove the right cabinet side.
  • Page 21: Installation

    The combustion exhaust blower is a variable speed blower controlled by the heat output button. This blower will decrease the vacuum pressure inside the stove and as the heat output button is turned down. The vacuum pressure inside the firebox will increase as the combustion exhaust blower increases in speed (higher heat output setting).
  • Page 22: Troubleshooting

    DO NOT: ● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly. Only qualified technicians should deal with possible internal electrical failures. ● Do not remove from the firebox any screws without penetrating oil lubrication.
  • Page 23 Magnahelic Gauge (readings must be above 0.18” to 0.20” W.C. (44.8 to 49.8 Pa) on low fire). If the motor fails to reach a 0.10” W.C. readings, then replace the combustion blower. üPoor quality fuel – insufficient energy in the fuel to produce enough heat to keep the stove burning or operational.
  • Page 24 üSet the auger trim till the #1 and #5 lights are illuminated. b) If the stove goes out and there are partially burned pellets left in the burn pot liner, the stove has shut down due to a lack of air, exhaust temperature, or power failure.
  • Page 25: Wiring Diagram

    Wiring Diagram Optional Exterior Exhaust Blower Thermostat 5 Amp Fuse Black White Orange Orange Purple Blue Yellow Grey Grey Brown Brown Connect Thermostat Here Armor Cable Supplied Black White White Combustion Blue Blower Ground Brown Blue 240V Filter Ground Brown Exhaust Temperature Sensor...
  • Page 26: Parts List - Components

    Parts List - Components Reference Description Number 120 °F (49 °C) Ceramic Fan Temperature Sensor Auger Motor - 220V High Limit Temp Sensor 200 °F (93 °C) Manual Reset Silicone Hose External Exhaust Back External Exhaust Box External Exhaust Bottom NZ Power Cord - 220V IEC Power Cord - 220V Ignitor - 220V...
  • Page 27 Parts List - Components Reference Description Number Auger Motor Mount Auger Plate with bushing Auger Mounting Hardware IEC Power Cord Inlet Socket Hinge Pin - Silver Oval Ceramic Gasket Circuit Board 5 Amp Fuses - 220V (Pair) Exhaust Starter Tube 80mm x 21⁄2” Long Combustion/ Exhaust Blower - 220V Door Bolt, Hardened Bushing &...
  • Page 28: Parts List - Cast

    Parts List - Cast Reference Description Number Cast Ash Shelf - Painted Cast Front Complete (Doors & Ash Shelf) - Painted Cast Side Left - Painted Cast Side Right - Painted Cast Grate - Painted Cast Top Only (No Grate) - Painted Complete Cast Body - Painted Complete Cast Body - Antique White Complete Cast Body - Diamond Black...
  • Page 29: Parts Diagram - Components

    Parts Diagram - Components...
  • Page 30: Parts Diagram - Steel & Cast

    Parts Diagram - Steel & Cast...
  • Page 31: Installation Data Sheet

    6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 NAME OF DEALER: _________________________________________ ADDRESS: _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ NAME OF INSTALLER: _________________________________________ (dd/mm/yyyy) ADDRESS: (dd/mm/yyyy) _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. www.enviro.com May 16, 2007 C-11304...
