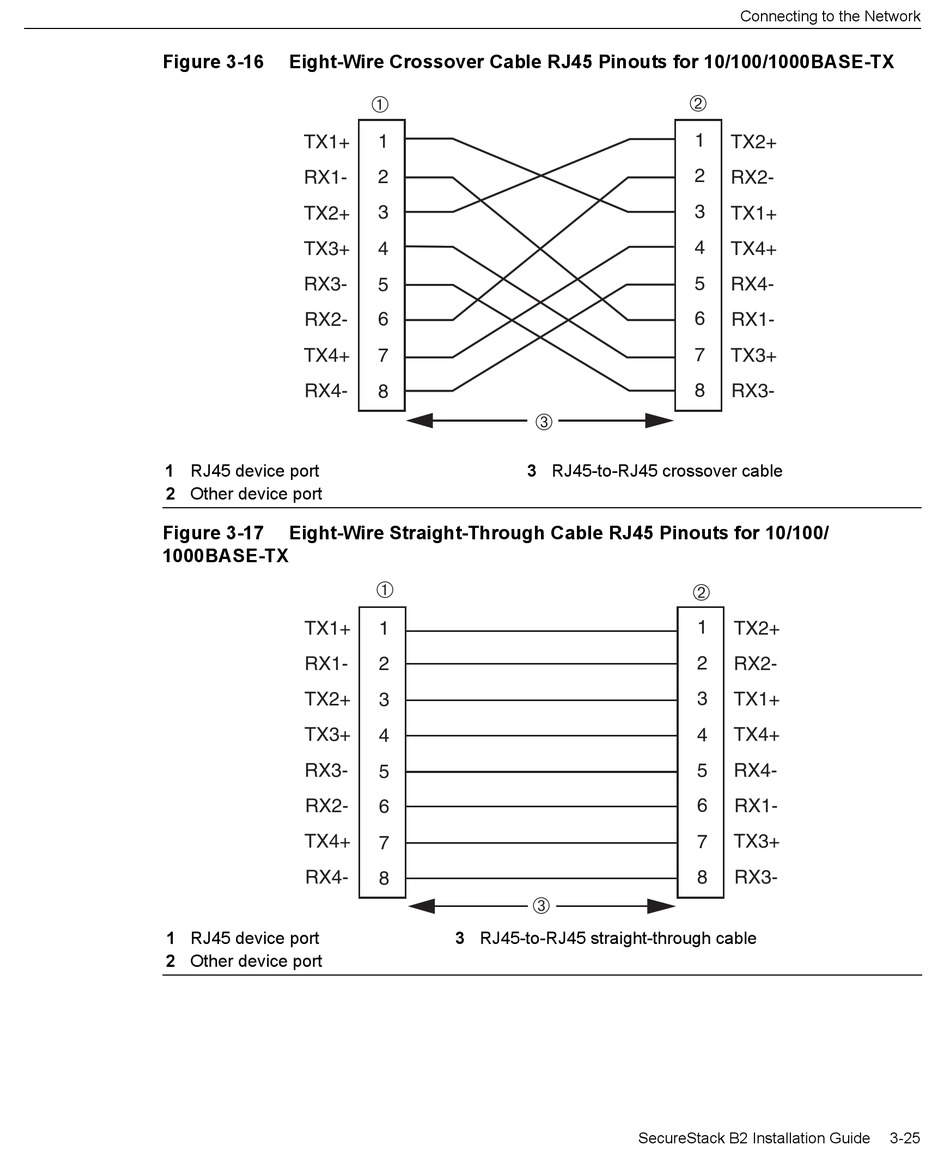

Figure 3-16
Eight-Wire Crossover Cable RJ45 Pinouts for 10/100/1000BASE-TX
1 RJ45 device port
2 Other device port
Figure 3-17
Eight-Wire Straight-Through Cable RJ45 Pinouts for 10/100/
1000BASE-TX
1 RJ45 device port
2 Other device port
À
Â
3 RJ45-to-RJ45 crossover cable
À
Â
3 RJ45-to-RJ45 straight-through cable
Connecting to the Network
Á
Á
SecureStack B2 Installation Guide
3-25
