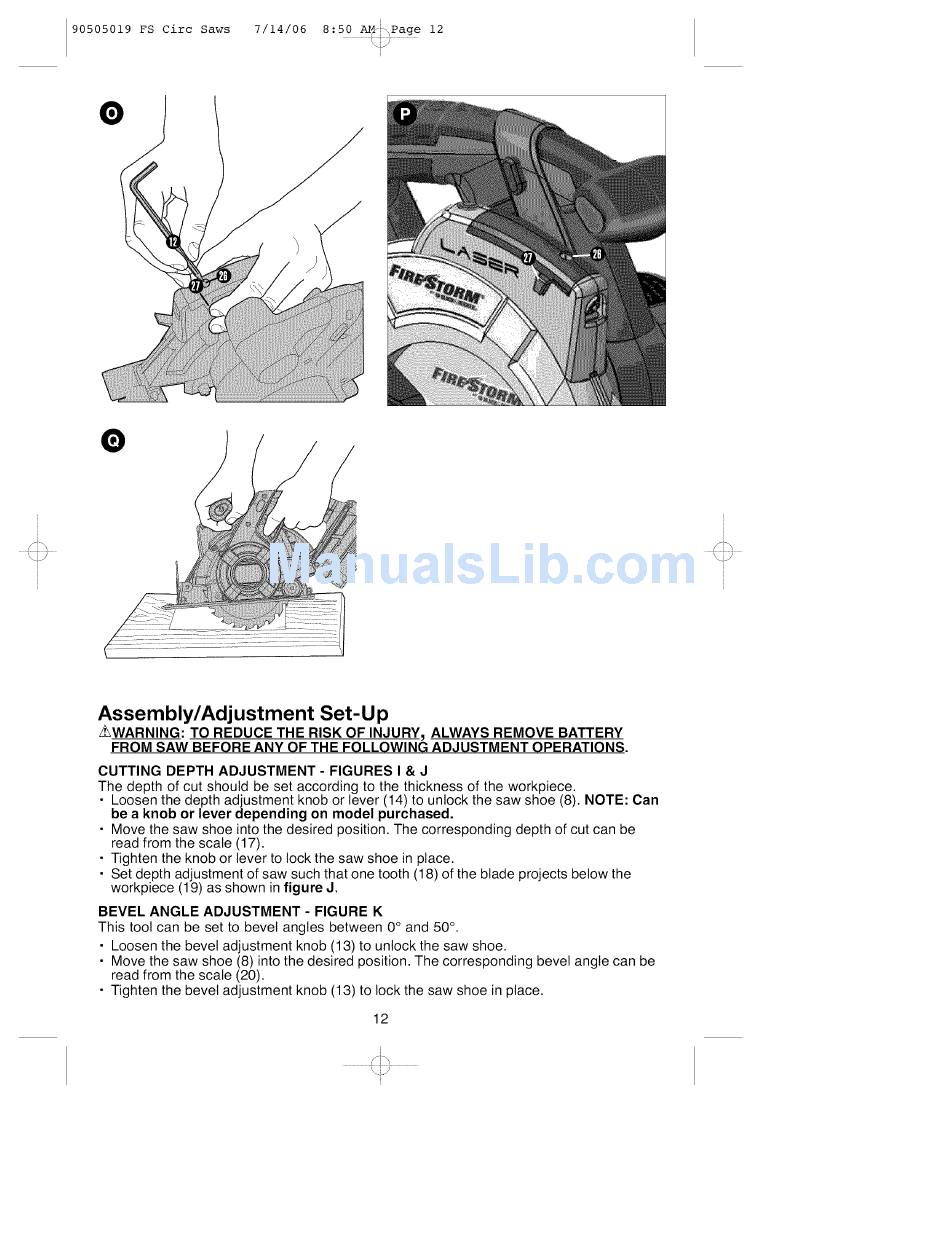

Assembly/Adjustment Set-Up
_WARNING: TO REDUCE THE RISK OF INJURY_ ALWAYS REMOVE BATTERY
FROM SAW BEFORE ANY OF THE FOLLOWING ADJUSTMENT OPERATIONS.
CUTTING DEPTH ADJUSTMENT - FIGURES I & J
The depth of cut should be set according to the thickness of the workpiece.
• Loosen the depth adjustment knob or lever (14) to unlock the saw shoe (8). NOTE: Can
be a knob or lever depending on model purchased.
• Move the saw shoe into the desired position. The corresponding depth of cut can be
read from the scale (17).
• Tighten the knob or lever to lock the saw shoe in place.
• Set depth adjustment of saw such that one tooth (18) of the blade projects below the
workpiece (19) as shown in figure J.
BEVEL ANGLE ADJUSTMENT - FIGURE K
This toot can be set to bevel angles between 0° and 50 °.
• Loosen the bevel adjustment knob (13) to unlock the saw shoe.
• Move the saw shoe (8) into the desired position. The corresponding bevel angle can be
read from the scale (20).
• Tighten the bevel adjustment knob (13) to lock the saw shoe in place.
