Liebert GXT2-10KIPPCBL
1.
Disconnect the Liebert GXT2-10000RT208™ from all electri-
cal inputs.
2.
Remove the top cover from the terminal block cover on the
rear of the UPS. Set all screws aside for reinstallation.
3.
Use a screwdriver or similar tool to remove the knockout.
4.
Slip the locknut onto the input power cable.
5.
Thread the input power cable through the knockout hole.
6.
Slip the fixed ring onto the input power cable.
7.
Connect the wires of the input power cable to the input
power terminal block of the UPS according to the labels on
the wires (see Connect cable wires, below).
8.
Each wire must be connected to the corresponding location
on the input side of the terminal block.
9.
Reattach the terminal block cover to the Liebert GXT2-
10000RT208 using screws removed in Step 2.
10.
Leave a small amount of slack in the input power cable
inside the terminal block and secure the cable to the
terminal block with the fixed ring and locknut (see Secure
cable to back cover, below).
11.
Reattach the top cover to the terminal block using screws
removed in Step 2.
12.
Check the voltage of the input power supply to ensure that
it matches the power requirements of the Liebert GXT2-
10000RT208.
13.
If the input power is correct, shut off power to the supply
socket and mate the UPS to the socket.
L2
N
L1
OUTP UT
L2
N
Wires are labeled
®
Quick-Start Guide
Connect cable wires
L2
N
L 1
6 0 Amp Ma x Bra n ch
INP UT
Ove rcu rre n t Pro te cti o n
G
L1
Reattach terminal
block cover
Warnings
& Cautions
This input power cable
must be installed only
by properly trained and
qualified personnel.
Opening or removing
the cover of the UPS
may expose you to lethal
voltages within this unit
even when it is appar-
ently not operating and
the input wiring is dis-
connected from the elec-
trical source. Observe all
cautions and warnings
in this quick-start guide
and in the user manual
for the UPS, available
at the Liebert Web site,
www.liebert.com
Failure to do so may re-
sult in serious injury or
death.
Secure cable to back cover
™
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Emerson Liebert GXT2-10KIPPCBL
Summary of Contents for Emerson Liebert GXT2-10KIPPCBL

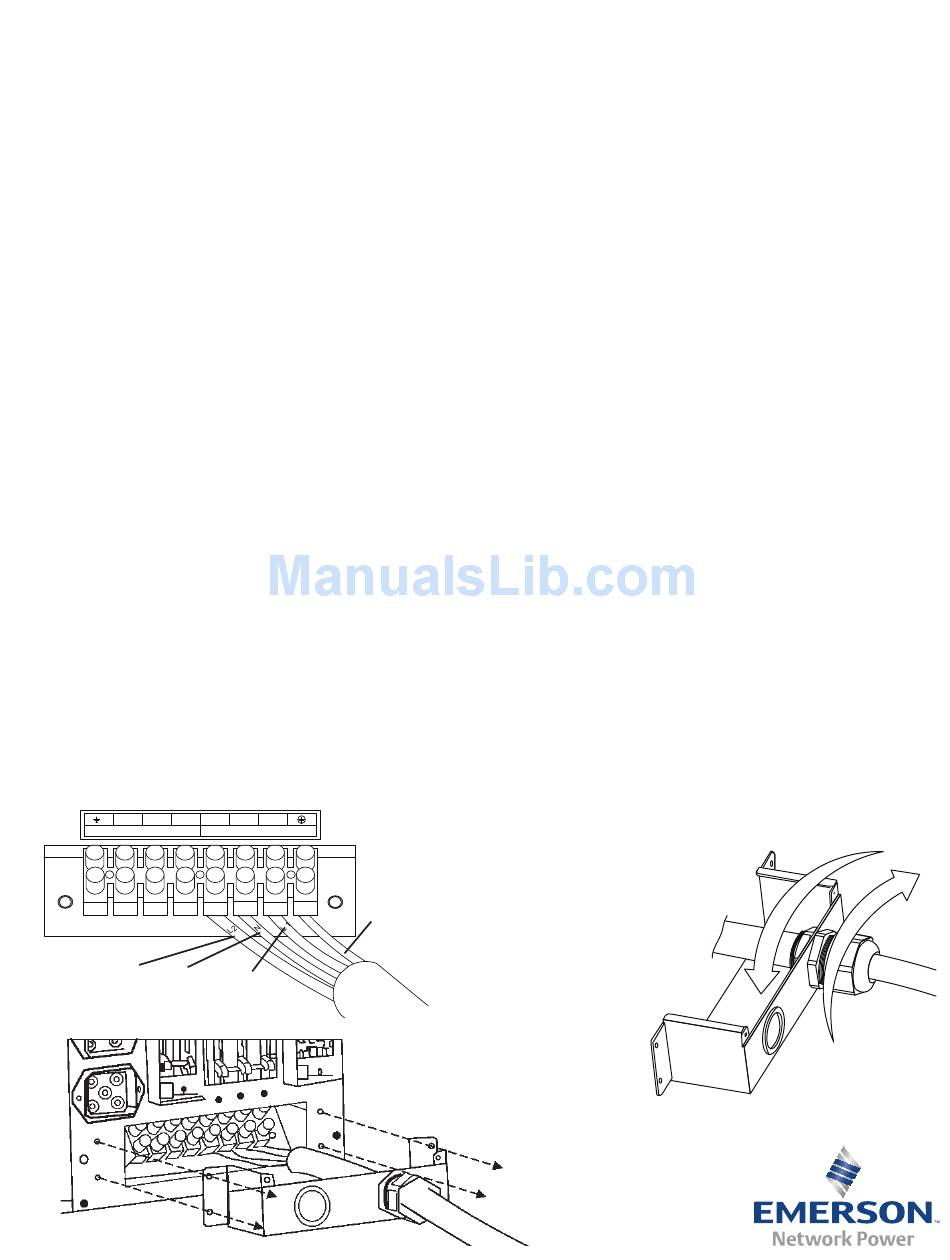

- Page 1 Liebert GXT2-10KIPPCBL ™ ® Quick-Start Guide Warnings Disconnect the Liebert GXT2-10000RT208™ from all electri- cal inputs. & Cautions Remove the top cover from the terminal block cover on the rear of the UPS. Set all screws aside for reinstallation. This input power cable Use a screwdriver or similar tool to remove the knockout.
