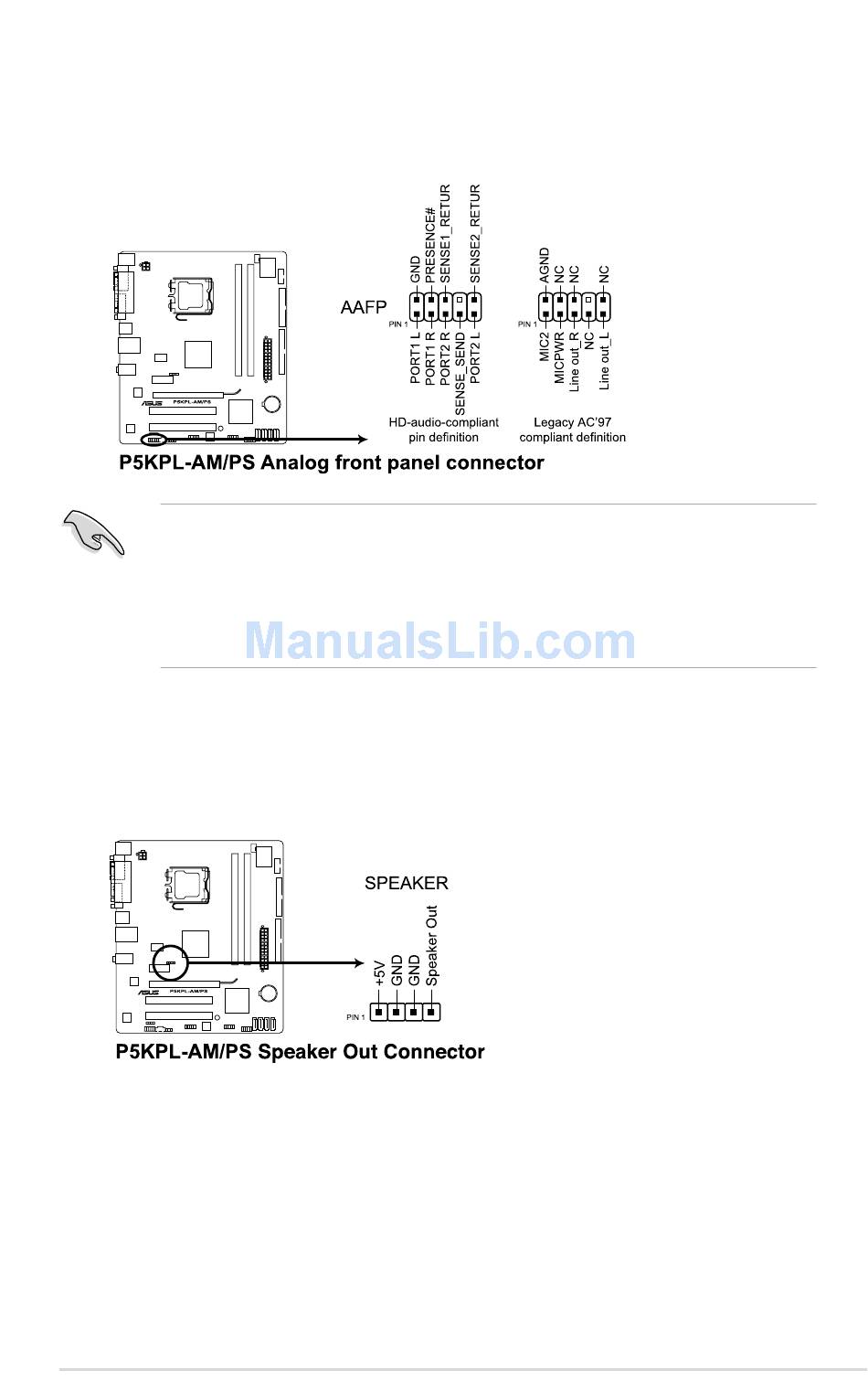

9. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
• We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard's high-definition audio capability.
• If you want to connect a high-definition front panel audio module to this connector, set
the Front Panel Support Type item in the BIOS setup to [HD Audio]. If you want to
connect an AC'97 front panel audio module to this connector, set the item to [AC97]. By
default, this connector is set to [HD Audio]. See section 2.4.4 Chipset for details.
10. Speaker connector (4- pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
