4. Carefully remove the heatsink and fan
assembly from the motherboard.
5. Rotate each fastener clockwise to ensure
correct orientation when reinstalling.
1.7

System memory

1.7.1

Overview

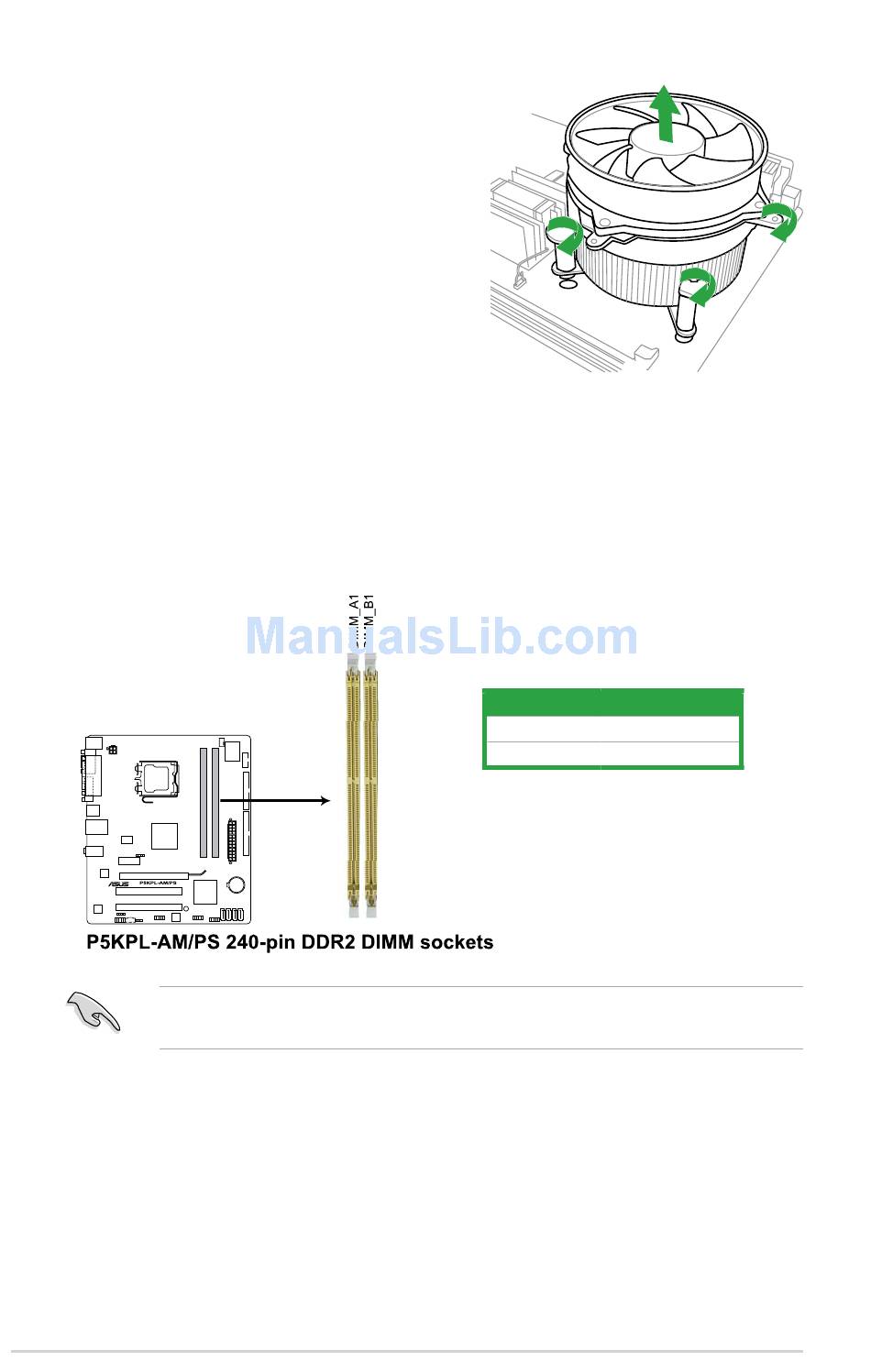

The motherboard comes with two Double Data Rate 2 (DDR2) Dual Inline Memory Modules
(DIMM) sockets. The figure illustrates the location of the DDR2 DIMM sockets:
Install a memory module in DIMM_A1 slot to support the Intel
and for optimum performance.
1-12
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1
